MXF baked LUT color problems - Filter Offline (Sony RAW MXF Source Settings)

Forum|Forum|4 years ago
November 27, 2021
6 replies
5375 views

I'm editing a video with Sony Venice .MXF footage and for some reason I don't see the master effect drop down menu that allows you to choose a log other than rec 709 LUT.

I also can't modify - interpret footage and color override.

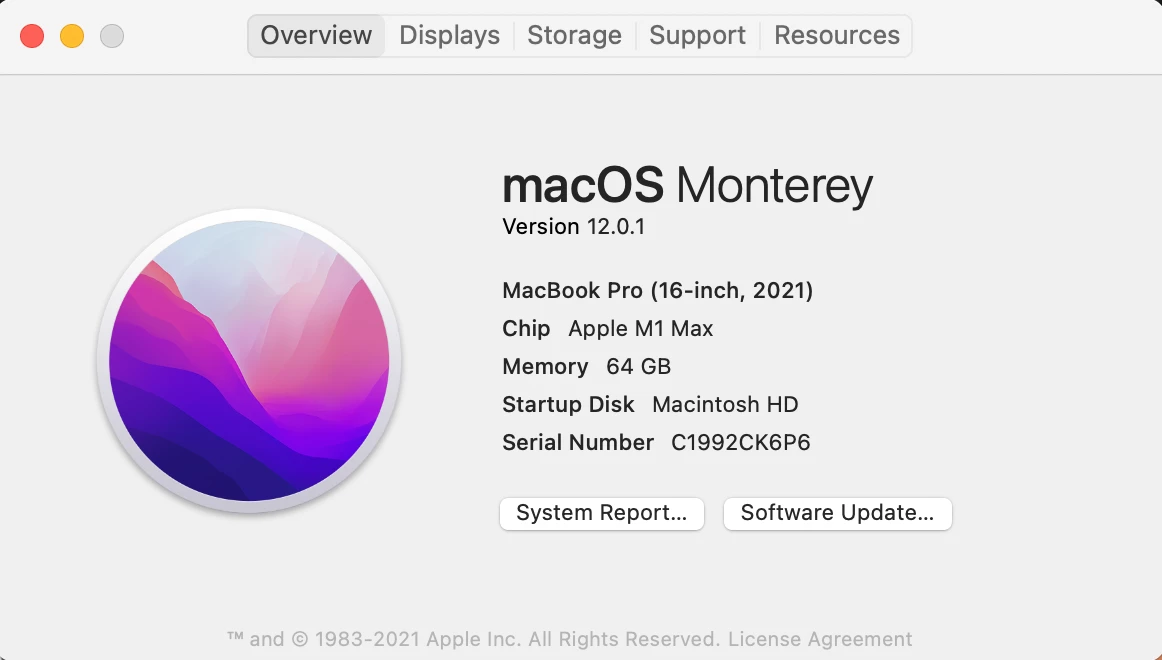

Not sure if it's because i'm using the new Macbook Pro 2021 16inch (specs attached) and updated my software but let me know if there is a way to troubleshoot.

The drop down "Sony RAW MXF Source settings" works perfectly fine on my older computer so truly confused why it says it's offline on my new laptop.

This topic has been closed for replies.

Correct answer nicke44351964

I recently ran into this same issue and after scratching my head a bit and trying running premiere in Intel mode (as suggested in the replies - which did work!) I also found in M1 PP2022, while the source tab in the Effect Controls panel is sadly empty, what you can do is find your footage in the Project panel, right click on it, and instead of going Modify>Interpret Footage... as you would with ARRI footage, click on Source Settings... For me this brings up a window allowing me to select the colour space for the footage. Hope this helps someone else.

I

Ishanbhatt1732

Participant

I have just run into the same exact problem,

how can i get sony raw mxf source settings ?

R Neil Haugen

Legend

Are you on an M series Mac?

Everyone's mileage always varies ...

N

nicke44351964Correct answer

Participant

I recently ran into this same issue and after scratching my head a bit and trying running premiere in Intel mode (as suggested in the replies - which did work!) I also found in M1 PP2022, while the source tab in the Effect Controls panel is sadly empty, what you can do is find your footage in the Project panel, right click on it, and instead of going Modify>Interpret Footage... as you would with ARRI footage, click on Source Settings... For me this brings up a window allowing me to select the colour space for the footage. Hope this helps someone else.

J

jeffrey_tholen

Participant

Seconded! This is a great solution. Thank you.

@chazs25187119, if you are still active, perhaps you can select this as the Correct Answer so it lives at the top of the page...?

D

Drew5FEF

Participant

I have just run into the same exact problem, so here I am.
Working with the latest versions of Pr 22 and Sony MXF footage, but moved to a new 2021 MacBook Pro 16" mid project (from an older iMac Pro).

The source effects says 'offline' just like yours, and the Lumetri color effects I originally adde to grade the footage (that live on the clip itself) make it look over saturated and blown out. There is no change when I turn the offline source effect on or off. Also modify>interpert footage has the color management section greyed out.

Looks like I will be re-color grading all the shots from scratch.

D

Drew5FEF

Participant

Follow up... Also what makes this weird, is that even though the filter that says it is offline when you're looking at the source clip. And even when you make sure it is off - it is still doing something. My sony footage should actually be flat as flar can be, but it is only showing me a verion where the colors are somewhat blown out.

I may need to go back to the old iMac Pro to render this project out.

R Neil Haugen

Legend

It sounds like it's treating this like some other Sony and Panny media ... misreading the log-encoded clip as being HLG/HDR ... and still not giving the clip the color management options in the Modify/Interpret Footage box.

Worst of both worlds ... improper treatment of media, AND won't allow CM options to get it treated properly.

This is acknowedged by the engineers, some month or two back. And we're awaitin a fix.

Neil

Everyone's mileage always varies ...

Warren Heaton

Community Expert

That's a 3rd party filter from Sony, isn't it? If so, it needs to be installed when you configure a new workstation.

If you don't find it here, reach out to Sony Profeessional Support:

Software & Downloads - Sony Pro

R Neil Haugen

Legend

The new rig is an M1, I'm wondering if that's it. The old one ain't, right?

There are a couple glitches with M1s I think. I'll try and get an answer for this ...

@mattchristensen ... are you free? We need an answer for this puzzlement.

Neil

Everyone's mileage always varies ...

R Neil Haugen

Legend

They've changed a LOT of the color managment practices in the new 2022 version. I've got a FAQ I put together after working with a lot of clips from various other users here and my own media, I would recommend going through this ...

FAQ: PremierePro 2022 Color Managment for Log/RAW Media

Check the clip in the bin, as that is a main place for handling this from now on. Select one or more clips, right-click/Modify/Interpret Footage.

At the bottom there will be color management settings, and I would guess that is where they've gone for your media.

Another option is when a clip is on a timeline, going to the Effects Control Panel (ECP) and checking the Source tab. For say BRAW, RED, and most Arri media, that is where the full panel of settings for that format "live".

The Sony Venice may have a panel there also. And ... just to add ... not that I'm drooling about you're having Venice media to work or anything like that ... 😉

Neil

Everyone's mileage always varies ...

C

chazs25187119Author

Participating Frequently

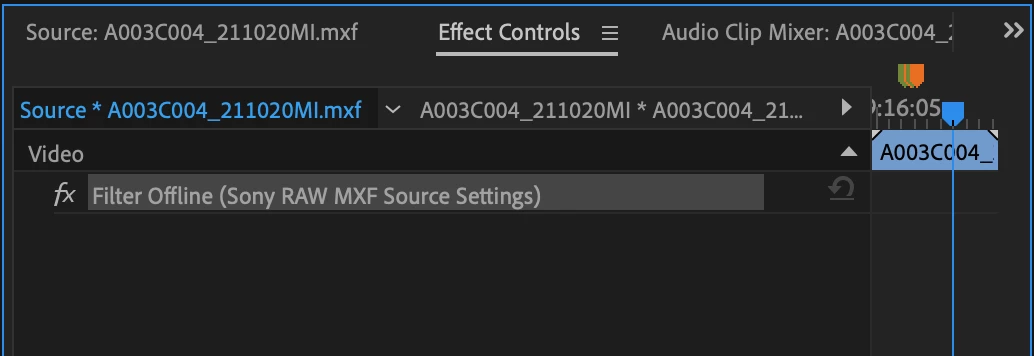

Unfortunately I've tried those things. As you can see in the screenshot attached - it says the filter is offline which is strange.

I've been dealing with Arri and Sony footage for awhile now.
