Proxy slightly out of sync with original

  • January 22, 2019
  • 2 replies
  • 6947 views

Hi, when creating proxies, I noticed that after toggling the proxy button the footage is always 1 or 2 frames out of sync with the original.

Is there a way of manually tweaking this? Say, adding an offset when ingesting or something

Using Premiere 12.1.0 on a mac

Thanks

This topic has been closed for replies.

2 replies

calumj57023103
calumj57023103
Participant
October 25, 2021

Just came here becasue I was having a similar issue.



Created Proxies and they weren't syncing up with the actual footage when I toggled in the program monitor.



I have just solved my issue, maybe it will solve yours.



I had created my proxies on 50fps footage. I'd then Time Interoplated it to 25fps whilst dropping it onto the timeline, turn proxies on and footage was out of sync.



Instead of Inteptiting your footage, use Spwed & Duration to correct your fps and ripple edit in the menu, that way your proxies stay in sync.



Sorry if this seems a bit obvious

Jeff Bugbee
Community Expert
Jeff BugbeeCommunity Expert
Community Expert
January 22, 2019

Your proxy FPS probably does not match your source. Manually create a proxy preset in Media Encoder and recreate your proxies.

B
bashi-bazoukAuthor
Inspiring
January 22, 2019

Thanks for your reply. I've tried creating proxies numerous ways: Internally in Premiere, Media Encoder and using FFMPEG in terminal. They rarely match.

Here are the specs of the movs, the only real difference is bitrate;

IMG_9157.MOV

Size: 53.5 MB

Format: QuickTime/MPEG-4/Motion JPEG 2000 format

Stream count: 2

Duration: 00:00:10

Bit rate: 44879 kb/s

Meta info:

    compatible_brands: qt

    minor_version: 512

    encoder: Lavf58.20.100

    major_brand: qt

Stream 0

Type: video

Codec: h264

Codec profile: High

FourCC: avc1

Duration: 00:00:10

Width: 3840

Height: 2160

Sample aspect ratio: 1:1

Display aspect ratio: 16:9

Pixel format: yuv420p

Frame rate: 30 fps

Bit rate: 44816 kb/s

Meta info:

    handler_name: DataHandler

    language: eng

Stream 1

Type: audio

Codec: aac

FourCC: mp4a

Duration: 00:00:10

Bit rate: 90 kb/s

Sample rate: 44100 Hz

Sample format: s16

Channel: 1

Meta info:

    handler_name: DataHandler

    language: eng

Proxy:

IMG_9157_proxy.MOV

Size: 1.4 MB

Format: QuickTime/MPEG-4/Motion JPEG 2000 format

Stream count: 2

Duration: 00:00:10

Bit rate: 1202 kb/s

Meta info:

    compatible_brands: qt

    minor_version: 512

    encoder: Lavf58.20.100

    major_brand: qt

Stream 0

Type: video

Codec: h264

Codec profile: High

FourCC: avc1

Duration: 00:00:10

Width: 600

Height: 338

Sample aspect ratio: 1:1

Display aspect ratio: 300:169

Pixel format: yuv420p

Frame rate: 30 fps

Bit rate: 1002 kb/s

Meta info:

    handler_name: DataHandler

    language: eng

Stream 1

Type: audio

Codec: aac

FourCC: mp4a

Duration: 00:00:10

Bit rate: 192 kb/s

Sample rate: 44100 Hz

Sample format: s16

Channel: 1

Meta info:

    handler_name: DataHandler

    language: eng

Jeff Bugbee
Community Expert
Jeff BugbeeCommunity Expert
Community Expert
January 22, 2019

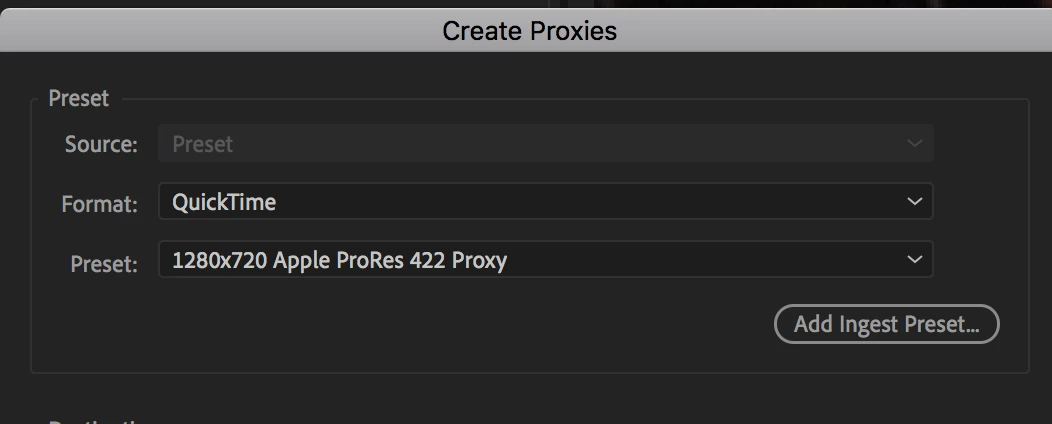

Right click the clip in your project, choose Proxy - Create Proxies.

Select this option:

Let Media Encoder do it's thing. Toggle proxies. Are they out of sync?

I ask because I've make a ton of proxies and I've never seen them get out of sync.I'm trying to make sure your proxies match the ratio of your footage as a mismatch will add pillar boxing which can be misidentified as out of sync.
