Trying to create interlaced effect from 60i footage; help with export settings/resolution

  • May 18, 2024
  • 1 reply
  • 1656 views

I've extracted some 60i footage from my Sony Handycam HDR-CX150 that records AVCHD (.MTS) files. I believe it records in 1440x1080 and it stretches it out to a vertical 1920x1080 resolution with a 1.333 pixel aspect ratio. I am importing my footage into Premiere Pro 2024 and I want to upload it to Youtube, with an intentional interlacing effect.

My bigger problem is that I want to extract the interlacing effect from this footage and make it viable (such as the video seen here). So, I interpreted my footage as Progressive Scan (instead of Upper Fields, which would get rid of the interlacing lines) and in my sequence I changed Upper Field First (which would have done the same thing as said before) to Progressive Scan. (below)

It seems to do the trick, but the problem is that when it is full screen, the interlaced lines are too thin (pixel-by-pixel on and off) and they kind of destroy my exported video into a mush of crushed bitrate. (below)

I looked at the preview screen of my export window for the crushed footage, and it looked EXACTLY how I wanted it to; the lines weren't too thin, but not too thick either. (below)

So then I got the idea of exporting my footage as a smaller resolution, so that the lines may become thicker and the effect will be less harsh. But for some reason, when I export it (say, at 1080p) and open it in preview, the interlaced lines almost look greyed out and not at full opacity, which tells me I'm doing something wrong with changing my resolution. (below)

Perhaps I'm supposed to export at some specific resolution that gives me those desired lines I saw in the preview? Looking for answers. Thanks!

This topic has been closed for replies.

1 reply

Warren Heaton
Community Expert
Community Expert
May 18, 2024

The "crushed footage" look that you're liking is the apperance of the interlaced footage being scaled to fit the Program panel.  We'd usually set the settings to Display First Field or Display Second Field to avoid it when cutting at 1080i.

I'd screen record the playback of Premiere Pro, then use After Effects to crop out to the picture in that recording and then scale it to 1080p for use in your edit.



Participant
May 18, 2024

Thanks for the reply. So is there no way to straightforwardly get those lines in an export (i.e. is a screen recording my only way out of this)? This just seems sort of impractical, and I'm worried that the quality from the screen recording compared to the export is drastically low. I've measured the pixel height of the preview window, and I've tried to export my video at that resolution, but it doesn't seem to work the same. Is there something the preview window is doing that the downscaling resolution is not?

Warren Heaton
Community Expert
Community Expert
May 18, 2024

The interlaced fields should always render correctly regardless of what the Source panel or Program panel looks like.  As you've noticed, too thin for what you are looking for.



Try the Venetian Blinds effect.

Duplicate the video clip above itself in the Timeline.



Nudge the duplicate a few frame left or right so that it is playing a few frames earlier or later than the original below it.

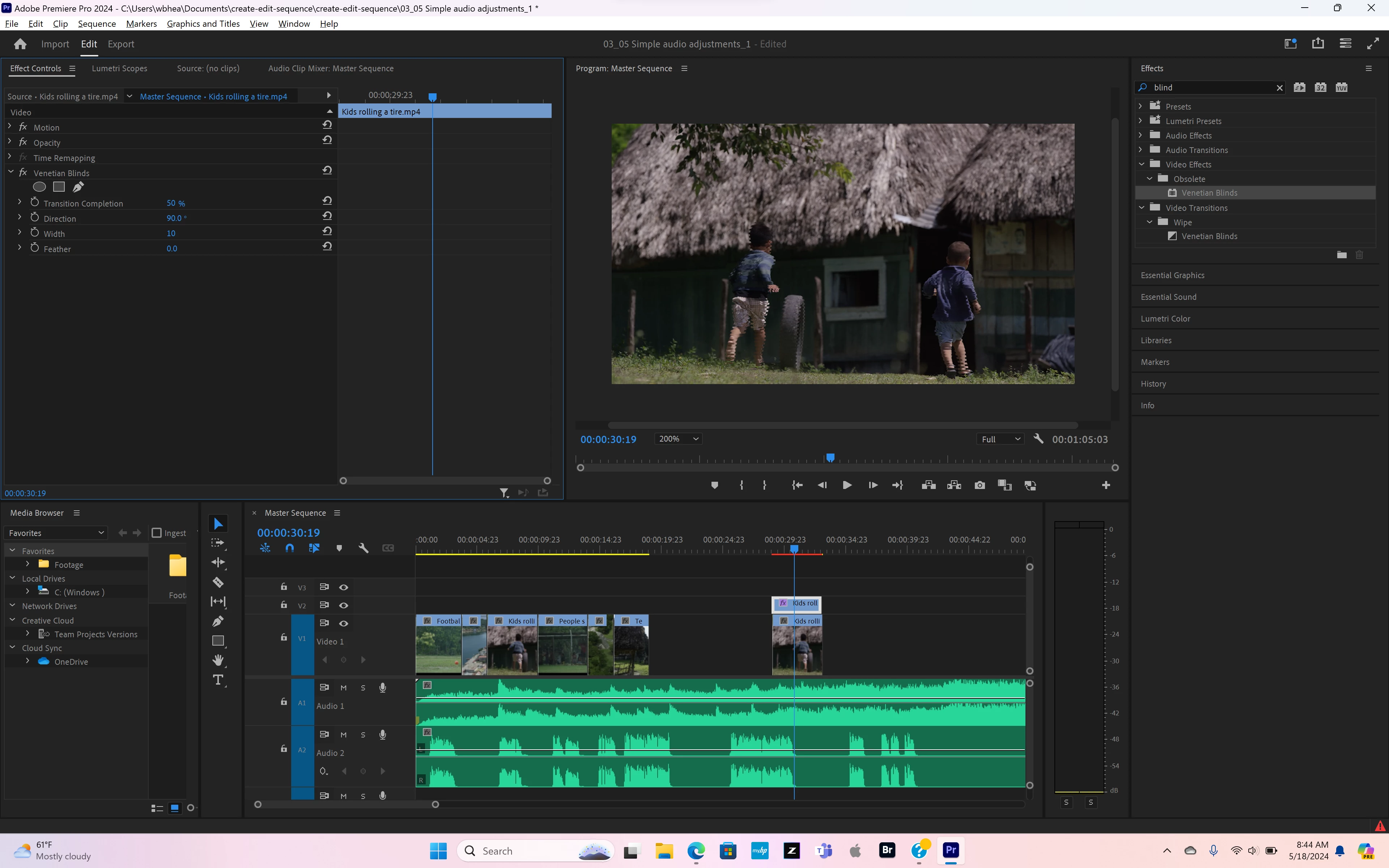

Apple Venetian Blinds (Effects > Video Effects > Obsolete > Venetian Blinds) to the duplicate and set the Effect parameters as follows:

  • Transition Completion: 50%
  • Direction: 90 degrees
  • Width: 10 to 20
  • Feather: 0



Make sure that the Program magnification is at 100% while making the adjustments.



I think between adjusting Width and maybe also Feather you should get close to what you are describing.
