WARNING: If you rely on exporting captions for broadcast....

Forum|Forum|4 years ago
March 18, 2021
5 replies
2958 views

.mxf OP1a exports with embedded 608 or 708 captions is NOT working. Master control sees the captions flag, but no captions. This WILL BLOW UP YOUR TV SHOW if you're not careful. As a workaround, I exported a ProRes 422 HQ file and captioned it as per usual in 14.9. Thank God. Of course now I have to suffer with the grief of having two versions on my machine... but it's better than running color bars in my time slot. Lord.

Export

This topic has been closed for replies.

R

ryand35800604

Participant

Apologies for reviving a long-dormant thread, but I'm experiencing a very similar issue in Premiere Pro 2022.

After exporting my MXF OP1a, I can import the clip back into the project, and I see that the captions are embedded. But the network sees no caption information once it hits their server. They told me they're using Carbon Coder to flip all their files... and they also receive files from other vendors who successfully provide captioned programs.

I've exported both 608 & 708. Always export MXF OP1a (XDCAM 50 NTSC 422).

Windows 10

No Export Effects

Any developments on this front?

Tom LaysonAuthor

Known Participant

My problem has been resolved a couple of updates ago - but I can't tell you
why. I'm actually self-captioning my show now the tool is so good...
finally. So I've kinda' left this behind.

Tom Layson
(PII removed by moderator)

carlw86156958

Participating Frequently

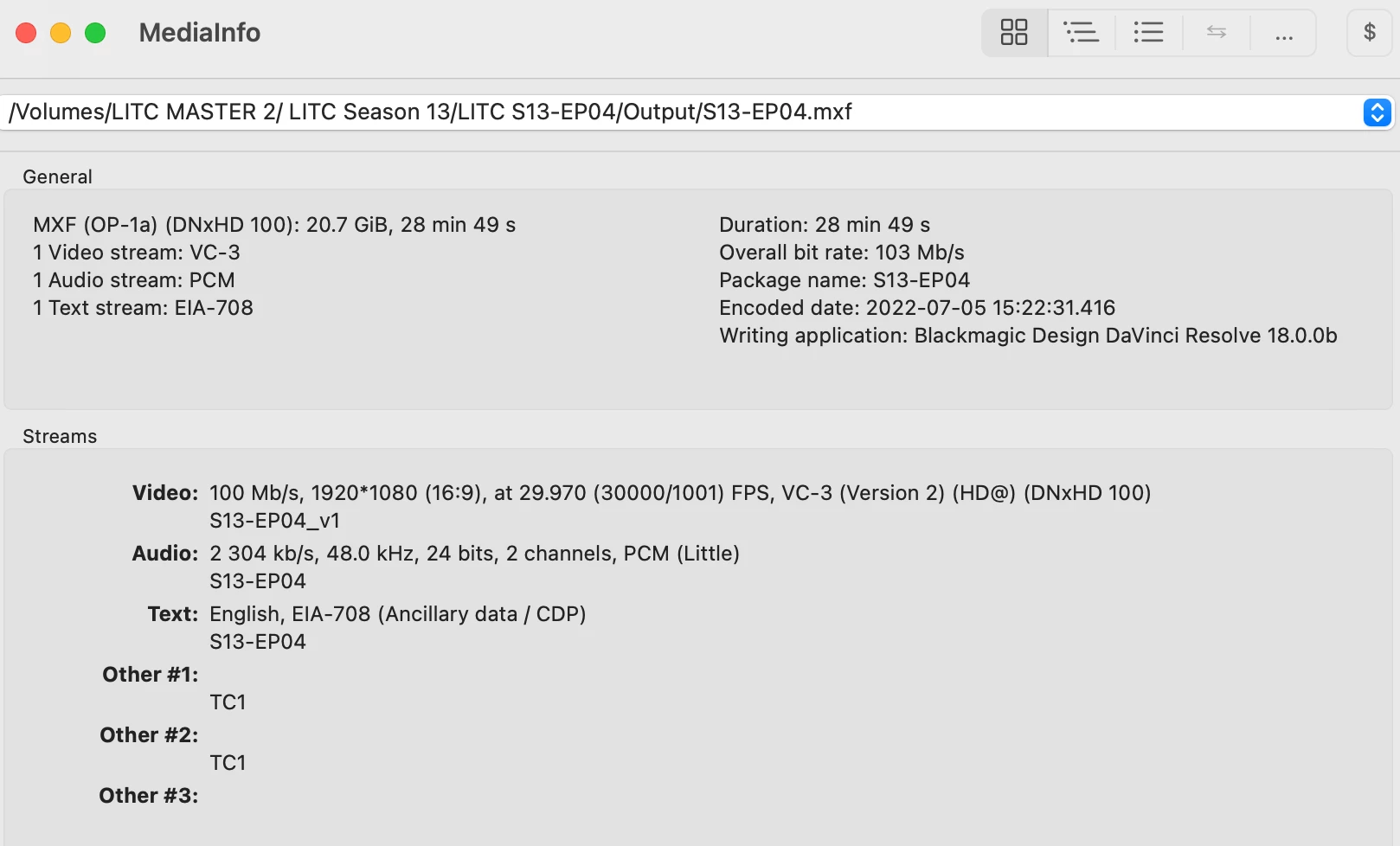

There is a really awesome app called MediaInfo. It will show you your file and if the CC is embedded. It's $2.99 for one year and $7.99 for a lifetime subscription. https://mediaarea.net/en/MediaInfo

T

Trent Happel

Community Manager

By any chance are you using any of the effect options under the Effects tab in the Export Settings? We do have an open issue with effects applied via Effects tab in Export Settings (eg: Time Tuner, Video Limiter, etc.), that we are working on. A possible workaround is to apply the effect(s) in your Timeline, rather than Export Settings (eg: apply effect(s) to Adjustment Layer in Timeline)

One other open issue we are working on involves Sequences with non-standard frame rates (eg: Variable Frame Rate, 23.98 fps instead of 23.976, etc.). Possible workaround is to create Sequence with one of the available Timebase fps options or use one of the supplied Sequence presets.

Tom LaysonAuthor

Known Participant

No effects upon export, although I do put an SMPTE limiter adjustment layer across the entire timeline upon export. I'm also acquiring in 29.97 and 30p, but exporting 29.97. I have had better luck lately exporting out of Premier 15 with results as expected. With that said, there are still what I would call some strange behaviors happening with captions that are too inchoate to describe here - but I have had OK results lately.

digitlman

Inspiring

This is bizarre to hear, what playout system are you using? We haven't had any issues at our station and our ITX playout server is seeing the captions from our premiere mxf op1a files just fine.

C

Clint Porter9977593

Inspiring

Thanks for the heads up! Please keep us posted if you're able to narrow down the issue. It's terrifying to run into these kinds of issues at the last minute.

I just sent a TV episode to a network early to have them check it out. They've alerted me to captions compatibility issues in the past, but they said this program worked fine on their system. Here was my setup:

Successful:

MXF OP1a (XDCAM 50 NTSC 4:2:2)

Embedded captions on 608 CC1

Premiere v15.0 / Mac Mojave 10.14.6

Tom LaysonAuthor

Known Participant

Clint - that's our exact recipe. I think we're solved for now.
