What proxy size for majority 4:3 2.7K videos files?

Forum|Forum|7 years ago
December 15, 2018
2 replies
2248 views

I'm new to the entire proxy editing work flow. I've gotten as far as creating proxies for all 786 video clips (ridiculous I know).

On this family trip I recorded primarily on the GoPro in 4:3 2.7K (knowing the added height might get cropped out when I do my final edit in a 1080p size but I wanted the flexibility to adjust the video up or down or zoom in, etc... I do have some other video from iPhone and time-lapse that are in 4K (16:9)

I created the proxies with the 1024x540 H.264 settings. Was this the correct thing to do? It looks like the majority of my 4:3 video when brought into the 1080 sequence is a "square" with black bars on the side.

Any tips here, need to re-create proxies at different resolution?

This topic has been closed for replies.

E

excited_Genie16B8

Legend

Was this the correct thing to do?

It was not.

There are no 4:3 proxy presets, so you'll have to create your own.

Base it on Cineform YUV 10 bit (QuickTime Format) when you do.

swtsaeAuthor

Participant

I was afraid that was the case...

So here is what I think I should probably do.

1) Delete the entire proxy folder and the files created.

2) Re-"Create Proxy" specifically for the 4:3 2.7K files using an "equivalent" aspect ratio

3) I assume that for other files that were on other cameras that were 4K resolution I could keep those as they would have used the correct aspect ratio?

Anything I miss or should consider?

M

Meg The Dog

Inspiring

You need to test any workflow before you commit to it.

Try out your settings/workflow with one clip - all they way through the process (ingest/edit on timeline/export) and verify it is working as you want.

Once you are satisfied, do the rest of the source clips.

MtD

M

Meg The Dog

Inspiring

What are the pixel dimensions of the original source files?

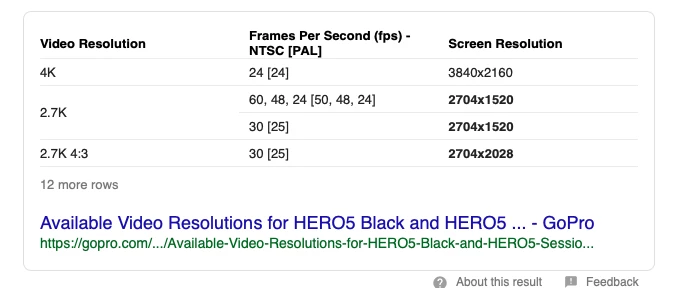

According to this, GoPro 2.7k 4:3 footage is 2704X2028:

You would normally want your proxies to be an evenly divisible reduction, such as 1352x1014 (the original dimensions divided by 2, for example) to maintain the source aspect ratio.

MtD
