When I render Lumetri color effects my footage becomes blurry

  • February 23, 2021
  • 4 replies
  • 2128 views

Hi friends, I'm still new to PP, been using it off and on for a couple of years for some music video projects. I've had issues with adding Lumetri Color effects to my footage: After I render the effects the video becomes a bit blurry and pixelated. Not sure how to fix this. The effects are also not applied to the final export of the video. I found an answer on here that had me de-select "Import Sequences Natively" in Media Encoder but that still did not work. Thank you for any help on either or both of these issues, I appreciate it! - Laura

This topic has been closed for replies.

4 replies

Community Expert
February 25, 2021

as Neil stated, try to get your video preview file format in sequence settings to

what matches the dimensions of your sequence, so definitely not 720p...

let us know what happens, and check your exported video inside premiere pro

exactly as Neil said

R Neil Haugen
Legend
February 25, 2021

First, please drag/drop images onto your text reply box so they appear in your post. Using the "attach images" option means we have to download strange files to our computers to see them. Silly forum software but ... that's what they got.



Next ... you say after you render. Your preview settings are for 720 on the 1080 sequence, so any 'render' within Premiere is going to be a lower resolution than your sequence image. That's within Premiere. You would need to set your preview and render options to the same framesize of your sequence.



Max Render Quality ... no, you don't need that. That is ONLY for when you are doing major resizing, such as 4k on a 1080 sequence, *and* you are getting jaggies on diagonal lines after render/export. Otherwise, leave it off.



Max Bit Depth is normally only of use if you do not have a dedicated GPU card. If you're using an Nvidia or AMD GPU, then you don't need it except for a couple odd situations where PrPro is known to screw up bit depths, such as DNxHD/R in the 4444 version.



What you are likely seeing on export is just how badly Apple screwed up color management of Rec709 media in their ColorSync app. To check, do an export with "reimport into project" checked. If that export looks fine in Premiere but a bit washed out and low saturation outside of Premiere, it's a color management issue.



Apple in all their wisdom chose to set their version of Rec.709 to not apply the required display referred transform function, they only apply the scene referred transform. Then they chose to use what they call "sRGB Gamma" which has been reverse-engineered by numerous experts as somewhere between 1.95 and 1.96. The Rec.709 standard is 2.4 in a semi-darkened room, 2.2 in a bright room viewing environment.



So ... it leaves users with a quandary. Ain't no good solution that works for everything. You can mod the file on export so it looks 'right' in a Mac with a Retina monitor and too dark, contrasty, and over-saturated on the other what ... 85% of screens out there. Or looks a bit light/low-sat on a Mac.



Joy.



Neil

Everyone's mileage always varies ...
Community Expert
February 24, 2021

can you also share your sequence settings please?

does it happen on all your footage or on certain formats?

this is important to answer please.. if you try lumetri on

any photo downloaded from pixabay just for testing, does

it also become blurred? if no, then probably the footage

you are applying Lumetri to do not have enough bitrate

and color sampling... depends on the camera and footage as well..

laurabeee
laurabeeeAuthor
Participant
February 25, 2021

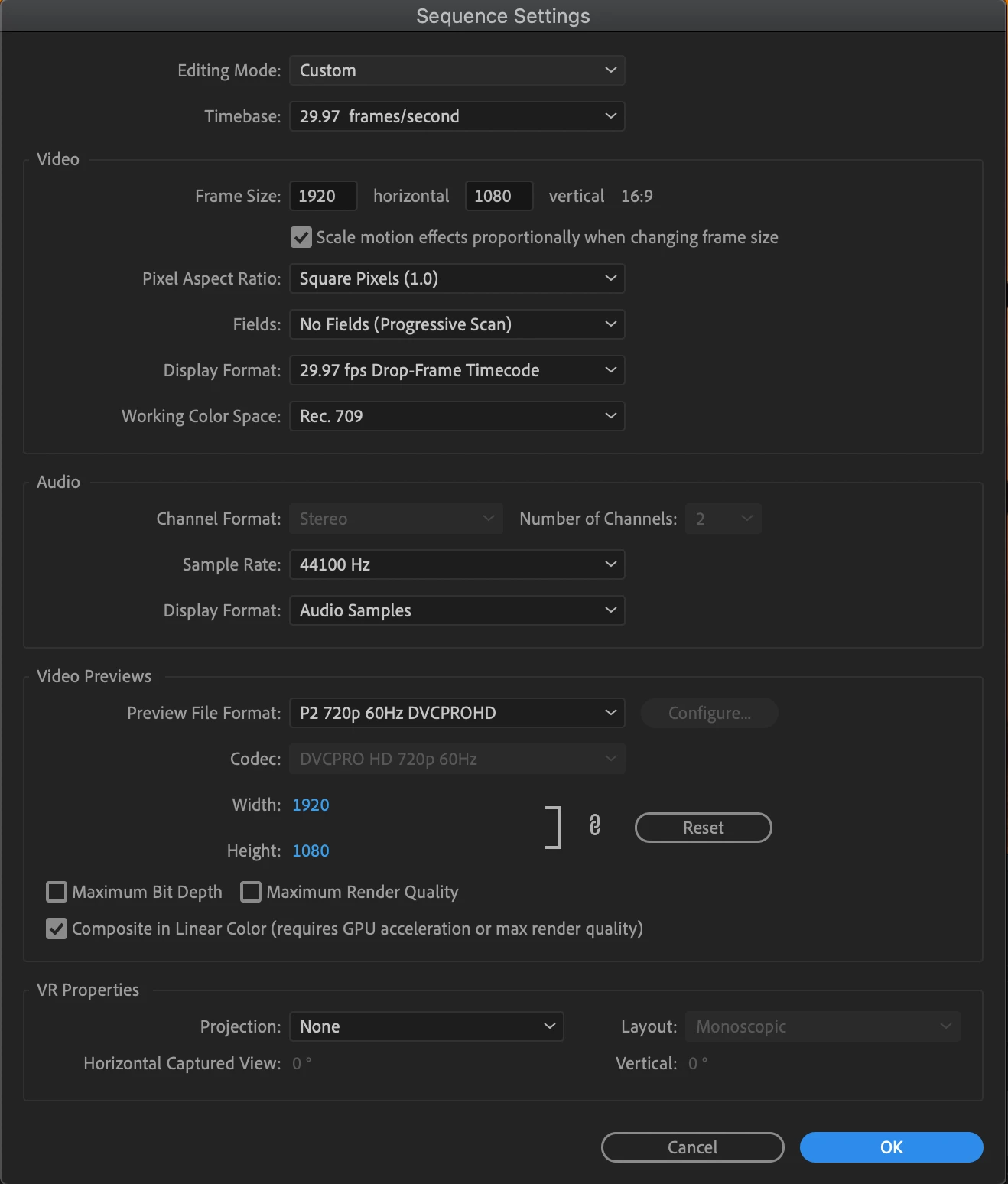

I've attached my sequence settings. Looks like maybe I should select "Maximum Render Quality" and "Maximum Bit Depth?" When I tried that just now it said it would need to delete all my video previews... It's blurring all of my footage after the render and I downloaded a picture from Pixabay and the same thing happened. Thank you for your help.

Community Expert
February 24, 2021

can you please share your system specs and which version of premiere pro you are using?

in file- project settings - general - renderer .. What renderer options do you have?

make sure playback resolution is set to full inside premiere pro program monitor..

check which renderer is active also inside media encoder..

try to switch renderers to software only, if it works better, let us know which gfx card

you have and whether it will need an update...

laurabeee
laurabeeeAuthor
Participant
February 24, 2021

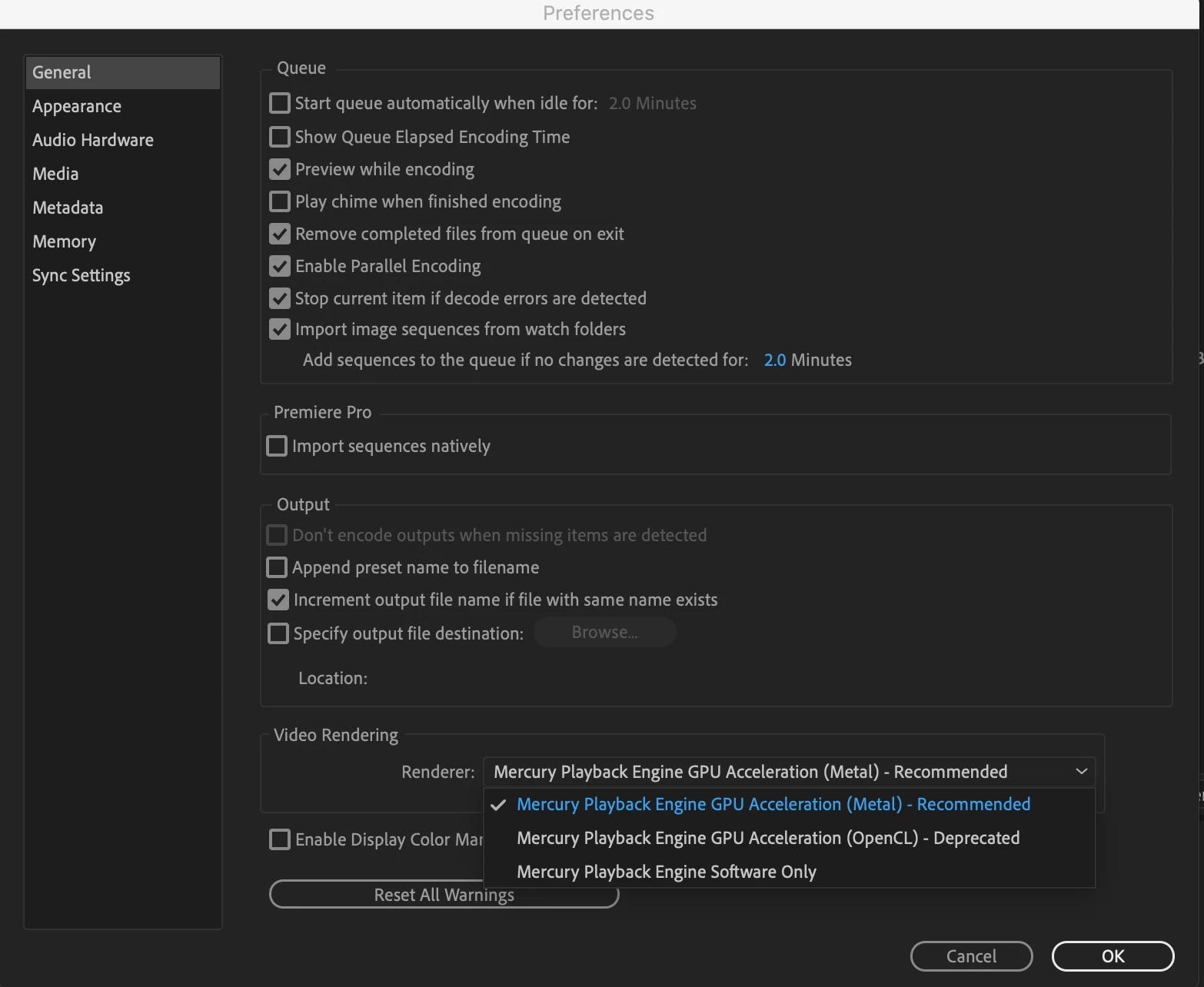

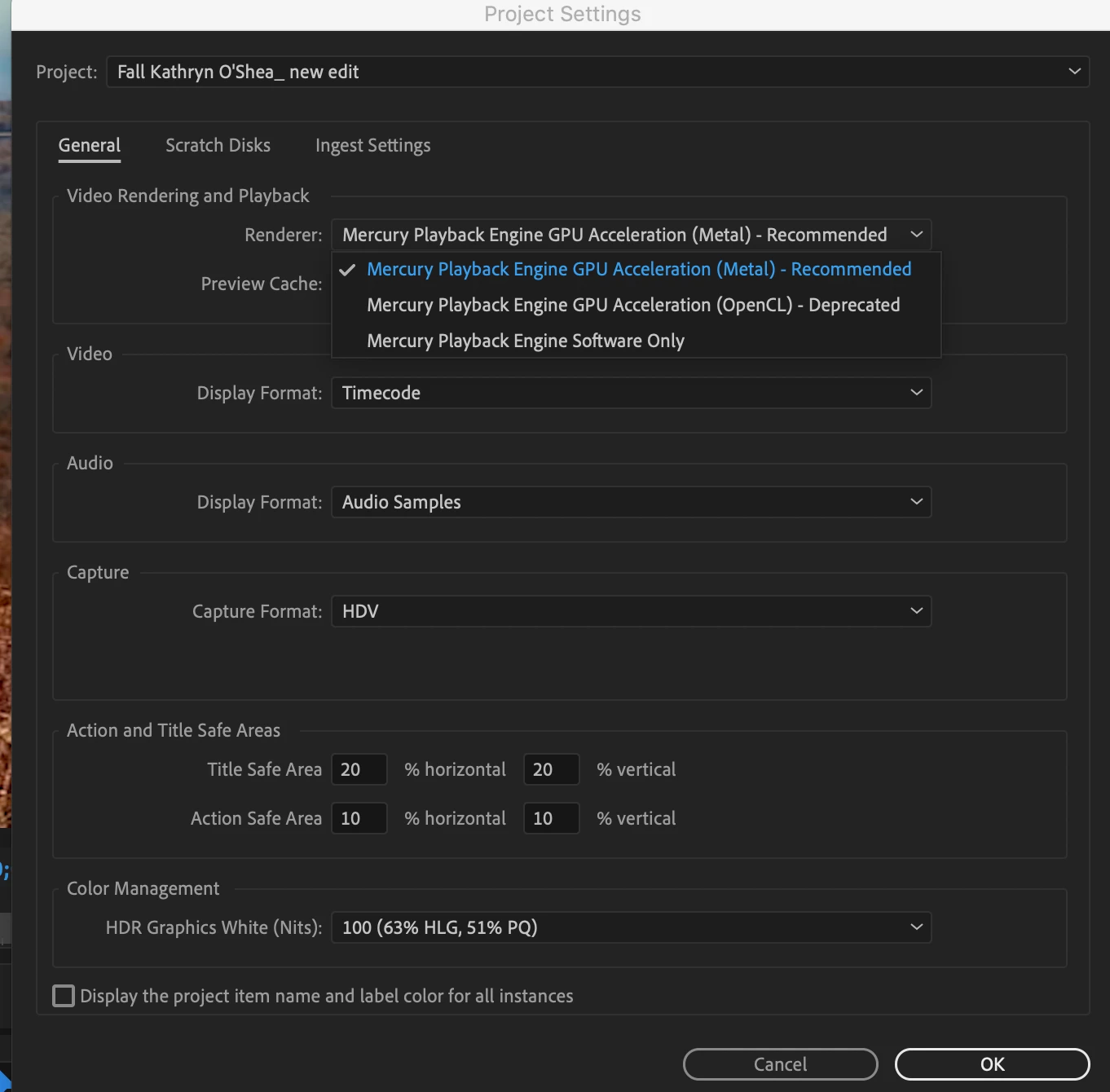

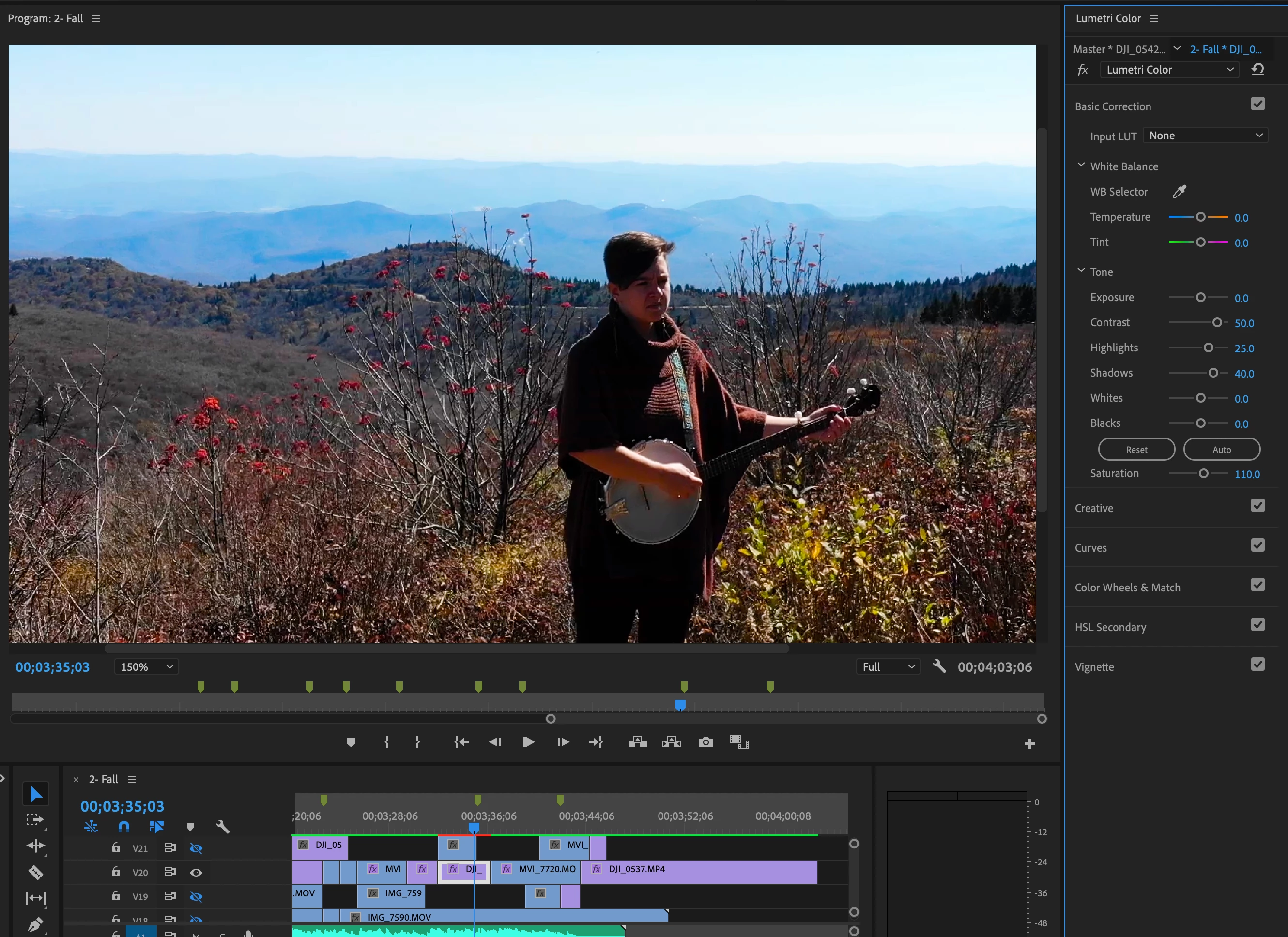

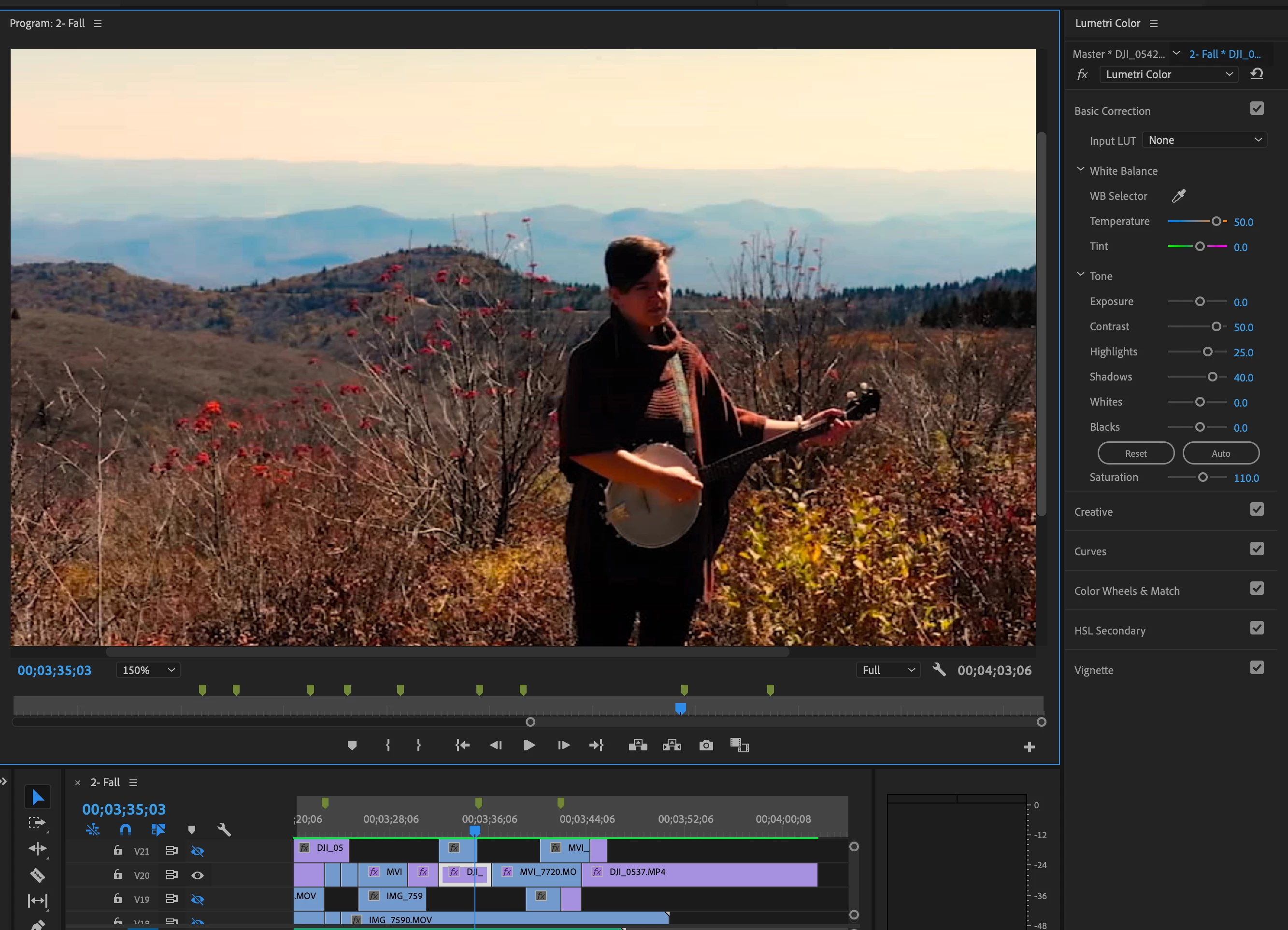

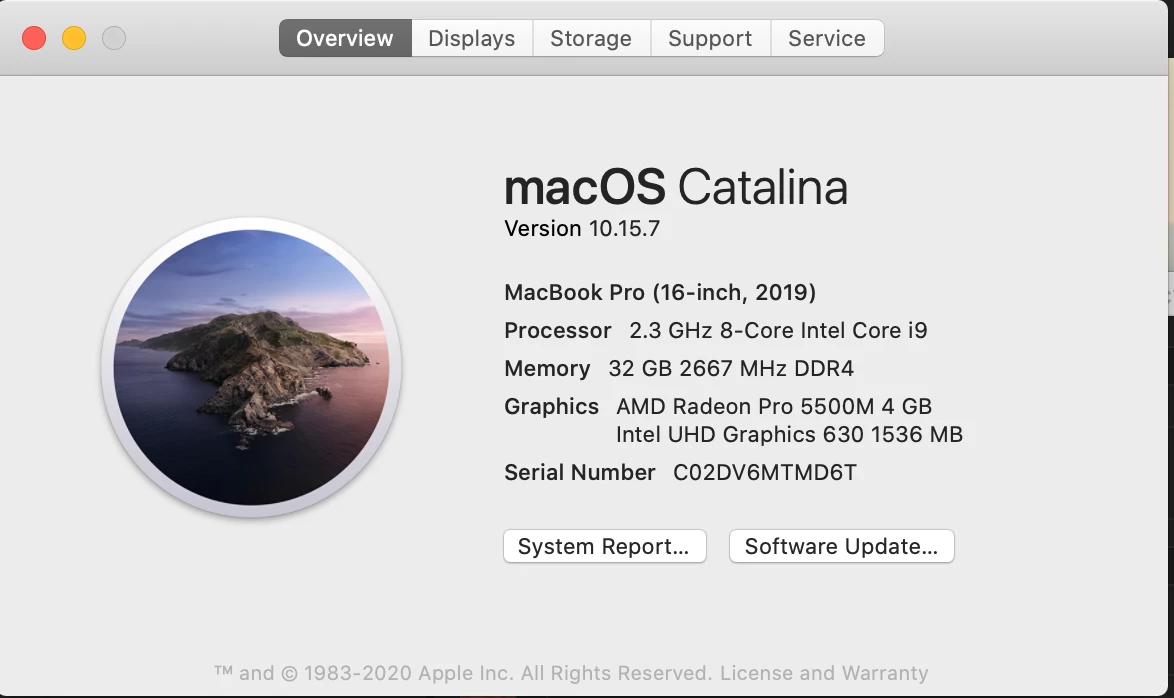

Thank you for your response, Carlos! I took a screenshot of my project settings. Playback res is set to full. I'm working on a new Macbook Pro (specs included in screenshot below) and am using the 2020 version of PP. I switched the renderer to software only in Media Encoder, also included a screenshot of what it was set to previously. I also included screenshots of my footage after I've rendered it with color, the blurry version, and when I remove some of the color it goes back to high resolution. The blurriness only occurs after I render it, it looks perfectly clear before the render with all the color additions. Thanks, going to see if these changes help...

laurabeee
laurabeeeAuthor
Participant
February 24, 2021

Dang, changing the renderer to software only didn't help, still blurry after the render.
