Bullets and number problems in RH 8

  • April 28, 2009
  • 2 replies
  • 847 views

I have projects created in RoboHelp 5 that have display problems with the Navigation panel in Safari and Firefox on a Mac. While researching these, I found that the bullet and numbered lists are really messed up.

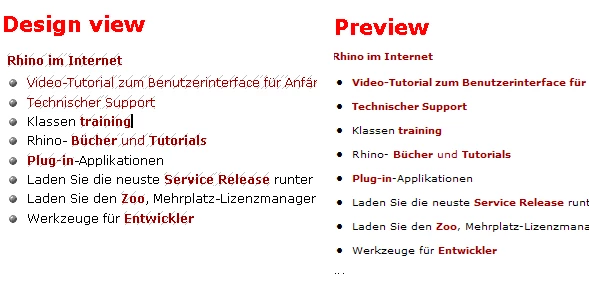

The first problem is that the bullet lists use bitmap bullets that display fine in the Design view, but do not display correctly in the Preview or when WebHelp is compiled.

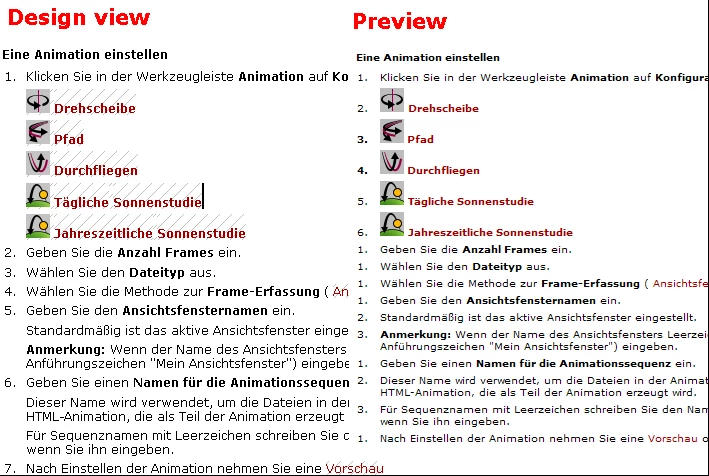

The second problem is the numbered lists do not number correctly. Again, the numbers show correctly in the Design view, but in the Preview, they do not display correctly.

In addition, the text is much smaller in the preview than it is in the Design view. They are both displayed at 100%.

Don't worry that the text is in German, this happens in English, too, and all other European languages. The Asian languages have additional problems.

~M Becker

www.rhino3d.com

This topic has been closed for replies.

2 replies

A
Amebr-ke0mH4
Inspiring
April 30, 2009

I've been doing a bit of research into the RH8 upgrade. See if either of these are relevent:

http://forums.adobe.com/message/1898329

(check the stylesheet definition in an outside editor; HTML view seems to magically display the missing info, even when it isn'tactually there.)

http://forums.adobe.com/message/1927755

Your images suggest that the second post might be the issue, but it might be an idea to keep an eye on the first one, in any case.

Amber

Peter Grainge
Community Expert
Peter GraingeCommunity Expert
Community Expert
April 29, 2009

I cannot help you much if the issues are only with Safari and FireFox on a Mac but I can suggest an approach.

First create a new project and create (not import) a topic with similar lists. Does it work properly?

Next create (not import) a new topic into the problem project. Does it work properly?

If the second test works, then rewrite the new topic so that it is exactly the same as one that does not work. Make sure it is exactly the same in every last detail. Then use a file compare tool to identify the differences in the code.

Do you have many lists? I ask so as to identify the practicality of recreating the lists.

Let us know how that goes.

See www.grainge.org for RoboHelp and Authoring tips

Use the menu (bottom right) to mark the Best Answer or Highlight particularly useful replies. Found the answer elsewhere? Share it here.
