Customizing the screen layout

  • July 21, 2013
  • 2 replies
  • 1560 views

In an attempt to rebrand the online help and make it more user friendly, I have received approval to change our webhelp to multiscreen HTML5 output. One of the developers who knows CSS has been helping me customize the Desktop with home page layout.

To test the layout and also to create something to demonstrate to the managers in my company, I built a separate smaller project.

1. One of the things I noticed was that the width of the table of contents pane changed slightly when I opened some of the topics.

2. We added the company logo, in the topic title. When generating the output the logo always appeared larger than what it was supposed to be. When previewing the topic layout page the logo appeared fine. However, every single time I generated the output, the logo became noticeably bigger.

3. When applying the custom layout to the main project, the logo was completely missing when generating the output.

4. In order to confirm that the issue was with Robohelp, and not the custom layout, I created a third project. In the third project I imported 5 html files from the main project. The generated output looked perfect, other than the changing width of the TOC pane. I imported some more files, and saw that some of the files were not imported successfully, after those files were imported the logo went missing from the generated output. Deleting those files, caused the layout to look perfect again. I am therefore assuming that some of the files in the main project are affecting the layout. If this is the case, are there any shortcuts towards discovering which files are affecting the layout and fixing them.

Any and all advice would be appreciated.

Yehoshua Paul

This topic has been closed for replies.

2 replies

Rsfl
Rsfl
Inspiring
July 25, 2013

Can this be a problem caused by interferences between the css of the screen layout and the topic's css files? There may be problems when, e.g, style names collide or when there are varying definitions for the body element.

Y
Yehoshua PaulAuthor
Known Participant
July 28, 2013

So apparently the issue was that I was using the same CSS file for the screen layout and the topic. I was unaware of the fact that you needed a separate CSS file for the topic, and this caused all the issues. Applying a different CSS file solved the problem.

Thanks goes to Peter Grainge who helped me solve the issue.

Peter Grainge
Community Expert
Peter GraingeCommunity Expert
Community Expert
July 28, 2013

Applying a different CSS doesn't quite solve all the problems. The changing width of the TOC was caused by some short topics that did not require a scroll bar. Those did not have a scroll bar whereas longer topics did causing the scroll bar to take some width.

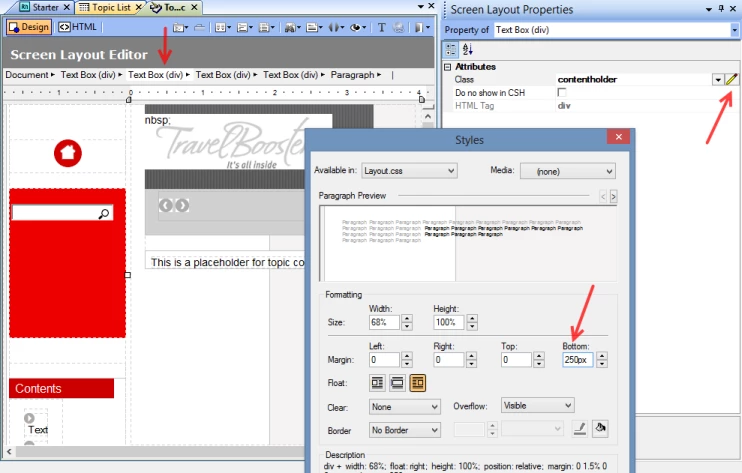

The problem was solved by by adding a bottom margin so that scroll bars were always required. I suspect there is a setting somewhere in the skin to have permanent scroll bars but for now this has fixed the problem.

See www.grainge.org for RoboHelp and Authoring tips

@petergrainge

Use the menu (bottom right) to mark the Best Answer or Highlight particularly useful replies. Found the answer elsewhere? Share it here.
Peter Grainge
Community Expert
Peter GraingeCommunity Expert
Community Expert
July 21, 2013

I am not sure what is happening here so try downloading the demo from my site and see if you get any of these issues with that.

There is an image in the Retirement topic.

See Authoring > Multiscreen.

See www.grainge.org for RoboHelp and Authoring tips

@petergrainge

Use the menu (bottom right) to mark the Best Answer or Highlight particularly useful replies. Found the answer elsewhere? Share it here.
Y
Yehoshua PaulAuthor
Known Participant
July 22, 2013

Regarding the changing width of the Table of Contents pane, I noticed that your project has the same issue (at least on my computer).

In the contents, under HR policies and procedures, click on Company Sick Pay, and then click on Dependants Leave. The width of the Table of Contents pane changes slightly.

Can I e-mail you privately the project that I built so you can see what we did. From my company's perspective it shouldn't be that much of an issue, especially if I redact it. I'd like you to see the changing logo size. When you preview the topic page it looks fine, when you generate the project, the logi becomes considerably bigger.

Peter Grainge
Community Expert
Peter GraingeCommunity Expert
Community Expert
July 22, 2013

See the Contact page on my site and send the project as instructed there.
