DITA outputclass is not picked up by Robohelp
I'm using structured FM 8 and RH7 in TCS1 on Windows XP.
We have recently changed to a new template and have a new format for information notes/examples/warnings/critical notes. They all use the same format: two row single column table. The top row has a blue background and is populated with the word Notes, Example, Warning, or Critical. These words are in white font. The bottom row is for the actual text.
My problem:
We use structured FM and in the structured map we use the outputclass option to select the type of note (Note, Example, etc.) that is displayed in the top row of the note. This works very well in FM; however, the output in RH is a very faint bullet with no text. Here is the RH HTML for the entire note:
<table x-use-null-cells style="padding-left: 3.00pt; padding-top: 3.00pt; padding-right: 3.00pt; padding-bottom: 3.00pt;
float: alignleft; margin-left: 18.00pt; width: 319.54pt;
border-spacing: 0px; border-spacing: 0px;" cellspacing=0 width=426>
<tr style="height: 22.00pt; background-color: #013696;" bgcolor=#013696>
<td style="width: 319.535pt; background-color: #013696;" bgcolor=#013696
width=319.5pt>
<ul><li> </li>
</ul></td></tr>
<tr style="height: 112.00pt;">
<td style="width: 319.535pt; border-bottom-style: solid; border-bottom-width: 1 px; border-bottom-color: #000000;"
width=319.5pt>
<p class=CellBody>With external models, CDDS enables you to use Predictive
Model Markup Language (PMML) models to set the value of a variable (global
or local). The variable can then be used in a set statement. It is recommended
that you limit the calls to the external model as much as possible for
performance reasons.</td></tr>
</table>
<robohelp></div></robohelp>

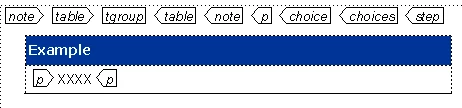

Attached is a screenshot of how it should display:

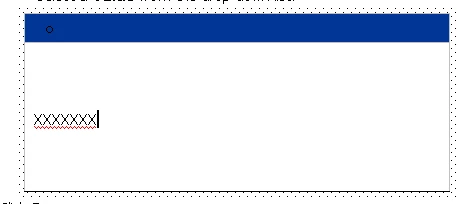

Attached is a screenshot of how it is displayed in RH.
Any way to get the text to display?
