HTML5 Output – Logo Appears Differently on Topic Pages vs Home Page

Forum|Forum|5 months ago
August 12, 2025
3 replies
293 views

Hi everyone,

I’m facing an issue in Adobe RoboHelp while working with the HTML5 output preset.

I’ve added a logo to my output, and it appears fine on the home page, but when I open any topic page separately in browser, the logo looks different. I imported that specific topic from the other project that has its own logo. Did any one face this same issue? Thoughts please

Output presets

Correct answer Jeff_Coatsworth

It was imported from the output. I can say 5 topics

By @sidwrites

- that's your main problem I would expect. By importing an output topic into your project, you've pulled in all the JavaScript and extra formatting that the output process applies to the source RH project topics when it creates the output. Part of that I expect (if you inspect the HTML) is an image file that you don't want referenced. Either ditch the imported output topics and import them from the source RH project OR have a look in your project in those topics and kill off the reference to the unwanted image.

Peter Grainge

Community Expert

Also does the problem only occur if you click Open in New Tab? If it is opened in the same tab, what happens then?

________________________________________________________

My site www.grainge.org includes many free Authoring and RoboHelp resources that may be of help.

Use menu (bottom right) to mark as Best Answer or to Highlight particularly useful replies. Found the answer elsewhere? Share it here.

S

sidwritesAuthor

Participating Frequently

Yes, it happens only if it opened in new tab. In the same page, it is working fine

Peter Grainge

Community Expert

You refer to one topic being different but in your first post you said "but when I open any topic page separately in browser, the logo looks different".

Which is it one or all?

Did you import the topic from the source project or it's output?

________________________________________________________

My site www.grainge.org includes many free Authoring and RoboHelp resources that may be of help.

Use menu (bottom right) to mark as Best Answer or to Highlight particularly useful replies. Found the answer elsewhere? Share it here.

S

sidwritesAuthor

Participating Frequently

It was imported from the output. I can say 5 topics

Jeff_Coatsworth

Correct answer

Community Expert

It was imported from the output. I can say 5 topics

By @sidwrites

- that's your main problem I would expect. By importing an output topic into your project, you've pulled in all the JavaScript and extra formatting that the output process applies to the source RH project topics when it creates the output. Part of that I expect (if you inspect the HTML) is an image file that you don't want referenced. Either ditch the imported output topics and import them from the source RH project OR have a look in your project in those topics and kill off the reference to the unwanted image.

Peter Grainge

Community Expert

You haven't said which version of RoboHelp you are using. Please always start a thread with this information. Go to Help > About to get the full version number.

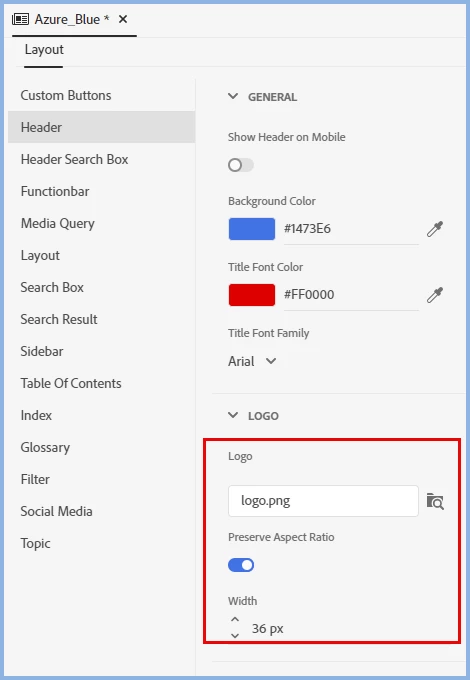

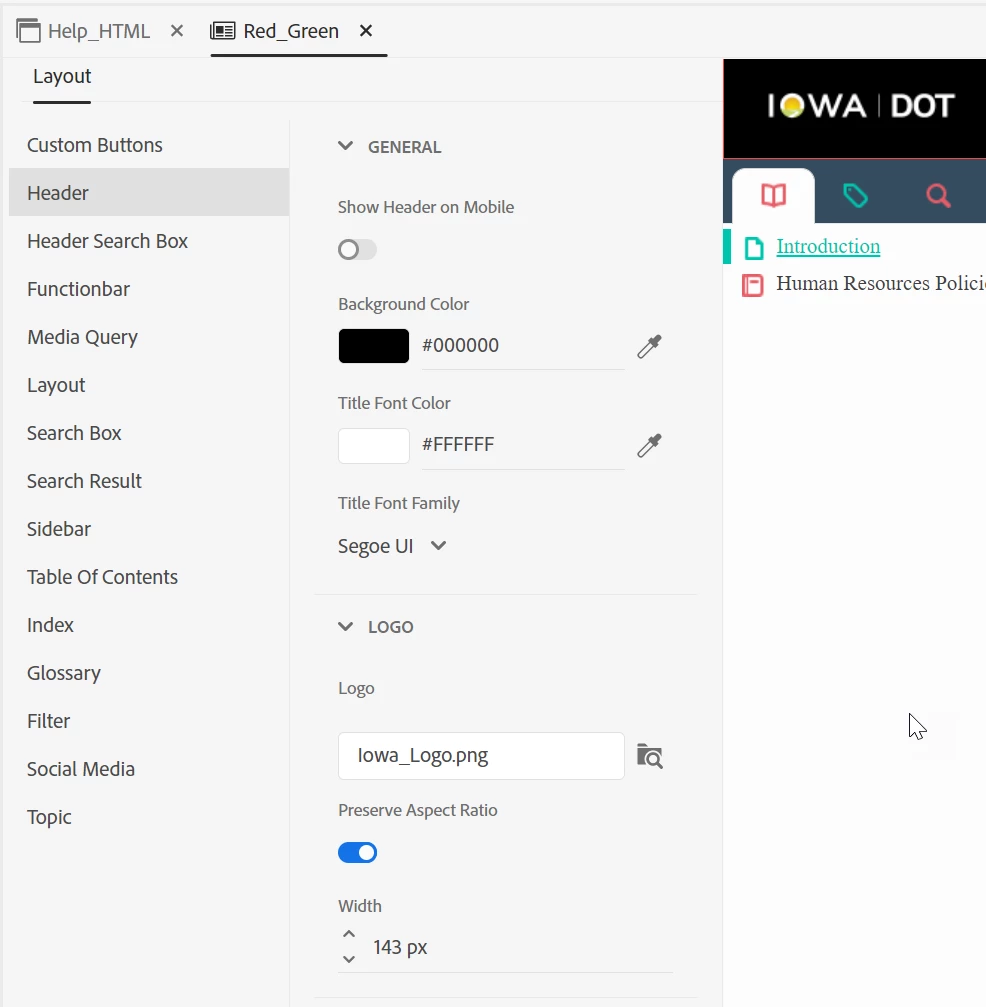

Topics have nothing to do with the logo so it's not releated to that. You haven't said how it's different. You can adjust the size when in topics here.

If that's not it, maybe you need two versions of the logo. Not sure as you haven't said what is different. Some images would help.

________________________________________________________

My site www.grainge.org includes many free Authoring and RoboHelp resources that may be of help.

Use menu (bottom right) to mark as Best Answer or to Highlight particularly useful replies. Found the answer elsewhere? Share it here.

S

sidwritesAuthor

Participating Frequently

Hello Peter!

Thanks for the reply!

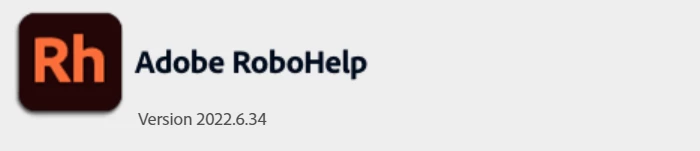

The version is

When I open the generated HTML5 output from the folder, it opens normally and when I select the particuler topic (imported from the other project for reuse) clicked on "Open link in new tab"
