Question

image conversion issue - width and height to 0

  • April 23, 2020
  • 3 replies
  • 448 views

Hi all,

First off... great bit of support in this group... thx!

I'm using TechComm 2015, importing Frame docs into RoboHelp for Responsive HTML5 output. Specifically with regard to image conversion, when I set the "preferred dimensions" width and height to 0 (to prevent image sizing during conversion), the images do not appear in the output.

Disabling above does allow them to appear in output, thus I don't know why this is happening.

Wondering anyone has comments that will alleviate?

Thanks!

    This topic has been closed for replies.

    3 replies

    Jeff_Coatsworth
    Community Expert
    Jeff_CoatsworthCommunity Expert
    Community Expert
    April 28, 2020

    Al I know is that images have to be in an anchored frame to survive the trip into RH (or to be published straight out of FM to something like HTML5).

    Jeff_Coatsworth
    Community Expert
    Jeff_CoatsworthCommunity Expert
    Community Expert
    April 24, 2020

    Are you all patched up? I forget what was the last RH2015 version issued (I'm still stuck working with RH11). Was this working before & now has stopped (or started misbehaving)?

    D
    Dean@DCFAuthor
    Known Participant
    April 28, 2020

    Hi Jeff... thanks for getting back!

    Appear to be patched up (12.0.4.460).

    Re working before or not, it never worked for me. I did a couple of different tests using various Frame sources projects  with default and import settings (except I did change the width and height to zero) with the same result... so it appears the situation isn't project related.

    Thats said, I'm going to see if importing Word source with images gives the same result. I'll post back results.



    One question... in our frame documents, images are imported and by default live in a frame. We normally just let those frames attached to the para tag directly above this image, i.e. we do not attached them to a particular para tag to anchor images independantly. That shouldn't image this... correct?

    Thanks!

    Jeff_Coatsworth
    Community Expert
    Jeff_CoatsworthCommunity Expert
    Community Expert
    April 24, 2020

    Since I don't have a ton of images in my FM to RH project, I can't tell you definitively that this was or wasn't working, but I did find this TCS Blog post that talks about setting the zero size thing - https://blogs.adobe.com/techcomm/2009/10/preparing_anchored_frame_for_conversion_in_robohelp.html.

    This would imply that it worked (at some point), but may have gotten busted later. What is coming through to your RH topic with regard to the <img> tag they mention?

    D
    Dean@DCFAuthor
    Known Participant
    April 24, 2020

    Hi Jeff... I appreciate the comments... thank you!

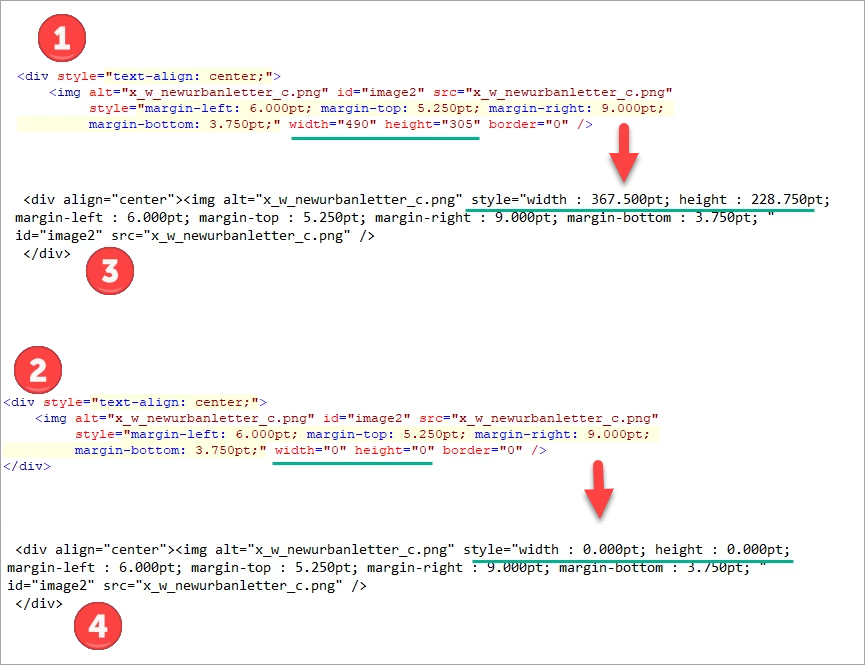

    I've inserted details below that outline the situation, as per your comment re <img> tag:

    • 1 = HTML after importing from FM with default image conversion settings, i.e. no height and width specified.
    • 2 = HTML after importing from FM where the image conversion settings for height and width are both set to 0 (zero).
    • 3 and 4 = HTML from responsive output from each of the respective imports.
    • 3 Output does display images, however, not very well (too small... not clear), which is why I was exploring the option of using zeros for sizing width and height as per the blog you reference.
    • 4 Output does not display images.

    In general, the code seems to be fairly predictable in terms of the conversion settings, i.e. nothing seems to be far off. Caveat… I’m not a real coder 🙂 .

    Any comments appreciated!

    Thank you!
