Question

Incorporate label and icon as a style?

  • June 8, 2020
  • 6 replies
  • 302 views

RoboHelp 2019 New UI

Is there a way to have the title of a warning, along with its icon automatically formatted and recalled (style, variable, etc.)?
For example, can I select some element in RH and automatically get the icon and "WARNING:" (red circled portion of image below) to populate so that I only have to type in the variable text each time?



    This topic has been closed for replies.

    6 replies

    Peter Grainge
    Community Expert
    Community Expert
    June 11, 2020

    Put the page you have shown in a single topic project and send that to me. See the Contact page on my site.



    Use the menu (bottom right) to mark the Best Answer or Highlight particularly useful replies. Found the answer elsewhere? Share it here.
    GLNT1Author
    Inspiring
    June 11, 2020

    I have tried adjusting the Margins.  I even set them to 20 at one time and saw no difference.

    Peter Grainge
    Community Expert
    Community Expert
    June 11, 2020

    Locate the OL style and try margin above and below.



    Use the menu (bottom right) to mark the Best Answer or Highlight particularly useful replies. Found the answer elsewhere? Share it here.
    GLNT1Author
    Inspiring
    June 10, 2020

    Padding and Line spacing doesn't seem to have any effect on my ol.Warning style.  I wanted to leave a bit more space above/below the warning.  I also wanted to close up the line spacing to match that of the normal paragraphs.  Is this not possible?  I tried adjusting Padding top/bottom and Line Spacing with no luck..



    GLNT1Author
    Inspiring
    June 10, 2020

    Can you tell me what setting I adjust to make the text align with the top of the icon?  Is this possible with autonumber?



    Actually, the text aligns top when I use it as an OL style.  I'm not sure why I get two level 1s in the Preview, though. It looks fine when I apply the style in a topic.





    Peter Grainge
    Community Expert
    Community Expert
    June 9, 2020

    Not quite as shown as text wrap comes into it when the text gets below the icon.

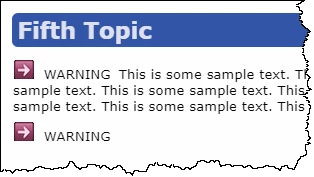

    What you see below is a P class with Autonumber applied. I think in another recent thread it was done with a list and that will give better control over the gap. I have not played with this style to reduce the gap and maybe that's not an issue.



    For Autonumber, in the Style Editor, duplicate the P tag and name it as required - p.warning for example. In Properties > Autonumber, select the image and then add the text. To make it bold, change the editor to source view and add the property below.

    font-weight: bold



    For Lists, do the same with the OL style.
