Question

Missing TOC Link error Version 2020.8.34

Forum|Forum|3 years ago
November 9, 2022
10 replies
1005 views

Hi, I am having issues with inserting a new child CHM file and updating child CHM files.

I follow the directions in https://helpx.adobe.com/robohelp/using/table-of-contents.html "Insert Child HTML Help (.chm) File" section to insert a new CHM file into the TOC of the parent project. The CHM appears in the TOC with a "Missing TOC Link" error. I think I found a workaround. I copied the CHM into ...\contents\assets\chm and the .ALI file into ...\publish\mapfiles of the parent project before inserting the the Child HTML help. I shouldn't have to do that, right?

Also, after updating one of the child CHM projects and generating the CHM, the CHM and .ali files do not get updated in the \chm and \mapfiles folders of the parent project. The workaround, similar to what I did before, is delete the TOC entry for the child, copy the updated child CHM and .ali files into the parent project, and then re-insert the child into the parent TOC. Is there a better procedure?

One final question, are the child .ali files required for RoboHelp 2020 or is this a leftover feature of 2019 Classic?

Thanks, Dan

This topic has been closed for replies.

Peter Grainge

Community Expert

The way I merged CHMs was to set the output folder outside all the projects. Should work for both Classic and the New UI versions.

________________________________________________________

My site www.grainge.org includes many free Authoring and RoboHelp resources that may be of help.

Use the menu (bottom right) to mark the Best Answer or Highlight particularly useful replies. Found the answer elsewhere? Share it here.

D

dancurranAuthor

Participating Frequently

Thanks, yes, that's what I do too.

Dan

D

dancurranAuthor

Participating Frequently

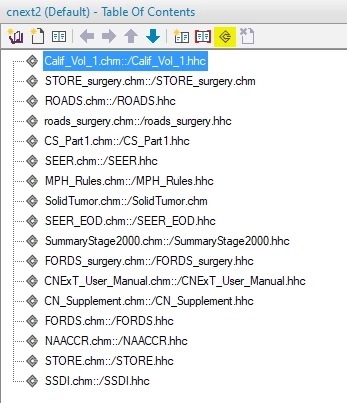

I submitted a support ticket and referenced this thread. Just to add more documentation, this is what my project looked like in RH2019 Classic. I used the Merge New Project button to combine my projects:

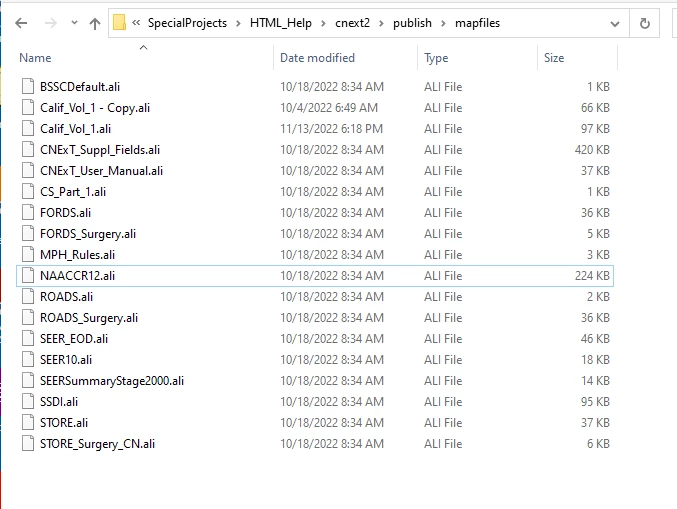

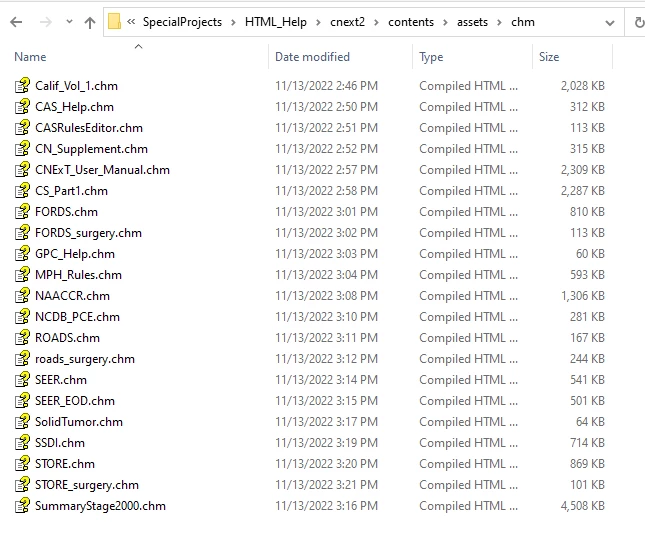

I achieve the same functionality in RH2020 by using the insert Child HTML Help function, but before I do that I have to manually copy CHM and .ali files into these folders, otherwise I see the error that I documented:

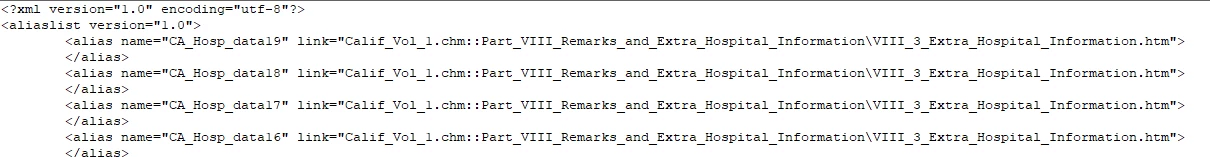

Also, .ali files look like this in the original project:

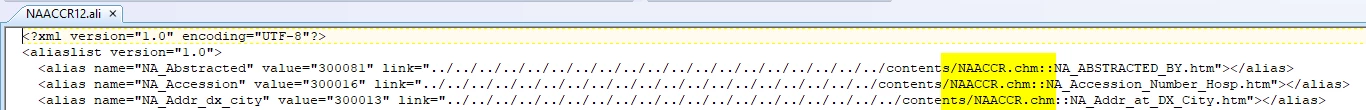

But then I have to edit them to look like this in the combined project. Notice how I have to add the .chm name and update the path:

Peter Grainge

Community Expert

There was another thread no more than a few weeks ago where someone wanted a TOC link and I was able to create a link by importing the CHM and linking to that. That was for a responsive or frameless output, I can't remember, but the problem was the same in both. As soon as you clicked the link, the CHM was downloaded rather than opened.

Here you seem to be working with a merged CHM setup so I don't get you want to link to a CHM in a way that keeps it outside the merge. At least, that's it seems to be the objective.

________________________________________________________

My site www.grainge.org includes many free Authoring and RoboHelp resources that may be of help.

Use the menu (bottom right) to mark the Best Answer or Highlight particularly useful replies. Found the answer elsewhere? Share it here.

D

dancurranAuthor

Participating Frequently

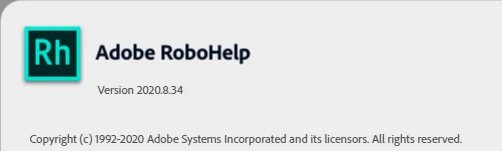

Hi, my version:

My objective is to use CHMs like we have been in RH10. In our software product there are about a dozen CHM files (Child HTML Help in RH 2020 language) whose pages are displayed in our software depending on the field selected by the user. In RH10 we used to have to manually combine the .ali files into the parent project .ali so that each .ali from the children would be included. For example:

The RH 2020 CHMs work in my software now, but I have to manually copy the CHM and .ali files to the parent's folders before I generate the parent CHM. Thank you for all of your feedback and suggestions.

Dan

D

dancurranAuthor

Participating Frequently

FYI, I submitted a support request as suggested and referenced this thread for the details. Your help is appreciated!

Dan

Peter Grainge

Community Expert

What is the specific version of 2020 that you are using as specified in the Help menu?

________________________________________________________

My site www.grainge.org includes many free Authoring and RoboHelp resources that may be of help.

Use the menu (bottom right) to mark the Best Answer or Highlight particularly useful replies. Found the answer elsewhere? Share it here.

A

Amebr

Community Expert

I think you should contact support to see if they can clarify things. See the following page for support contact options. The email address is recommended as it goes to a dedicated Robohelp team.
https://helpx.adobe.com/contact/enterprise-support.other.html#robohelp

A

Amebr

Community Expert

Yeah it looks like both topics are wrong and that functionality has been completely removed in RH2020.8.

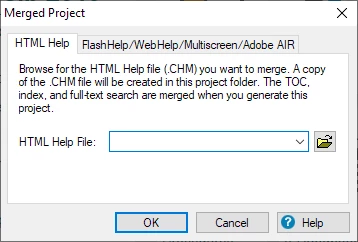

This is the corresponding dialog box that I used to use in the dim, dark past when I was generating chm:

I never stored the chm in the parent project as the dialog box states though, because our projects weren't all generated at the same time and storing the child chm in the parent would mean outdated child chms could be published accidentally. And in the original MS functionality, the parent chm only needs to know the name of the chm (all chms individually published to the same folder) not to have the chm present when it is generated.

So I suppose you could try just specifying the name of the chm and see if the parent chm correctly picks up the child chm when they are both copied to the same folder. You'd have to live with the "broken" link in the toc though.

And for your other question, I'm fairly sure the context sensitivity is built in to each chm so you wouldn't need the ali file in the output. At least I don't remember doing anything with the ali file all those years ago...

D

dancurranAuthor

Participating Frequently

Thanks for your feedback. In the current RH2020, the TOC insert looks like this and I select Child HTML Help:

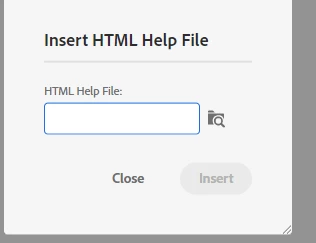

The dialog below opens to allow me to select the CHM:

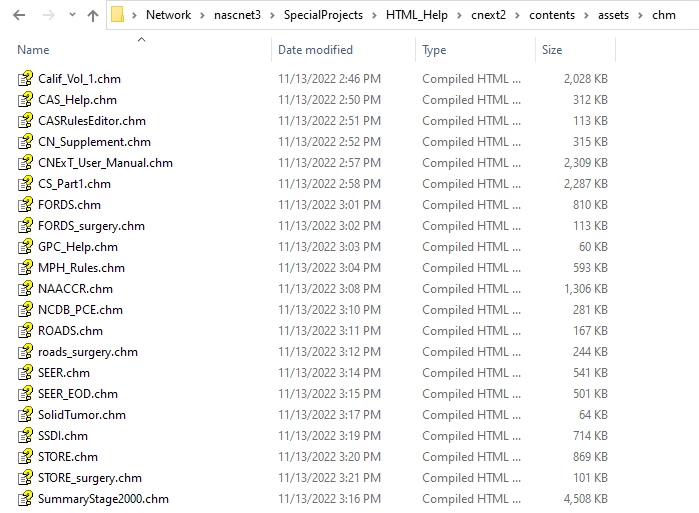

In 2019 Classic the child CHM is copied to the chm folder under assets in the parent project. In RH2020 I have to manually copy it there or I get the broken TOC link message. The CHM is not automatically copied. My parent project looks like this:

In addition, the ali files in 2019 Classic would be automatically copied to publish\mapfiles, but in RH2020 I have to manually copy them. I tried to generate the parent without the map files but it did not work. This is frustrating becuase in the 2019 Classic is worked as expected and now I am stuck with a manual process. I still think that this is a bug. Maybe I should look at merging the projects rather than inserting CHMs. Thanks again!

Peter Grainge

Community Expert

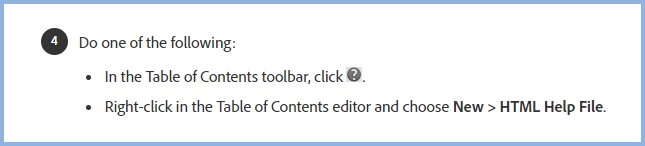

One of the steps in the additional link @Amebr has added shows this.

That icon does not exist. What you do get is this.

There you will see the same icon for Child Project that I referred to before, which is not the icon you are showing.

________________________________________________________

My site www.grainge.org includes many free Authoring and RoboHelp resources that may be of help.

Use the menu (bottom right) to mark the Best Answer or Highlight particularly useful replies. Found the answer elsewhere? Share it here.

A

Amebr

Community Expert

The proceudre Dan is looking at is specifically about linking to a compiled chm file "specify a location for the .chm file" which I think is supposed to just open the chm file, rather than include the chm toc. But the procedure is a bit unclear. It definitely seems to be different from merging projects as it also includes the note "Insert Child Project and Insert Child HTML Help File are not available in Book TOC mode."

I found another topic which deals with both insert child project and insert chm:

https://helpx.adobe.com/robohelp/using/manage-projects.html

I'm not sure if it will help, but at least it's some further information.

D

dancurranAuthor

Participating Frequently

Thanks Peter and Amebr. Amebr is correct. It only asks for the CHM file, which is what I give it. But it's not enough! I am not using Book TOC mode. Amebr, I will take a look at the provided topic link.

Dan

Peter Grainge

Community Expert

When you insert a link from the parent project TOC to a child project, the icon should look like this.

The icon you are showing suggests you have linked it a different way and RoboHelp doesn't understand what the file type is done that way.

On the toolbar there is an icon to insert a child project. Are you using that?

________________________________________________________

My site www.grainge.org includes many free Authoring and RoboHelp resources that may be of help.

Use the menu (bottom right) to mark the Best Answer or Highlight particularly useful replies. Found the answer elsewhere? Share it here.

Peter Grainge

Community Expert

What is the bug you think you have found?

________________________________________________________
My site www.grainge.org includes many free Authoring and RoboHelp resources that may be of help.

Use the menu (bottom right) to mark the Best Answer or Highlight particularly useful replies. Found the answer elsewhere? Share it here.

D

dancurranAuthor

Participating Frequently

Hi, "Missing TOC Link" error when I insert a CHM into the TOC. I can't capture the message when I hover over the red x but it looks like this:

It's a brand new project. The only thing I did before inserting the CHM is click on "Enable advanced HTML Help options" in Project Settings.

Dan

Peter Grainge

Community Expert

See if these help.

Merged Help RoboHelp New UI (grainge.org) and Merged CHM Help (grainge.org).

I'm not sure about the ALI files without setting up a test. The first link takes you to a page with a demo merge you can download. You can see if using map ids in that create an ali file. I think they are still used.

________________________________________________________

My site www.grainge.org includes many free Authoring and RoboHelp resources that may be of help.

Use the menu (bottom right) to mark the Best Answer or Highlight particularly useful replies. Found the answer elsewhere? Share it here.

D

dancurranAuthor

Participating Frequently

Mr. Grainge,

Thank you for your response. After reviewing your resources and Adobe help I think I have found a bug. I will ask support about it. Regarding the demo merge, thank you for that. I will have a look.

Dan
