Modify breadcrumb separator for Indigo layout (RoboHelp 2017)

Forum|Forum|7 years ago
July 25, 2018
1 reply
1097 views

Does anyone know how to change the breadcrumb separator for the Indigo layout in RoboHelp 2017? I checked the Layout editor as well as the output CSS and JS files, and still couldn't find a place to specify a different character.

Thanks!

Amy D

HTML5 layout

This topic has been closed for replies.

Correct answer Steffen Riek

Hy Amy,

I may have a solution for you:

1. Go to the location ...\<your project>\!ScreenLayout!\Indigo and open the file Topic.slp by using a text editor.

2. Search for ». That's the entity for the displayed symbol. (Btw: « the next line is the entity for RTL languages.)

3. Replace it by the desired symbol (e.g. if you may use the slash just insert /) and save the file.

4. Publish your project.

5. When opening the online-help the new symbol should be displayed.

Regards

Steffen

Steffen Riek

Inspiring

Hi Amy,

breadcrumbs are created via the masterpages.

Just open the assigned master page and double click the breadcrumb definition on the top of the page.

You should then see a dialog like this (it is the german version):

Select a character from the Separator (Trennzeichen) dropdown list or just enter another one.

Hope that helps.

Regards

Steven

amyd26771620Author

Participant

Thanks for the reply Steven. What I'm actually trying to do is change the separator in the responsive layout, not at the topic or page level. I did try your suggestion, but it did not impact the separator in the layout. The screenshots below show the layout I'm using and an example of the generated help, respectively.

Do you have any tips on how to change the breadcrumb separator in the layout, or at least where to find the source code for it?

Thanks again for your help.

-Amy

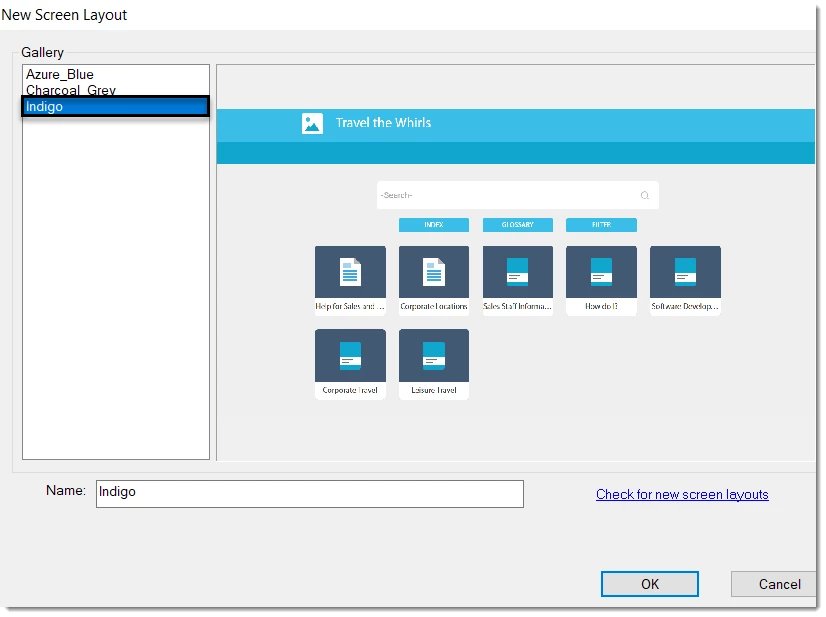

Responsive layout:

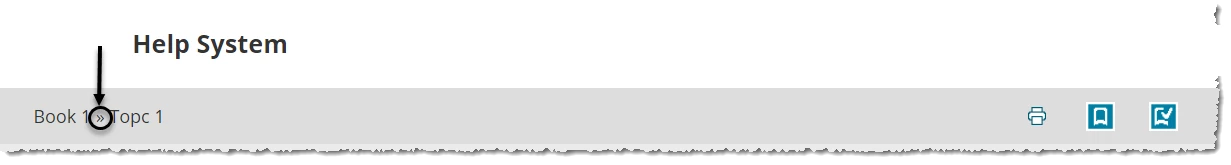

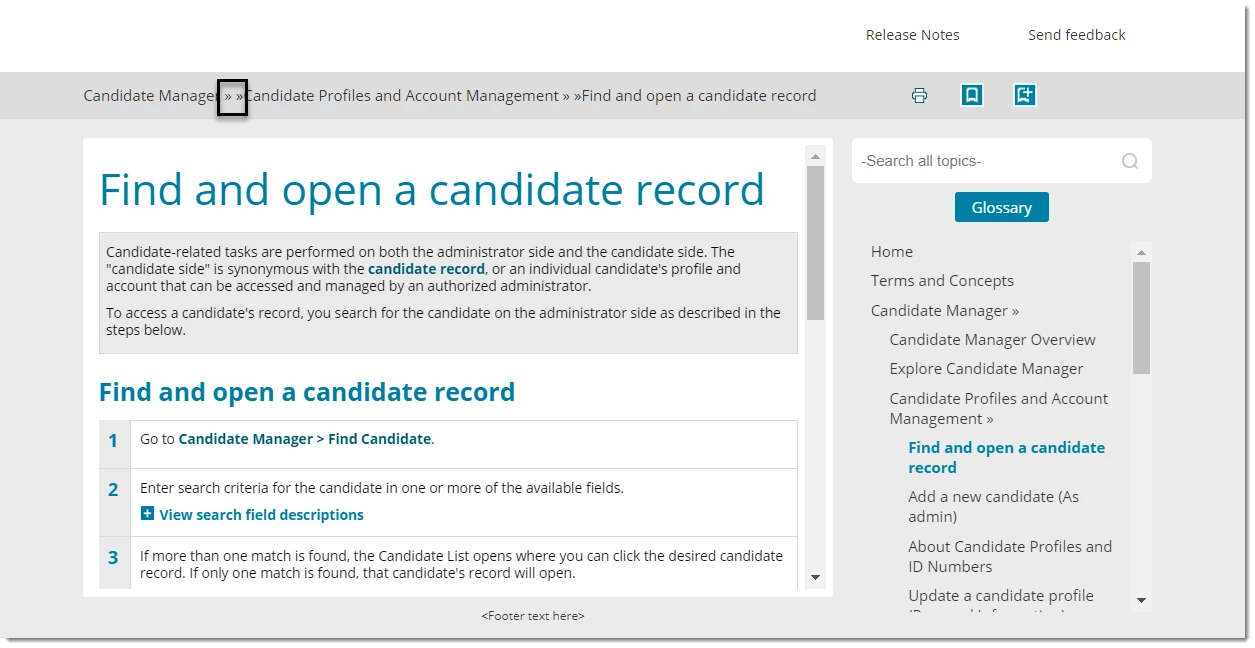

Example of breadcrumb separator displayed in generated output:

Peter Grainge

Community Expert

To change the separator that you are referring to would involve delving into the layout's CSS and I'm not sure you would find it there.

It's not elegant but one solution would be to add breadcrumbs to a master page where, as Steffan has pointed out, you can control the separator. That of course would give you two sets of breadcrumbs but you could set the ones you currently use to be the same colour as the background. They would still be there but not seen.
