Question

PDF generation not following Header styles version 2022.1.188

  • April 18, 2023
  • 6 replies
  • 384 views

Running RoboHelp 2022.1.188 on a windows PC.



I generate my PDF and what is set in topic as H1 is showing up as H2, H2 is showing up as H3, H3 as H4 etc. Whyyyyyy????

And no, I cannot change the settings in the topic because I publish frameless output and all the headings show up totally right on there.

Please help. I'm sooo confused.

Thanks,

Lori

    This topic has been closed for replies.

    6 replies

    Peter Grainge
    Community Expert
    Peter GraingeCommunity Expert
    Community Expert
    April 21, 2023

    I have revised this answer. Please see RH2022 PDF Templates (grainge.org) and in particular Settings > General which has been rewritten after further testing.

    ________________________________________________________

    My site www.grainge.org includes many free Authoring and RoboHelp resources that may be of help.



    Use menu (bottom right) to mark as Best Answer or to Highlight particularly useful replies. Found the answer elsewhere? Share it here.
    Peter Grainge
    Community Expert
    Peter GraingeCommunity Expert
    Community Expert
    April 21, 2023

    Try deselecting the options and using caps to differentiate the sections.

    ________________________________________________________

    My site www.grainge.org includes many free Authoring and RoboHelp resources that may be of help.



    Use menu (bottom right) to mark as Best Answer or to Highlight particularly useful replies. Found the answer elsewhere? Share it here.
    Peter Grainge
    Community Expert
    Peter GraingeCommunity Expert
    Community Expert
    April 19, 2023

    See the Settings section of this topic.



    In particular see Readjust Heading Levels As Per The Source TOC Hierarchy in the table.

    ________________________________________________________

    My site www.grainge.org includes many free Authoring and RoboHelp resources that may be of help.



    ________________________________________________________

    My site www.grainge.org includes many free Authoring and RoboHelp resources that may be of help.



    Use menu (bottom right) to mark as Best Answer or to Highlight particularly useful replies. Found the answer elsewhere? Share it here.
    LMS_90
    LMS_90Author
    Inspiring
    April 21, 2023

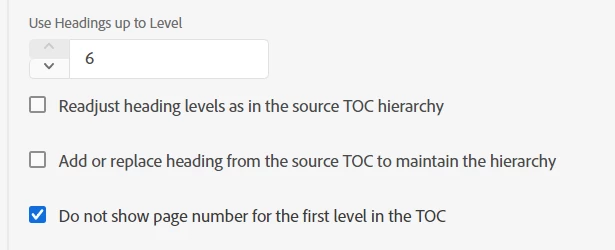

    Thanks for the insight. I followed the guidance and found the settings from the other post and turned them off:

    That fixed the content in my PDF to use the correct header styles. However, the TOC no longer follows the structure of the defined TOC that I created. I've very confused. I want my TOC to dictate order and structure of overall PDF, but within the sections, I want my heading styles followed. Is this just too much to ask??



    Thanks.

    Peter Grainge
    Community Expert
    Peter GraingeCommunity Expert
    Community Expert
    April 19, 2023

    Doh! I didn't think about that one. Thanks @Amebr for picking it up. That is likely the issue.

    ________________________________________________________

    My site www.grainge.org includes many free Authoring and RoboHelp resources that may be of help.



    Use menu (bottom right) to mark as Best Answer or to Highlight particularly useful replies. Found the answer elsewhere? Share it here.
    A
    Community Expert
    AmebrCommunity Expert
    Community Expert
    April 18, 2023

    @Peter Grainge In Classic there used to be a checkbox "Maintain HTML Heading levels" which would use the H1 etc from the topic rather than setting the heading levels to match the toc levels. Is there a similar setting in New UI? I don't have access to RH2022 right now to check.

    A
    Community Expert
    AmebrCommunity Expert
    Community Expert
    April 18, 2023

    Ooh! Perhaps play with the "Readadjust" and "Add or replace" checkboxes you can see in the second screenshot in this post. I've never used them but they sound relevant. 🙂

    https://community.adobe.com/t5/robohelp-discussions/problems-with-pdf-toc/td-p/13733743

    Peter Grainge
    Community Expert
    Peter GraingeCommunity Expert
    Community Expert
    April 18, 2023

    First of all Update 2 fixed some PDF issues so apply that. As you are on 2022.1 you have to follow this link https://helpx.adobe.com/robohelp/using/whats-new-robohelp-2022-release-update-2.html and click the link in the red box. I very much doubt that is the issue but there are other issues you may find when this one is out of the way.

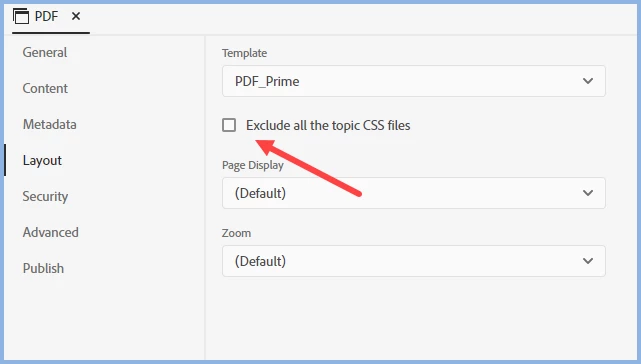

    Try changing this setting first.

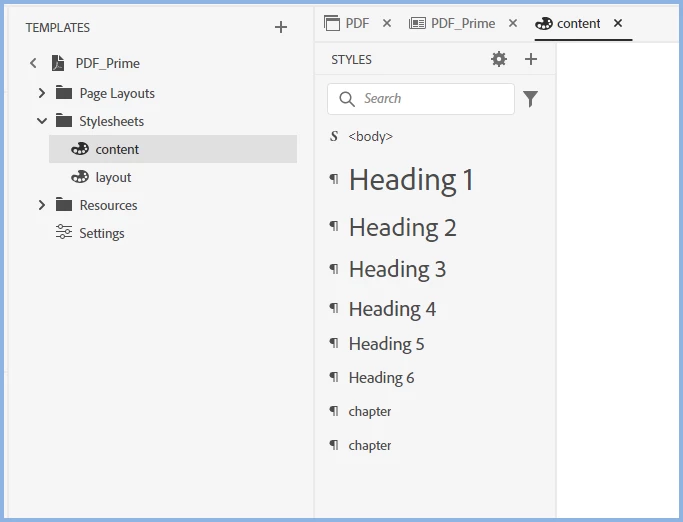

    Then apply a colour to H1 and H2 here to see if that affects things.





    I'm not sure what is causing the issue but try those things first.
