Problem with variables not excluding terms from searches

  • September 6, 2016
  • 1 reply
  • 1026 views

People,

I am having a problem with variables, when they are used in topic headings.

We produce two separate versions of a webhelp. The text is almost exactly the same, but the product has a different name in each version. In one version it is called FLOW; in another it is called Service Builder. We use user-defined variables to control what name is used to refer to the product, when we generate the webhelp.

So, I have (for example) a topic that begins with the heading:

Building a FLOW script

where the text occupied by ‘FLOW’ is provided by a variable with two values - FLOW, and Service Builder.

So, when I generate the Service Builder version of the web help, I set Robohelp to use the Service Builder variables set, and the text and the table of content headings all generate fine; FLOW is nowhere to be seen.

But, when I type ‘FLOW’ into the Search box, the system finds each of the three topics that are constructed like the example above, with a topic heading that includes the variable used to define the product name. Further, it displays them in the Search results using FLOW in the topic heading, not Service Builder (but when I open the topic, the text in the heading is rendered correctly).

In addition, the system uses ‘FLOW’, and not ‘Service Builder’ in topic headings found by the search regardless of what search term is used.

Has anyone come across this? Does anyone know a way to fix it, please?

Thanks in advance,

MAM

    This topic has been closed for replies.
    Correct answer Captiv8r

    Hi Rick,

    No, I wasn't able to solve the problem. The topic needs to be included in the search; and when it is found, the heading entered against it in the Topic Properties is used to identify it. That heading includes the product name, and there is no way that I have found to place a variable on the product name in the Topic Properties heading.


    What version of RoboHelp are you using?

    I'm using version 2015 Release. Before that was version 11.

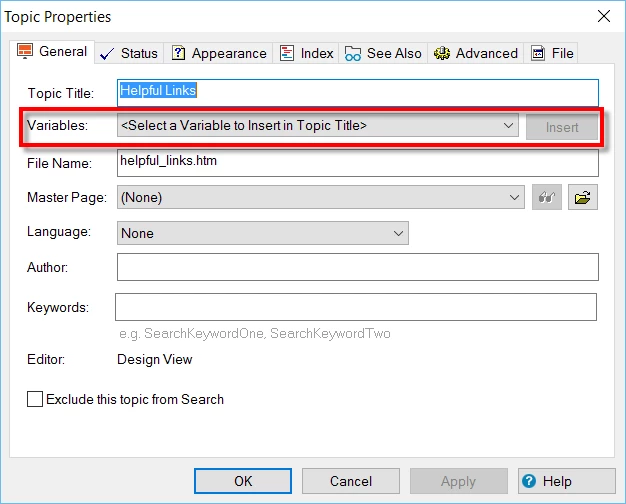

    In the 2015 Release version, my Topic Properties dialog looks like this:

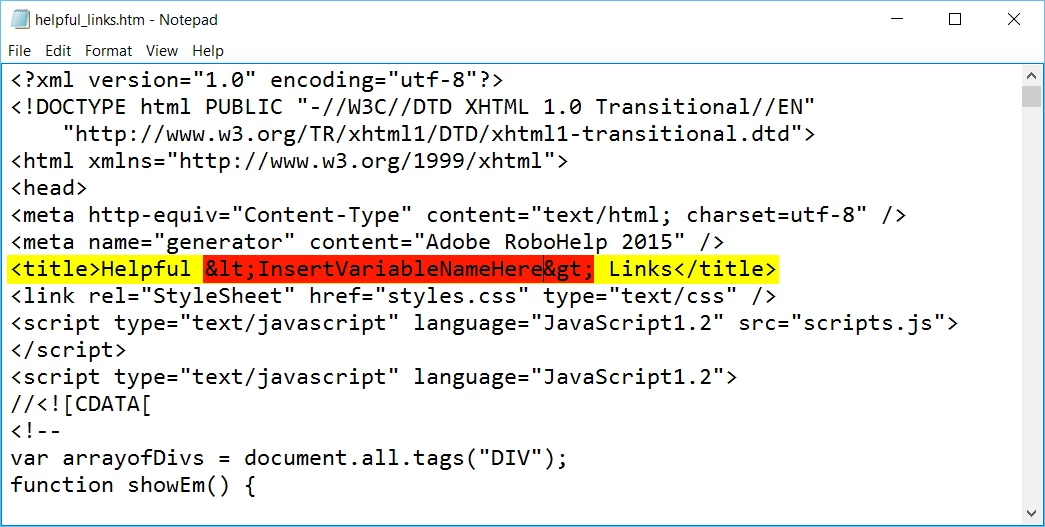

    I believe version 11 may have introduced the ability to have a variable in the Topic Title. If your version is earlier and doesn't seem to offer up a way via the dialog to deal with this, I'm wondering if you could fudge it by manipulating the code manually. For example, I see that when I use a variable in a Topic Title, I end up with this:

    So I'm wondering if you could just add in the bit that reads:

    <InsertVariableNameHere>

    Of course, you would want to replace the text InsertVariableNameHere with the actual name of your variable.

    It may fail miserably because the RoboHelp generation process doesn't know how to deal with it. But it might actually work! You won't know until you try.

    And even if it fails, I may be able to offer another approach that will allow you to overcome the issue.

    Cheers... Rick

    1 reply

    Captiv8r
    Captiv8r
    Legend
    September 6, 2016

    Hi there

    Can you copy the HTML of one of the affected topics and paste here for examination?

    Thanks... Rick

    M
    MaskahlAuthor
    Known Participant
    September 6, 2016


    <html>
    <head>
    <link rel="shortcut icon" href="whstart.ico">
    <title>Service Builder</title>

    <meta name="generator" content="Adobe RoboHelp 2015" />
    <meta name="description" content="WebHelp 5.50" />

    <meta http-equiv="Content-Type" content="text/html; charset=utf-8" />
    </head>

    <script type="text/javascript" language="javascript" src="whver.js" charset="utf-8"></script>
    <script type="text/javascript" language="javascript" src="whutils.js" charset="utf-8"></script>
    <script type="text/javascript" language="javascript" src="whmsg.js" charset="utf-8"></script>
    <script type="text/javascript" language="javascript" >
    <!--
    if (!window.gbWhVer||!window.gbWhUtil||!window.gbWhMsg)
    document.location.reload();
    //-->
    </script>

    <script type="text/javascript" language="javascript" src="whstub.js" charset="utf-8"></script>
    <script language="javascript">
    <!--
    var nWebhelpNavPaneMode = 1;   //1: DHTML 2:PureHTML 3:Noframe At all
    var strPaneDHTML  = "whskin_pdhtml.htm";  //whd_nvp10.htm  if tab enabled, whnframe.htm if tab disabled.
    var strPaneList   = "whskin_plist.htm";

    var strPane = "";

    var nViewFrameType = -1;

    if (!window.gAgent)
    {
    // low end browser, we don't even try to determine it.
    document.location = "whnjs.htm";
    }
    else
    {
    if (!gbNav4&&!gbIE4&&!gbOpera7&&!gbSafari)
      document.location = "whnjs.htm";
    else if (gbNav4 && !gbNav6 && ((gnVerMinor <= 4.06)))
      document.location = "whnjs.htm";
    else if (gbMac && gbIE4 && !gbIE5)
      document.location = "whnjs.htm";
    //figure out which mode is the best
    else
    {
      nViewFrameType=nWebhelpNavPaneMode;
      if (nWebhelpNavPaneMode==1)
      {
       var gbDHTML=(nWebhelpNavPaneMode==1);
       if (gbNav4&&(gnVerMinor < 4.1))                 nViewFrameType = 2;
       if (gbNav4&&(gnVerMinor == 4.6))                nViewFrameType = 2;
       if (gbIE4&&gbDHTML)                             nViewFrameType = 1;
       if (gbIE4&&gbSunOS&&nWebhelpNavPaneMode==2)     nViewFrameType = 2;
       if (gbNav4&&gbSunOS&&nViewFrameType==2)         nViewFrameType = 2;
       if (gbNav6&&gbDHTML)                            nViewFrameType = 1;
       if (gbMac)                                      nViewFrameType = 2;
       if (gbMac && gbNav6)                            nViewFrameType = 1;
       if (gbSafari3)                                  nViewFrameType = 1;
      }
    }
    }

    if (nViewFrameType!=-1)
    {
    var gbWindows = ((gAgent.indexOf("win") != -1) || (gAgent.indexOf("16bit") != -1));
    //The colordepth of the 16 color on Windows is 1.
    if ((gbWindows) && (gbNav4) && (window.screen) && (window.screen.colorDepth <= 4))
    {
        alert("WebHelp has detected that your display is set to 16 colours. For full WebHelp support, please set your display to use 256 or more colours.");
        nViewFrameType = 2;
    }

    //figure out which one is navpane
    // ReplaceMark:nViewFrameType = 1
    if (nViewFrameType == 1)
    {
      if (gbNav4 && !gbNav6)
       strPane = strPaneList;
      else
       strPane = strPaneDHTML;
    }
    else
      strPane = strPaneList;
    }
    //-->
    </script>
    <script type="text/javascript" language="javascript" src="whstart.js" charset="utf-8"></script>
    <script type="text/javascript" language="javascript">
    <!--
    if (!gbIE4&&!gbNav4&&!gbOpera7&&!gbSafari)
    document.location = "whnjs.htm";

    function CMRAgent( strID, strURL, strLabel, strFrameAttr )
    {
      this.m_strID = strID;
      this.m_strURL = strURL;
      this.m_strLabel = strLabel;
      this.m_strFrameAttr = strFrameAttr;
    }

    function CMRServer()
    {
      this.m_cAgents = new Array;
    }
    var cMRServer = new CMRServer;
    // GetServerInfo
    // Registry the agent array handled by webhelp
    // ReplaceMark:MRServer.strServerData
    //-->
    </script>

    <script type="text/javascript" language="javascript">
    <!--
    if (nViewFrameType!=-1)
    {
    var strHTML = "<frameset rows=\"32,*\" hostof=\"parent:toolbar!startpage:yes\" frameborder=\"0\" border=\"0\"> <frame src=\"whskin_tbars.htm\" id=\"toolbar\" frameborder=\"0\" border=\"0\" scrolling=\"no\" noresize=\"\" marginheight=\"0\" marginwidth=\"0\" title=\"Toolbar\"></frame> <frame src=\"whskin_frmset01.htm\"  frameborder=\"1\" border=\"1\" scrolling=\"auto\" marginheight=\"0\" marginwidth=\"0\"></frame></frameset>";
    document.write(strHTML);
    }
    //-->
    </script>

    <frameset cols="100%,*" frameborder=no border=0>
      <frame src="whnjs.htm">
      <frame src="whskin_blank.htm" noresize>
    </frameset>

    </html>

    Captiv8r
    Captiv8r
    Legend
    September 6, 2016

    I apologize, I see I wasn't clear enough.

    What you are showing is the HTML of the OUTPUT. I was hoping to see the HTML of the SOURCE topic in RoboHelp. Before output is generated.

    Sorry about that... Rick
