Question

Properties pane in Robohelp 2019 is empty

According to https://helpx.adobe.com/robohelp/using/format-content.html, I should be able to edit text fonts in the properties pane, but it is empty. I also do not see the Update Style icon. I am using Robohelp 2019. I do not see any way to edit text size, font, color, etc. I do have View - Property Panel turned on.

This topic is closed to new replies. Start a new post to keep the conversation going.

9 replies

Jeff_Coatsworth
Community Expert
Jeff_CoatsworthCommunity Expert
Community Expert
Apr 20, 2020 3:15 PM UTC

Make sure they install it as an Admin & apply all the patches that have come out since it was released.

Translate
    Community Expert
    AmebrCommunity Expert
    Community Expert
    Mar 3, 2020 2:48 AM UTC

    Also make sure you install the latest patches. As of today it should be Update 11 (2019.0.11 under the Help menu). Each patch has fixed a heap of bugs, and while I can't remember the details, I'm sure some have related to the properties panel.

    Translate
    lsb1098Author
    Known Participant
    Mar 3, 2020 3:52 PM UTC

    Ok thank you. I will have to coordinate with my IT department to get it re-installed.

    Translate
    lsb1098Author
    Known Participant
    Apr 20, 2020 2:54 PM UTC
    I just wanted to post a follow-up to this thread. I did have Robohelp 2019 re-installed, but I am still seeing the same problems. The properties panel is completely empty even when I use the sample projects like EmployeeCare3.
    Also, it still displays an error upon opening RH 2019 - Application Error - The application has run into an error. Please save your unsaved changes and restart from menu.
    That error pops up repeatedly - not sure if it is related to my empty properties or not.
    Is there something specific or out of the ordinary that must be done when installing? Unfortunately I am not the one doing the installation, but if there are any suggestions, I can pass them along to my IT department. Any help appreciated!
    Translate
    Peter Grainge
    Community Expert
    Peter GraingeCommunity Expert
    Community Expert
    Mar 2, 2020 7:54 PM UTC

    Even if you don't have all the updates applied, the samples should work. This looks more like a bad installation. Try uninstalling and reinstalling.



    Translate
    Use the menu (bottom right) to mark the Best Answer or Highlight particularly useful replies. Found the answer elsewhere? Share it here.
    Peter Grainge
    Community Expert
    Peter GraingeCommunity Expert
    Community Expert
    Mar 2, 2020 4:24 PM UTC

    That looks as if the topic has your own CSS applied to it.



    I want to suggest changing that but obviously you cannot via Properties as things are so first make a copy of the project.



    Open a topic and click the second icon top right to view the topic in source view. You will see a line something like this but pointing to your CSS.



    <link rel="stylesheet" type="text/css" href="assets/css/default.css" />



    Change the path to point to the supplied default.css and save. Do the Properties then become available.



    If not close the project and using File Explorer delete the files in the .rh folder of your project.



    If still not joy, open one of the supplied sample projects and see what happens.



    Let us know what happens.







    Translate
    Use the menu (bottom right) to mark the Best Answer or Highlight particularly useful replies. Found the answer elsewhere? Share it here.
    lsb1098Author
    Known Participant
    Mar 2, 2020 7:39 PM UTC

    I have this line in the source view:

    <link rel="stylesheet" href="assets/css/default.css" type="text/css" />



    I also see that I do have a default.css in the assets/css folder under the contents folder.

    I tried deleting the .rh folder files also, but the properties pane is still empty.

    I also opened a sample project and created a new project - both still had empty properties.

    Translate
    Peter Grainge
    Community Expert
    Peter GraingeCommunity Expert
    Community Expert
    Mar 1, 2020 12:46 PM UTC

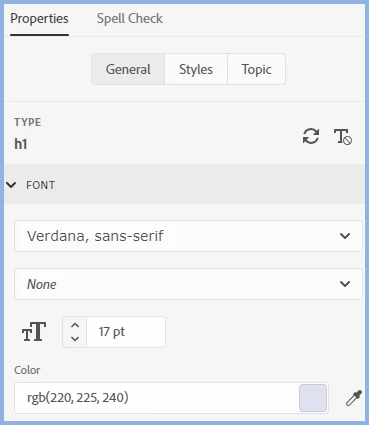

    When you click in some text and go to Properties > General you should see this. Hover over the first icon and you should see Update Style in bubble text.





    Are you saying that the dropdowns shown below show empty? The font can take a few seconds to display but should work.





    Translate
    Use the menu (bottom right) to mark the Best Answer or Highlight particularly useful replies. Found the answer elsewhere? Share it here.
    lsb1098Author
    Known Participant
    Mar 2, 2020 3:58 PM UTC

    This is what I see in Properties when I click on text - the Properties is empty (Styles and Topic are also empty):

    When I first open RoboHelp (and sometimes when I open a file in the contents), I see this error: Application Error - The application has run into an error. Please save your unsaved changes and restart from menu: Help > Restart RoboHelp.

    I don't know if this error is also affecting the properties, since I don't really know what is causing the error.

    Translate
