Rh2015 Image styles won't apply

Forum|Forum|9 years ago
May 6, 2016
2 replies
752 views

Hi again,

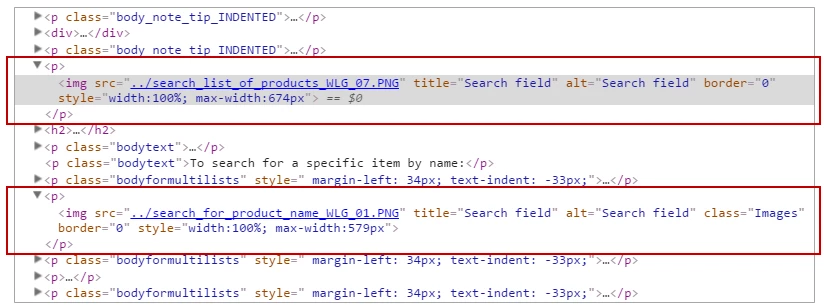

I've successfully pulled my projects into RH2015, but my image styles won't apply. So I copied my CSS from RH11 and used it in RH2015. The image styles are in the CSS, but I cannot apply them to any new images I bring in, and when I generate, a 'P' style is being applied to all my images. All the rest of the styles seem to be applying just fine. This is how it appears when I inspect:

As a side question, when I am using RH2015 with the styles and formatting pod open, this pod constantly flashes whenever I do something in Design Editor. How do I get it to stop doing that... it's annoying when I'm working.

Thanks,

Pam

HTML5 layout

This topic has been closed for replies.

Captiv8r

Legend

Hi Pam

Out of curiosity, what are the attributes you apply to images using CSS?

Thanks... Rick

Auntie_Em-PamAuthor

Known Participant

Rick,

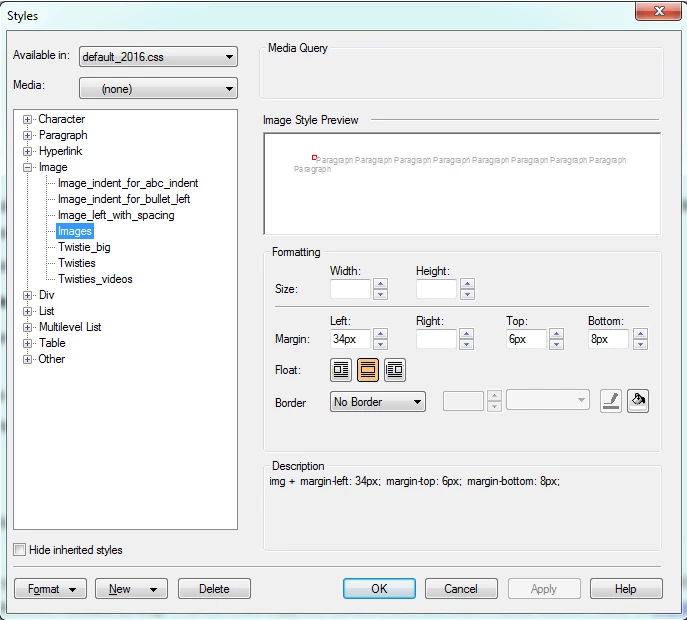

I've checked the images styles several times and they all seem to be in order. none was selected for Media on all images styles; they are all in the same CSS; this CSS worked in RH11, it is only the image styles that now will not work.

I tried copying the CSS again from RH11 and put it into RH2015 - image styles still don't work, they seem to be wrapped in a <p> style and we can't figure out why. If you want, I can send you the CSS in its entirety, but that seems pointless since everything worked fine in RH11 (and yes, I always select the image before I apply the style). Thanks again.

Images styles from my CSS:

img.Image_indent_for_bullet_left {
margin-left: 36px;
margin-top: 6px;
margin-bottom: 3px;
}
@media only screen and (min-width: 1024px) and (max-width: 99999px){
img.Image_indent_for_bullet_left {
margin-bottom: 3px;
margin-left: 36px;
margin-top: 6px;
}
}

img.Image_indent_for_abc_indent {
margin-top: 6px;
margin-left: 69px;
margin-bottom: 6px;
}
@media only screen and (min-width: 1024px) and (max-width: 99999px){
img.Image_indent_for_abc_indent {
margin-left: 69px;
margin-bottom: 6px;
margin-top: 6px;
}
}

img.Image_left_with_spacing {
margin-left: 0px;
margin-top: 6px;
margin-bottom: 10px;
}
@media only screen and (min-width: 1024px) and (max-width: 99999px){
img.Image_left_with_spacing {
margin-top: 6px;
margin-left: 0px;
margin-bottom: 10px;

@media only print{
img.Images {
margin-top: 8px;
margin-bottom: 6px;
margin-left: 34px;
}
}

@media only screen and (min-width: 200px) and (max-width: 320px){
img.Images {
margin-top: 8px;
margin-bottom: 6px;
margin-left: 34px;
}
}

@media only screen and (min-width: 400px) and (max-width: 1280px){
img.Images {
margin-top: 8px;
margin-bottom: 6px;
margin-left: 34px;

Peter Grainge

Community Expert

Are you selecting the image first? I just tested RoboHelp 2015 and it worked as expected.

Re the flashing, please report it as a bug as it is a known issue. Please follow this link and report it as a bug. The more people who do, the more likely it is to get investigated. You can also use the link to request new features.

https://bugbase.adobe.com/index.cfm

See www.grainge.org for RoboHelp and Authoring information
