RH2017 - Design View Changing <ol> to <ul>

Forum|Forum|7 years ago
December 20, 2018
2 replies
647 views

I have some text that I would like to style as a particular type of ordered list, and have tagged it as <ol> accordingly. But every time I open the topic in Design View, I see it has switched to a bullet instead of an ordered list. When I check HTML, sure enough RoboHelp has replaced my <ol> tag with a <ul> tag. This is ruining my styled text. I'd prefer to keep using the Design View to edit the topic. Is there any way to make RoboHelp leave my markup alone?

Here is the HTML...or it should be; for some reason the raw html thingy isn't showing up properly . I will share the CSS tomorrow upon request if it would be helpful to answering the question.

<div class="mandreq">
     <div class="mandreqtop">
          A notice of appeal must...
          <ol class="mandreqtop">
               <li>be made in writing or another form authorized by the tribunal's rules</li>
          </ol>
     </div>
     <div class="mandreqbottom">
          <div class="mandreqimg">
               <img src="../blah/blah.png" border="0" />
          </div>
          <div class="mandreqtext">
               Blahblah
         </div>
     </div>
</div>

Message was edited by: the original poster, who doesn't know why the discussion editor isn't working either

This topic has been closed for replies.

Correct answer SHillaby

You know what? I'm just going to use the multilevel list feature in RH.

Why re-invent the wheel, right?

SHillabyAuthor

Inspiring

After trying something a little later in the topic (wanting to have a list that re-starts at C after being interrupted by some bullets), I think I've identified the problem -- the counter property.

Does anyone know why RoboHelp doesn't recognize the counter property and instead decides to change my <ol> to <ul>? Can I trick it into not "helping"?

SHillabyAuthorCorrect answer

Inspiring

You know what? I'm just going to use the multilevel list feature in RH.

Why re-invent the wheel, right?

Peter Grainge

Community Expert

The code does not look like it was written in RoboHelp so I am wondering if you have used some other editor.

One of RoboHelp's features is that it tries to correct code errors, which most of the time is useful but sometimes you want to say "don't fiddle about with my code". I wonder if this is one.

In particular, I notice in Word the logo is in a table cell with the text alongside. I'm wondering if that is the case in RoboHelp. If not, images are only supported in single level lists in RoboHelp. There's more at Lists in RoboHelp

I think your decision to use RoboHelp's own list functionality could save something around you getting seriously damaged.

See www.grainge.org for free RoboHelp and Authoring information.

@petergrainge

Use the menu (bottom right) to mark the Best Answer or Highlight particularly useful replies. Found the answer elsewhere? Share it here.

Peter Grainge

Community Expert

Try a screenshot of the HTML instead.

You say "a particular type of ordered list". I'm not sure what you mean by "particular type". There are ordered lists (numbered) and unordered lists (bullets) and you can create classes to give different appearances.

I am also not clear on why you are going into the HTML rather than just using the list icons.

See www.grainge.org for free RoboHelp and Authoring information.

@petergrainge

Use the menu (bottom right) to mark the Best Answer or Highlight particularly useful replies. Found the answer elsewhere? Share it here.

SHillabyAuthor

Inspiring

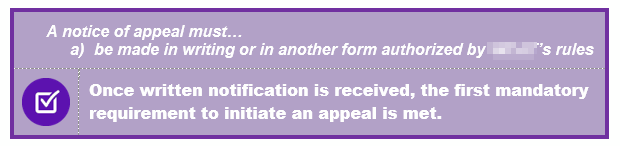

Haha, "particular type" is what I write when I'm lazy and running out of time in the workday. In this case I am trying to get an ordered list with a parenthesis after the lower-case alpha. It has to be a lower-case alpha with a parenthesis because it is a quote from a legal document. Essentially, the end product I need is something like this (from the Word document):

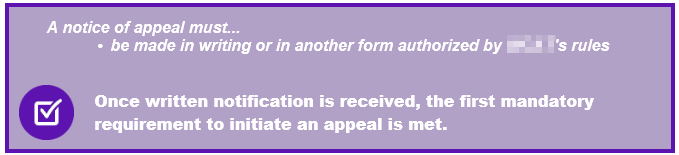

Instead, RH keeps rejecting my <ol> tag and replacing it with <ul> so I get:

I am using flex boxes to create the box above and my hope is to get it to squish appropriately when people resize their windows (so that they can have the help file open next to their working window). At first I just did the "list" (I know a list with only one item isn't really a list) just as a normal line of text, but then I noticed when it was resized the indent didn't line up, which looked bad.

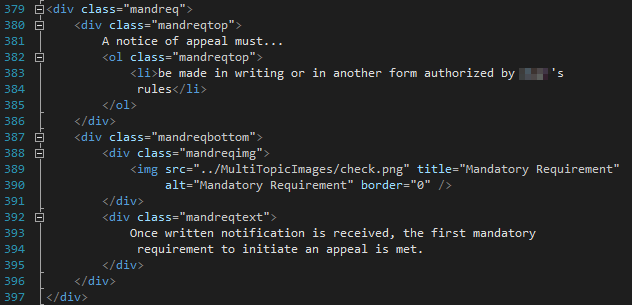

Here is the HTML for the list:

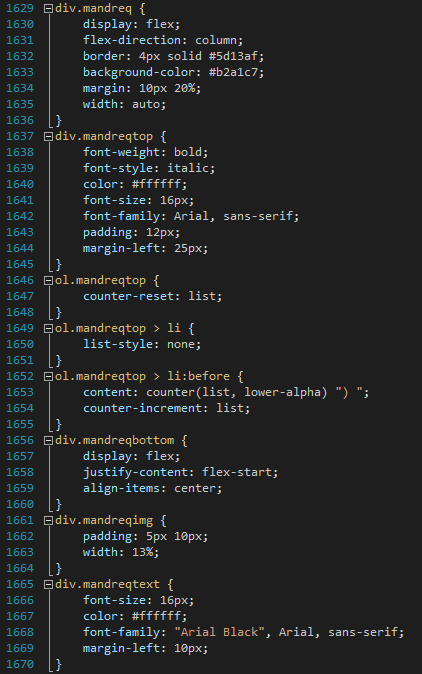

And here is the CSS:
