Known Participant

Question

RH2022 ~ how to link from child TOC to topic in another child project?

Forum|Forum|1 year ago
September 12, 2024
4 replies
331 views

Hello, community.

I’m upgrading from RH2019 Classic to RH2022.3.93.
I’m configuring six child projects merged into one parent.
Using Frameless output with Studio template.
Generally links between child projects are working fine.

I want to link from the TOC of one child to a topic in another child (relative link?) - - or redirect from a blank topic.

I’ve reviewed what I can find in the RH community and grainge.org, but perhaps have missed the correct info and have a few questions. Some of the answers I’ve seen are not for Frameless or are for previous versions of RH (also, I’m not sure if what I want to do is possible with Frameless.)

What I’ve seen so far is either:

<meta HTTP-EQUIV=refresh CONTENT="0;URL=First_Topic.htm"> but that hasn’t not worked yet. Is this the correct syntax?
startpage.htm#mergedProjects/path/target_topic.htm
remove rhpj and contents from the link path

Insights or solutions are appreciated.

Thanks!

This topic has been closed for replies.

Peter Grainge

Community Expert

I knew there was another way but couldn't recall it quick enough.

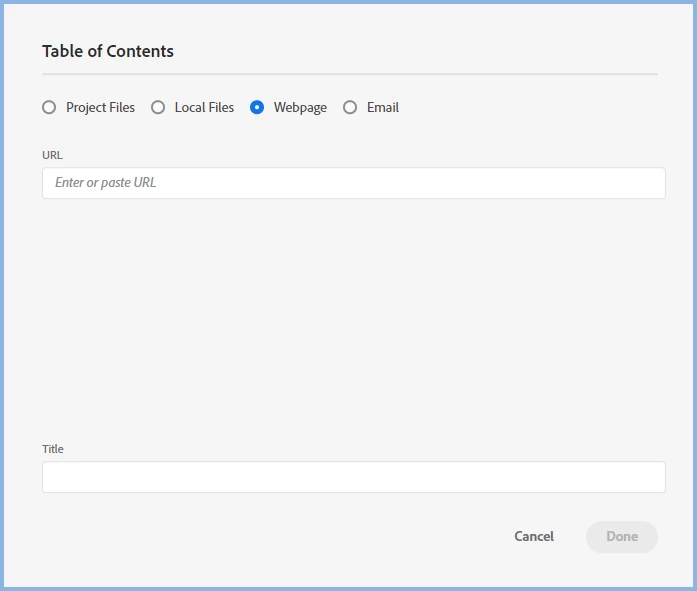

In your TOC right click in a blank area and click Insert Topic to display this dialog. Work out the URL of the target and insert that. It will open in fresh tab though. You might not like that.

________________________________________________________

My site www.grainge.org includes many free Authoring and RoboHelp resources that may be of help.

Use menu (bottom right) to mark as Best Answer or to Highlight particularly useful replies. Found the answer elsewhere? Share it here.

Peter Grainge

Community Expert

Once I realised what the problem you faced was, I recalled that this is a problem in the new UI versions.

I think the only way you might acheive this is to create a topic in the project where you want the link. That topic will be a redirect. There is information about that in the PDF that describes merged help in Classic versions. https://www.grainge.org/RoboHelp/Merged_Help/Merging_Classic.htm

Your TOC will open the redirect but it should then seamlessly go to the target topic.

________________________________________________________

My site www.grainge.org includes many free Authoring and RoboHelp resources that may be of help.

Use menu (bottom right) to mark as Best Answer or to Highlight particularly useful replies. Found the answer elsewhere? Share it here.

Peter Grainge

Community Expert

Oops. I missed the "link from TOC" bit.

I will have another look later today.

________________________________________________________

My site www.grainge.org includes many free Authoring and RoboHelp resources that may be of help.

Use menu (bottom right) to mark as Best Answer or to Highlight particularly useful replies. Found the answer elsewhere? Share it here.

Peter Grainge

Community Expert

I have corrected your post as my site is grainge.org. grainge.com is a firm of architects! -:)

The correct format is simply a straight URL between the two projects such as

../Child_One/Child_One_Topic_One.htm">Child One - Topic One

That would be from a topic that is in the contents folder with no further folders to a similar topic in another child project.

../ goes up to mergedProjects and the rest goes down to the required topic. You will require further instances of ../ if the project with the link is in a sub-folder.

I have to ask though why are you doing this the hard way with hand coding? If you set up your projects in the way described on my site, you can create your links using the UI and let RoboHelp do the coding. The is a small demo merge you can download from my site. Try it.

________________________________________________________

My site www.grainge.org includes many free Authoring and RoboHelp resources that may be of help.

Use menu (bottom right) to mark as Best Answer or to Highlight particularly useful replies. Found the answer elsewhere? Share it here.

mjjhhcAuthor

Known Participant

Hi, Peter,

Thanks for your help.
I’m missing something. I’m sure I’ll figure it out right after I update the post, prob the next combo I try /sigh.

RECAP:

[1] Crosslinks from a child htm page to a different child htm page work fine using the picker/UI. (So I figure I setup my folders correctly as indicated in your RH tour; again, I could have missed something).
[2] TOC links from a child to a topic in another child have not worked. (NOTE: it works in 2019 Classic and the upgraded RH 2022 TOC link also works to the old server!)

I expected to open the demo and see a TOC link in a child project to a topic in another child project, but I did not see it (I picked wrong demo?).

I tried creating TOC cross links in the demo and also in my projects but was unsuccessful.
I guess it’s entering the right combination of the details?
MY RESULTS:

OPTION	PATH/SYNTAX	RESULT
Webpage	https: <full path>	File not found
Webpage	<full path> without protocol prefix	File not found
Local Files	Rhpj:	Click link; nothing happens
Local Files	../<relative link>	LOG says [1] Skipped copying external file; [2] Failed to find topic: Also, TOC link does not publish
Project Files	No picker available	NA

Please let me know my error or how to create the TOC link to a topic in another child project in your demo.
thanks again!
