Table borders offset in PDF output

  • May 12, 2011
  • 1 reply
  • 669 views

I am using RoboHelp HTML, version 9 and I need to deliver two outputs for my documentation: WebHelp and PDF.

My table borders look the way I want them to in WebHelp and Word, single line and thin (1px).

But when we go to PDF, I get two sets of lines, one all the way around my cells, another with gaps of white space.

I think its something to do with 3d borders not getting totally eliminated.

I've added "table-collapse: collapse;" to all my table styles.

Any ideas?

Note: If I create a table originally in Word with thin single line borders, it looks fine in PDF.

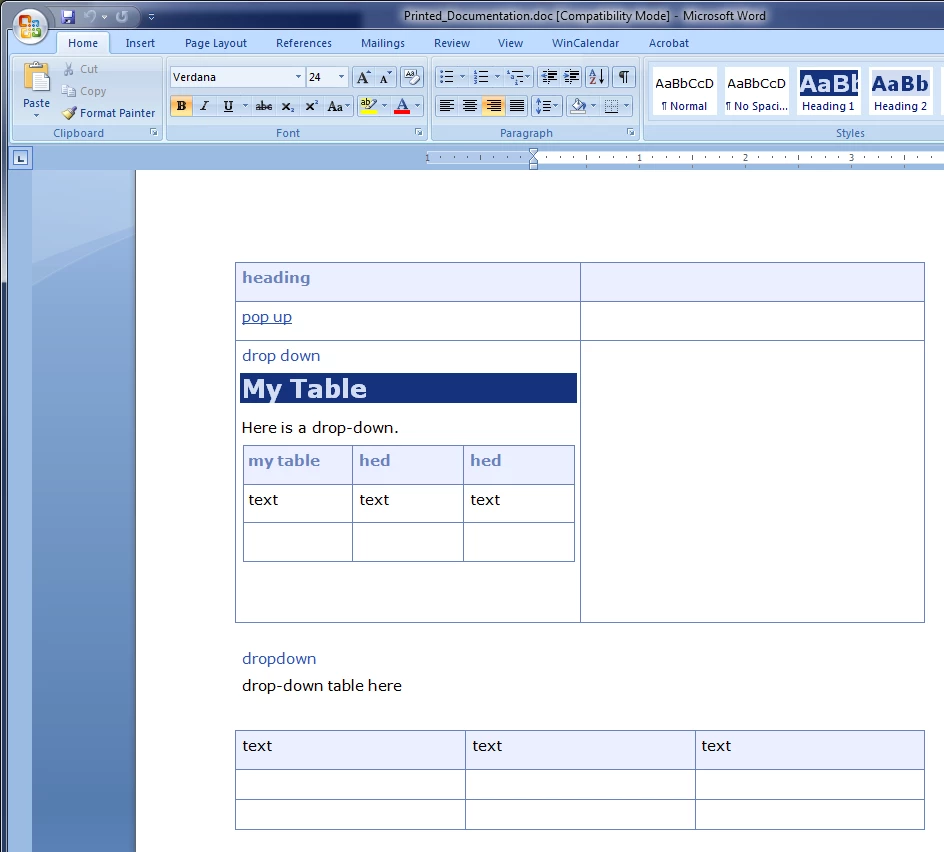

Here's how it looks in WebHelp and Word...

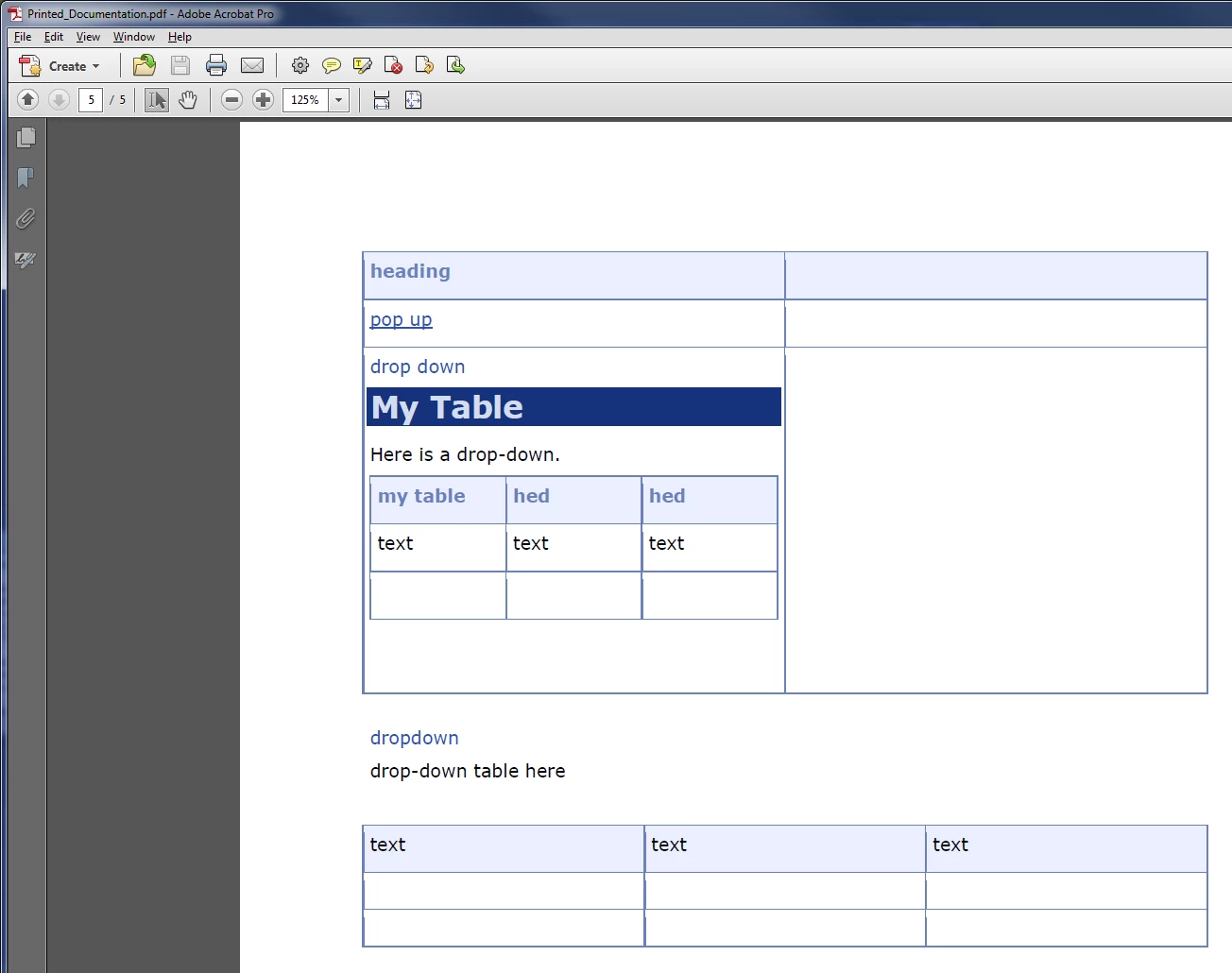

And then in PDF...

    This topic has been closed for replies.

    1 reply

    Peter Grainge
    Community Expert
    Peter GraingeCommunity Expert
    Community Expert
    May 17, 2011

    That looks remarkably like the CSS from my website. If it is, then I have experienced problems when using Adobe products to create the PDF. Try a freebie PDF generator.

    See www.grainge.org for RoboHelp and Authoring tips

    @petergrainge

    Use the menu (bottom right) to mark the Best Answer or Highlight particularly useful replies. Found the answer elsewhere? Share it here.
    G
    george509Author
    Participant
    May 17, 2011

    Peter,

    Yes, as I mentioned in an earlier post, I really like the help design on your web site. I researched many looks in preparing for a new stylesheet project. Ended up emulating a lot of your elements rather than reinvent the wheel.

    Hope you are OK with that. Imitation is the sincerest form of flattery (definitely in my case).

    Anyhow, I figured out my problem. The CSS for my original tables was using 5px padding all around. In Word output, this gets converted to table cell margins.

    And that's what the PDF conversion doesn't like. Take out the original CSS padding--or the converted Word cell margins--and the problem goes away, leaving clean unbroken table lines in the PDF.

    Best regards.

    Peter Grainge
    Community Expert
    Peter GraingeCommunity Expert
    Community Expert
    May 17, 2011

    No problem with using the CSS or copying bits of it. Glad you fixed it.
