Thumbnails not working in RH 2019

Forum|Forum|6 years ago
August 12, 2019
5 replies
1833 views

Hi, I've searched this forum and Adobe help and so far haven't found any answers. I am a relatively new user to RH so don't know if something has not been set up right or there are other reasons.

I am trying to turn an image in a topic into a thumbnail. I've watched the Adobe Reimagined video ( which seems straightforward) but I don't get the same result.

I have dragged a png file from my images folder into a topic, then clicked the thumbnail box and entered the thumbnail size. When I have gone to preview I don't get the thumbnail and my image is just the same as it appears in the topic. If I generate - its still the same sized image - no thumbnail.

The html code shows: <img data-thumbnail="150 90" src="../assets/images/Setup screen.png" /> Is there some html code missing that will make this work?

Thanks

Ali

create thumbnail

This topic has been closed for replies.

Correct answer johndaigle

Can you try in one of the sample projects using the content provided?

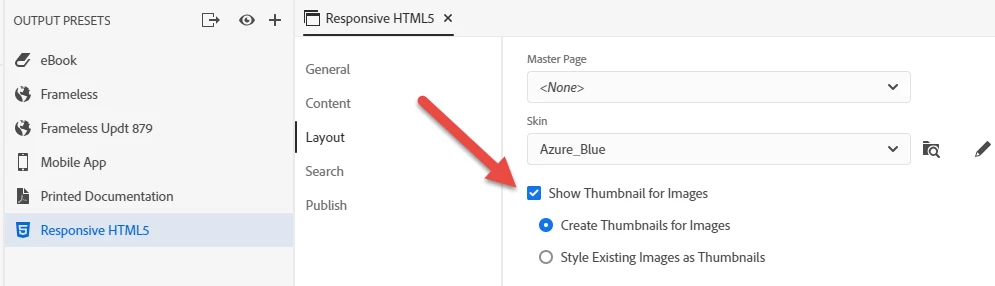

Did you check the Output Preset settings? While important to tick "Use thumbnail" in Image Properties, it's also easy to forget that you must also enable use of Show Thumbnail for Images in Output Preset.

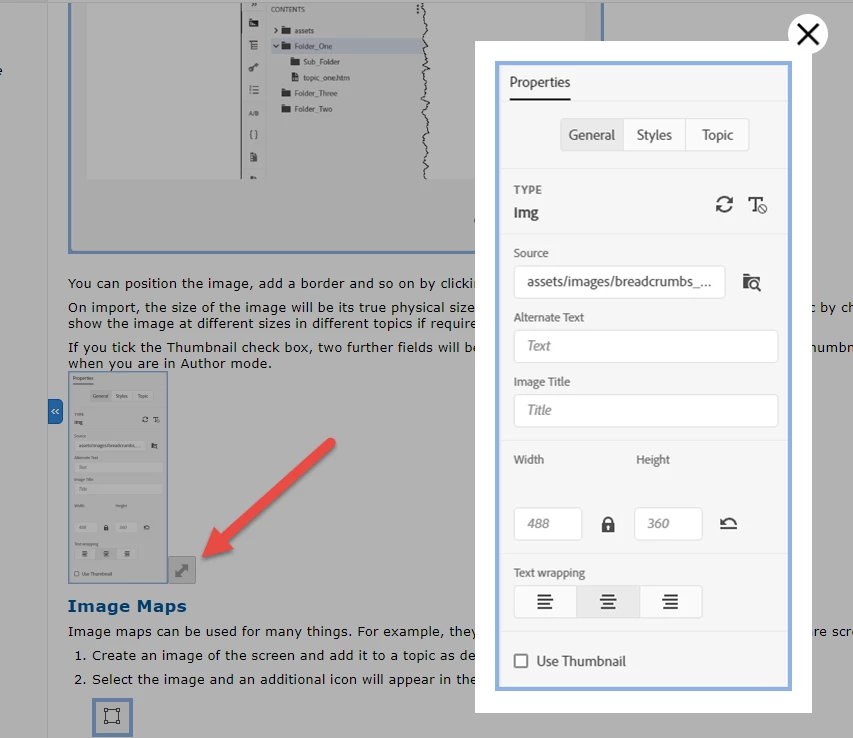

Here is what it should look like in the generated output after the user clicks on the diagonal corner arrow..

Hope this helps.

John

John Daigle

Adobe Certified RoboHelp and Captivate Instructor

Newport, Oregon

www.showmethedemo.com

M

martinl83372021

Inspiring

Hi, Peter.

Okay, will do. Thanks!

Peter Grainge

Community Expert

This is mostly a user to user forum. If you want to register something with Adobe you need to contact them direct or file a bug report.

Use the menu (bottom right) to mark the Best Answer or Highlight particularly useful replies. Found the answer elsewhere? Share it here.

M

martinl83372021

Inspiring

ATTENTION ADOBE TECH SUPPORT: please make note that I've had this problem, too -- and, what's worse, RH started throwing the "restart" error every time I tried to generate output.

This is in RH 2019 (new UI). I inserted an image and selected "Use thumbnail." That's when I started getting the "restart" error. I've just spent an hour-plus, trying to troubleshoot this. I deleted the image and returned everything to where it was. Still, kept getting the "restart" error. (Couldn't be any other cause since I haven't worked on this project in over a week. And I've only made these several changes today.)

Thank the gods I came upon John D's solution in this thread. Following his solution, I edited my output preset selecting "Show thumbnail for images."

Now I no longer get the "restart" error. THIS SEEMS TO BE A BUG, NO?

Thank you.

K

Karin Albrecht

Legend

I am already successfully using thumbnails. I can also not see the thumbnail in the preview, but in the output with the settings John stated, it works fine. However, I had a couple of issues with thumbnails in IE11 browser. Which browser are you using? Have you tried different browsers?

Kind regards

Karin

P

Peter_Grainge_UK

Participant

I believe thumbnails appearing as thumbnails in authoring and preview is on the list of things to be changed.

See www.grainge.org for free RoboHelp and Authoring information.

@petergrainge

A

Amebr

Community Expert

I haven't tried using thumbnails yet, but I assume data-thumbnail="150 90" reflects the dimensions you entered. Reading Peter's Robohelp Tour, it sounds like it should display the thumbnail when you preview.

Can you confirm you have all the patches installed - should be up to 8?

The other test you could try (shouldn't make a difference, but it's quick to try) is change the image filename to remove the space - you can replace it with an underscore or just delete. Does that make a difference?

alisonc98195345Author

Participating Frequently

Thanks for your reply. Yes those are the dimensions I entered. I am on 2019.0.8 so up to date. I swapped the file for another one that has no spaces or underscores and it made no difference to the outcome. Still no thumbnail.

I've just tried creating a whole new project, created images folder within project and copied in a couple of images, then added an image to a new topic > Use Thumbnail > entered new coordinates (just in case something was corrupted) but made no difference either.

A

Amebr

Community Expert

Can you try in one of the sample projects using the content provided?
