Troubles creating PDF with SVG images

Forum|Forum|2 years ago
October 18, 2023
7 replies
1332 views

Hi,

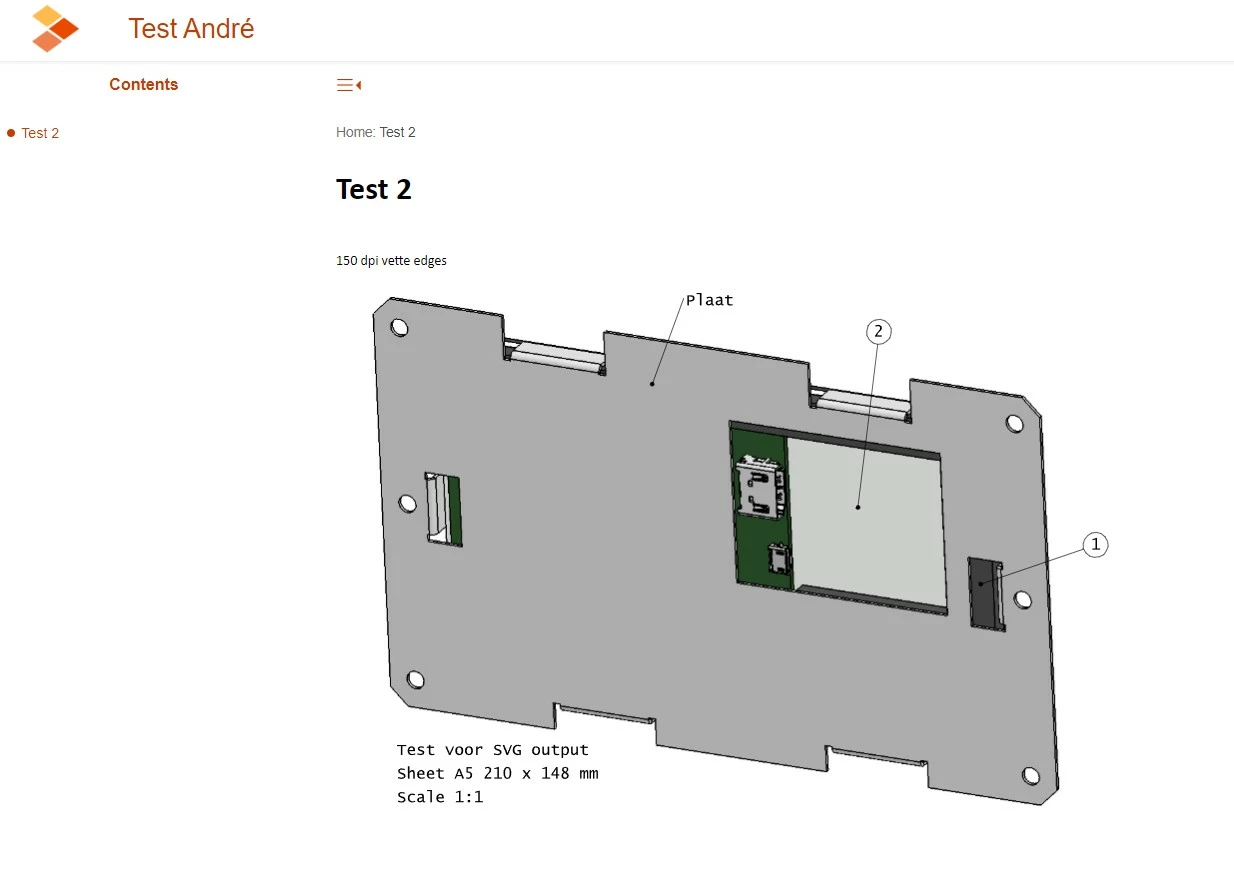

I am trying to use some pictures in SVG format in RoboHelp. When creating a PDF, the images get totally crushed. However in the frameless output they look allright.

What can be wrong? Is it a SVG error or a RoboHelp PDF creation error?

Can someone help me out please?

Regards,

André Bergsma

Test_2.pdf

This topic has been closed for replies.

Peter Grainge

Community Expert

Correction. The demo project shows colours in frameless but black and white in PDF.

Time to take it up with Support.

________________________________________________________

My site www.grainge.org includes many free Authoring and RoboHelp resources that may be of help.

Use menu (bottom right) to mark as Best Answer or to Highlight particularly useful replies. Found the answer elsewhere? Share it here.

André2331200264sqAuthor

Inspiring

We hed an internally discussion about using SVG image formats. More applications do have issues handling SVG format. Therefore we concluded not to continue with this file format and find another format to use in RoboHelp.

Thanks everyone for helping me.

Regards,

André Bergsma

Peter Grainge

Community Expert

My own preference is for the PNG format.

________________________________________________________

My site www.grainge.org includes many free Authoring and RoboHelp resources that may be of help.

Use menu (bottom right) to mark as Best Answer or to Highlight particularly useful replies. Found the answer elsewhere? Share it here.

Peter Grainge

Community Expert

It is not a PDF setting. The project you downloaded is the same one that created the demo where you see colours.

I will create a new output later but it seems to be something at your end.

________________________________________________________

My site www.grainge.org includes many free Authoring and RoboHelp resources that may be of help.

Use menu (bottom right) to mark as Best Answer or to Highlight particularly useful replies. Found the answer elsewhere? Share it here.

André2331200264sqAuthor

Inspiring

Thanks Peter.

Peter Grainge

Community Expert

@André2331200264sq Is that a Word document created from RoboHelp or working directly in Word?

If the former, then try the PDF settings first. If nothing there helps then I suggest for this one you need to go to Adobe Support. See https://helpx.adobe.com/contact/enterprise-support.other.html#robohelp for your Adobe Support options. The email link tcssup@adobe.com is recommended as it reaches a team dedicated to Technical Communication Suite products including RoboHelp.

If they don't have a solution, then create a bug report. Please follow this link to report bugs or request new features. https://tracker.adobe.com. Post the link to your bug report / feature request in this thread and others can vote for it. The more people who do so, the higher it gets prioritised.

________________________________________________________

My site www.grainge.org includes many free Authoring and RoboHelp resources that may be of help.

Use menu (bottom right) to mark as Best Answer or to Highlight particularly useful replies. Found the answer elsewhere? Share it here.

André2331200264sqAuthor

Inspiring

It is a normal Word document.
When I create a Word document from RoboHelp, the image disappears in the output.

I think this one is for the RoboHelp support.

Thanks for your help Peter.

Peter Grainge

Community Expert

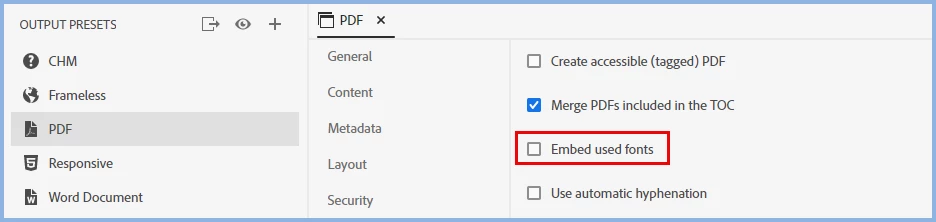

Try selecting this setting.
Download the project at https://www.grainge.org/pages/authoring/fonts/fonts.htm and upgrade it. See if it works there. The project was set up for online but hopefully should work for PDF.

________________________________________________________

My site www.grainge.org includes many free Authoring and RoboHelp resources that may be of help.

Use menu (bottom right) to mark as Best Answer or to Highlight particularly useful replies. Found the answer elsewhere? Share it here.

André2331200264sqAuthor

Inspiring

Hi Peter,

I selected Embed used fonts but that makes no difference, same result.

Could the problem be a result of the kind of image? It is a shaded image with edges and colored faces. When I change it to only edges (lines) then it looks good.

Peter Grainge

Community Expert

I saw this after my previous reply. I'm no SVG expert but it does seem to be specific to your image. To confirm that, try the sample project I created to see if that works OK as well.

________________________________________________________

My site www.grainge.org includes many free Authoring and RoboHelp resources that may be of help.

Use menu (bottom right) to mark as Best Answer or to Highlight particularly useful replies. Found the answer elsewhere? Share it here.

Jeff_Coatsworth

Community Expert

Never used SVG images (hardly use any at all), but I'd be tempted to put them in a Word doc & PDF that to see if there are any issues with the result. If there is, then it's probably an issue with the image; if it's fine, then it could be something going sideways in RH in the PDF creation bit.

André2331200264sqAuthor

Inspiring

I'll try that. Thanks for the tip Jeff.

I come back with the result.

André

André2331200264sqAuthor

Inspiring

I put the image in a Word doc and printed it as PDF. No issues, it looks fine.
I suppose it is a RH PDF creation issue because the frameless output is ok as well.

Jeff_Coatsworth

Community Expert

What version of RH are you using?

André2331200264sqAuthor

Inspiring

Hi Jeff,

I use 2022.3.93 now.

André2331200264sqAuthor

Inspiring

When I look at the texts, they are on the right place. It is the shaded part that is distorted.
