How to get 3D Shape / Object to reveal / draw itself

Community Beginner ,
May 11, 2021 May 11, 2021

Copy link to clipboard

Copied

Hi, I have a 3D object in the shape of a "question mark". I want to know how to animate it so it looks like it's drawing itself? In the picture I have attached hopefully you can see how I want it to be animated.



I am familiar with how to do this type of effect in 2D i.e the same way how you would make a handwriting effect. But I cannot find a way to make a 3D object draw/reveal itself.



Hopefully someone can help. Thanks, Ben.



2005 logo money-01.jpg

TOPICS
How to

Views

564

Likes

Translate

Translate

Report

Report
Community guidelines
Be kind and respectful, give credit to the original source of content, and search for duplicates before posting. Learn more
community guidelines

correct answers 1 Correct answer

Adobe Community Professional , May 12, 2021 May 12, 2021
If you need full 3D control and texturing etc, than the advice above is spot on.   But if your requirements are less complex, it's good to remember that AE does plenty of 3D stuff on its own.  You can create fake 3D extrusions of any AE layer, like text and shape layers, which allows you to animate with all the usual AE tools.   The image below is a question mark that is "drawn" off with the stroke tool on a matte layer.  It's then extruded by adding multiple layers positioned one pixel apar...

Likes

Translate

Translate
Adobe Community Professional ,
May 11, 2021 May 11, 2021

Copy link to clipboard

Copied

I think it is not possible reevealing as a 3D object, but you can use a trim path animation on a similar stroke on a shape layer above the question mark and use it as a track matte.Maybe other colleagues in the forum can share some tips to do it.



Cinema 4D has a Sweep generator where you can do what you are looking for. I'm not sure if the Cinema 4D Lite included in After Effects has the Sweep generator included.

Likes

Translate

Translate

Report

Report
Community guidelines
Be kind and respectful, give credit to the original source of content, and search for duplicates before posting. Learn more
community guidelines
Community Beginner ,
May 11, 2021 May 11, 2021

Copy link to clipboard

Copied

Hi Jose, Many thanks for getting back to me. I know it's possible as i've seen it done. See for instance the video i've linked here:

https://www.youtube.com/watch?v=B92mSXopR3g

Take note of the time: 0:17 to 0:18. This is the style of animation I am after. I have to say i've never heard of the "sweep generator". Do you think it will do this (the animation in the video)? Also how is it accessed?



I really appreicate your time on thid matter as it is really bugging me. Thanks, Ben.





Так как сегодня мой день рождения, я решил вскрыть один из своих старых проектов и придать ему улучшенный вид. Этим проектом стали "Юбилейные" игры КХСМ, но ...

Likes

Translate

Translate

Report

Report
Community guidelines
Be kind and respectful, give credit to the original source of content, and search for duplicates before posting. Learn more
community guidelines
Adobe Community Professional ,
May 11, 2021 May 11, 2021

Copy link to clipboard

Copied

Yes. C4DLite does have a SweepGenerator.

Yes. Trim Paths could create a reveal of an AE 3D geometry layer.  The limitation of the 3D Layer to Geometry is that After Effects allows for extrusion of the shape, but not extrusion of a spline(shape) along the position of another spline(shape).

I've seen objects that mimic a solid form by creating 100s of 3D layers along a path. It's terribly inefficient, but gets you close (but also presents lighting problems)

Likes

Translate

Translate

Report

Report
Community guidelines
Be kind and respectful, give credit to the original source of content, and search for duplicates before posting. Learn more
community guidelines
Community Beginner ,
May 11, 2021 May 11, 2021

Copy link to clipboard

Copied

Hi There, Many thanks for your information. How would I go about creating a trim path reveal for a 3D layer? As that sounds basically like what I want to do. Thanks.

Likes

Translate

Translate

Report

Report
Community guidelines
Be kind and respectful, give credit to the original source of content, and search for duplicates before posting. Learn more
community guidelines
Adobe Community Professional ,
May 12, 2021 May 12, 2021

Copy link to clipboard

Copied

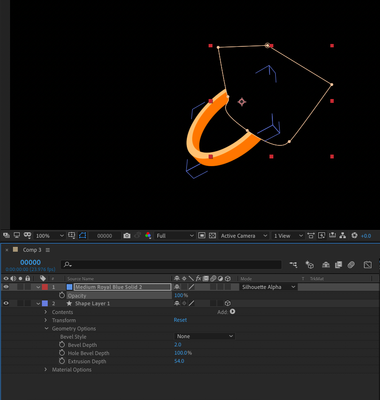

Once you use the 3D Geometry mode in After Effects, you don't have access to Track Mattes, so you may need to think a little more about how that layer will be revealed.
