the position of the corner markers relative to the dimensions of the rectangle

Question

Hello. the question arose, which expression should be used so that when changing the size of the rectangle, the position of the markers on its corners was changed.I used an expression based on the scaletry{
s = scale [0]/100;
L = thisLayer;
while (L.hasParent){
s *= L.parent.scale[0]/100;
L = L.parent;
}
w = value;
w/s
}catch(e){
value;
};but it doesn't work for me, because the thickness of the stroke and the size of the markers change during non-proportional scaling. so I decided that changing the position of the markers relative to the size of the rectangle would solve this problem, but I don't know what expression to use for this. I will be grateful for your help)in the attached video showed how it works based on scale

Rick Gerard · Accepted Answer

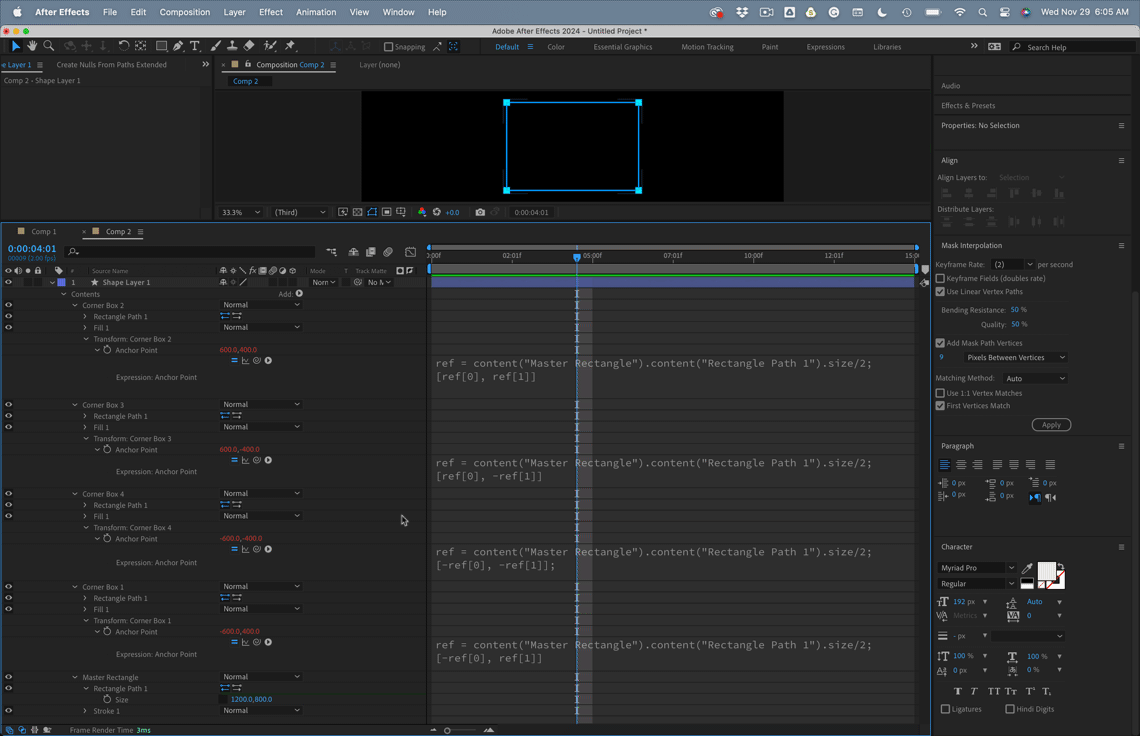

I would use a Parametric Rectangle for the outline, then tie the position of four small corner markers created from identical little rectangles to the four corners of the big rectangle by expressions applied to their CorerBox/Transform Corner Box/Anchor Point property like this:

//Top Left Corner
ref = content("Master Rectangle").content("Rectangle Path 1").size/2;
[ref[0], ref[1]];

//Bottom Left Corner
ref = content("Master Rectangle").content("Rectangle Path 1").size/2;
[ref[0], -ref[1]];

// Bottom Right Corner
ref = content("Master Rectangle").content("Rectangle Path 1").size/2;
[-ref[0], -ref[1]];

// Top Right Corner
ref = content("Master Rectangle").content("Rectangle Path 1").size/2;
[-ref[0], ref[1]]

Then, all you have to do is adjust the size of the Master Rectangle, and the corner markers will all follow.
