Custom Bottle - Curves Render with Jagged Horizontal Lines.

Explorer ,
Nov 30, 2019 Nov 30, 2019

Copy link to clipboard

Copied

Thank you in advance for any helpful notes. 🙂
I'm attempting to create a custom glass bottle OBJ using Illustrator and Photoshop to then import into Dimension. I've created a simple outline of my bottle using the pen tool in illustrator, but when I create a 3d layer in photoshop the smooth curves render very poorly.



Screen Shot 2019-11-30 at 3.32.17 PM.png



As you can see below, horizontal lines are appearing across all curved surfaces. The same occurs if I export an OBJ and import to Dimension. The same striation is happening on what should be a simple smooth curve. Am I missing a step anywhere? What is causing this?





Screen Shot 2019-11-30 at 3.29.43 PM.png



TOPICS
How to , Import and export , Mac , Problem or error

Views

1.0K

Translate

Translate

Report

Report
Community guidelines
Be kind and respectful, give credit to the original source of content, and search for duplicates before posting. Learn more
community guidelines

correct answers 1 Correct answer

LEGEND , Nov 30, 2019 Nov 30, 2019

your file back

what it looks like is the smart object paste step buggered up your map... I turned the map off and moved the line over so it is centered

move over and turn off mapmove over and turn off map

  • then i saved your line as a png and reloaded it to make another bottle

save as pngsave as png

extursion = 100%extursion = 100%

test in Dimensiontest in Dimension

this extursion is at 100% ... i'd change that to 33% for glass but you can adjust for your needs

Votes

Translate

Translate
LEGEND ,
Nov 30, 2019 Nov 30, 2019

Copy link to clipboard

Copied

you say you made this bottle in Photoshop?

  • What is causing this? = the normal map... what software did you use to make it?



my example  = https://community.adobe.com/t5/dimension/how-to-make-a-good-bottle-in-photoshop-for-dimension-my-way...



or share the files and I'll have a go at fixing it for you

Votes

Translate

Translate

Report

Report
Community guidelines
Be kind and respectful, give credit to the original source of content, and search for duplicates before posting. Learn more
community guidelines
Explorer ,
Nov 30, 2019 Nov 30, 2019

Copy link to clipboard

Copied

I drew the bottle outline in Illustrator then pasted the smart object into photoshop where I used the extrusion tool to revolve the shape. At that point I already noticed the surface wasn't smooth and exporting it as an OBJ for Dimension didn't help.

Thank You!!

If you want to have a look at my file here is the photoshop 3D extrusion (revolve)  Photoshop File

Votes

Translate

Translate

Report

Report
Community guidelines
Be kind and respectful, give credit to the original source of content, and search for duplicates before posting. Learn more
community guidelines
LEGEND ,
Nov 30, 2019 Nov 30, 2019

Copy link to clipboard

Copied

your file back

what it looks like is the smart object paste step buggered up your map... I turned the map off and moved the line over so it is centered

move over and turn off mapmove over and turn off map

  • then i saved your line as a png and reloaded it to make another bottle

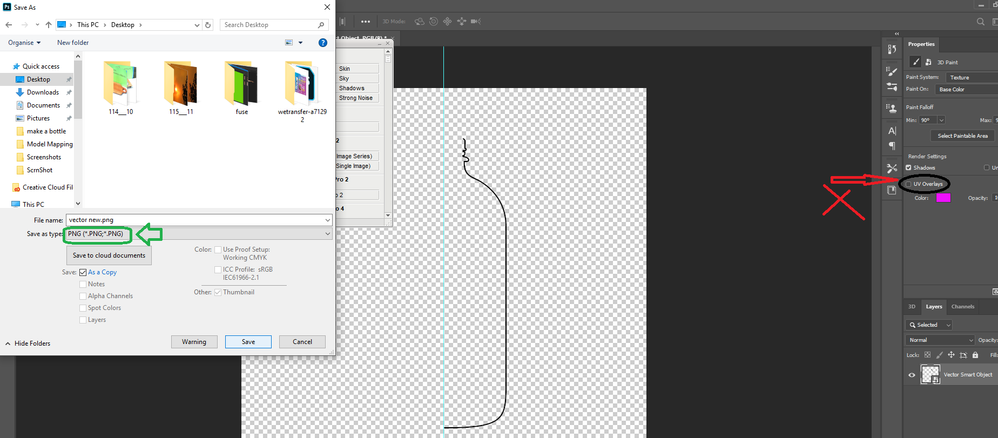

save as pngsave as png

extursion = 100%extursion = 100%

test in Dimensiontest in Dimension

this extursion is at 100% ... i'd change that to 33% for glass but you can adjust for your needs

Votes

Translate

Translate

Report

Report
Community guidelines
Be kind and respectful, give credit to the original source of content, and search for duplicates before posting. Learn more
community guidelines
Explorer ,
Dec 01, 2019 Dec 01, 2019

Copy link to clipboard

Copied

THANK YOU!

I appreciate your time explaining the process. I was able to follow your guide and re-make my file. You were correct, importing as a PNG solved the surface issue. However, I am unable to apply a decal to the surface in Dimension. I suspect this has something to do with UVs. I am new to 3D modeling so I appreciate any helpful tips.

I have not been able to find the "UV Overlays" checkbox in Photoshop properties. Where is this found or displayed?














Votes

Translate

Translate

Report

Report
Community guidelines
Be kind and respectful, give credit to the original source of content, and search for duplicates before posting. Learn more
community guidelines
LEGEND ,
Dec 01, 2019 Dec 01, 2019

Copy link to clipboard

Copied

LATEST
  • the map on your bottle is the vector smart object... double click that to open it and you will be able to see the tick box for turning off the map

vector smart objectvector smart object

  • yes the UV map controls how a decal works and using an extrusion = you must take control... I show how to do this this in my example linked above i.e, I use a fill, not a decal

when you make an extrusion the map part is the thin line you used to set your shape i.e, worthless because Dimension is dum as but a fill can be used to get the same result | you can use another model [or the wand tool] to build a new surface for your decal... the end result is the same but ime a fill is the normally best i.e, easiest
