CEP and getting started, explain it to me like I'm 5 :(

Question

I feel like I'm a pretty competent computer guy.

I can code and script on an amateur level but this CEP and extension thing has got me feeling pretty dumb right now.

I mean, I can't even get STARTED!

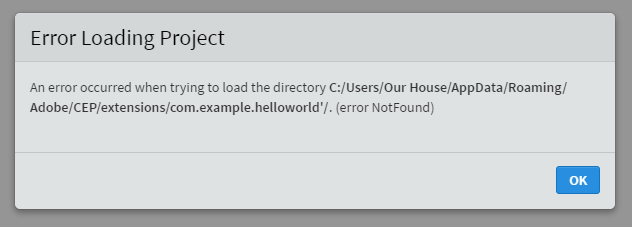

I'm trying to use Brackets as I've seen suggested here. They have an extension for developing Adobe Extensions, so that seems easy enough (actually there are two). I have them installed but when I click on "create new extension", it just dumps on me saying there is no extension by that ID in the CEP folder (windows).

I'm clearly missing what is probably a VERY obvious step... but in all my googling, I can't find a single thing that is pointing me in the right direction. LOL

Anyone lend me a hand here? I'm trying to code for CC 2018 and I've downloaded the github CEP-Resources-Master.zip but I haven't put it anywhere's yet.

Thanks,
Bogus8

abeb6401 · Answer

I struggled for almost a week. I got one thing to work then the next I struggled but got it all working.

- Check CEP version for your application and version on this page:

CEP-Resources/CEP 8.0 HTML Extension Cookbook.md at master · Adobe-CEP/CEP-Resources · GitHub

- Open your Registry and find CSXS version in step one.

- Right click on the CSXS version and add new string. Name the string PlayerDebugMode.

- Right click on the string and modify then make the value 1.

- Now you should know that you need to restart your computer for it to take effect.

- Create new extension in brackets and also click enable debug mode.

- Now you have the extension you need to make sure the manifest.xml in the csxs directory is correctly set.

- Go back to the link in the first point and lookup the host code under Remote Debugging

e.g <Host Name="PHXS" Port="8000"/> for photoshop

Each application has it's own code. Try one application first to see if you can get it to work.

UPDATE: <Host Name="PHXS" Version="[14.0,99.9]" />

The version numbers are important. So it works for 14.0 to 99.9 which means most version after 14.0.

- Finally set the csxs in the manifest.xml under <RequiredRuntimeList>

Now run your application and is if it works.
