Adobe Illustrator 2023 : SDK Sample code UI Panels not being displayed!

New Here ,
Mar 06, 2023 Mar 06, 2023

Copy link to clipboard

Copied

Hi,

I have successfully built the MasterProjects (BuildAll.sln) on windows and all the corrsesponding .aip files have been created inside Adobe Illustrator 2023 SDK\samplecode\output\win\x64\Debug.



But when I try to run the samples from Illustrator, I do not see the UI/Dialoag Boxes getting launched.



I see that following *UI folders[containing css,CSXS,js,jsx folders] exists in the samplecode as shown below. What needs to be done with these folders? How are they supposed to be used? Should they be copied somewhere?






TOPICS
SDK

Views

491

Translate

Translate

Report

Report
Community guidelines
Be kind and respectful, give credit to the original source of content, and search for duplicates before posting. Learn more
community guidelines
Community Expert ,
Mar 07, 2023 Mar 07, 2023

Copy link to clipboard

Copied

You need to copy the aip file to the Plugins folder which is placed next to the Illustrator application. Did you do that?

-Manan

Votes

Translate

Translate

Report

Report
Community guidelines
Be kind and respectful, give credit to the original source of content, and search for duplicates before posting. Learn more
community guidelines
New Here ,
Mar 18, 2023 Mar 18, 2023

Copy link to clipboard

Copied

Can you send a precise location? Where inside this path? If you share a snapshot that will be really helpful.




I copied the aip files generated inside Adobe Illustrator 2023 SDK\samplecode\output\win\x64\Debug into Adobe\Adobe Illustrator 2023\Plug-ins\Extensions. But this does not help

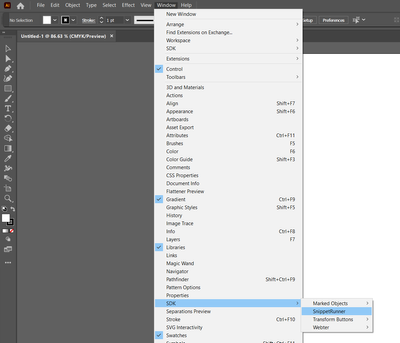

My concern ie I am unable to see dialog boxes for e.g. "SnippetRunner" or Webter app. What do I need to do this?






Votes

Translate

Translate

Report

Report
Community guidelines
Be kind and respectful, give credit to the original source of content, and search for duplicates before posting. Learn more
community guidelines
New Here ,
Mar 18, 2023 Mar 18, 2023

Copy link to clipboard

Copied

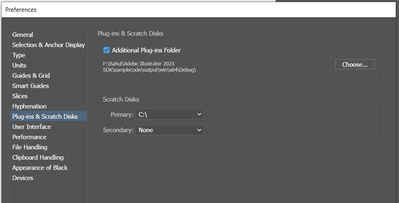

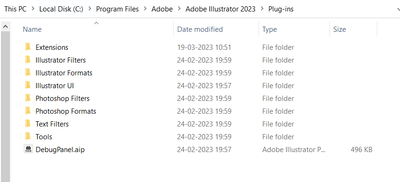

I also tried putting the aip files inside "C:\Program Files\Adobe\Adobe Illustrator 2023\Plug-ins". I think it is not a problem of location of aip files.Because, they are being correctly referred because the path has been set-up in the preferences.


Should the SnippetRunnerUI (Adobe Illustrator 2023 SDK\samplecode\SnippetRunnerUI) folder be copied somewhere?

Votes

Translate

Translate

Report

Report
Community guidelines
Be kind and respectful, give credit to the original source of content, and search for duplicates before posting. Learn more
community guidelines
Explorer ,
Mar 20, 2023 Mar 20, 2023

Copy link to clipboard

Copied

The aip files are plugin files and needs to go into the plugins folder. The snippet UI files are likely Extension files and needs to go into your Extensions folder. The Extension will then be alble to establish a connection between itself and the aip file.

Votes

Translate

Translate

Report

Report
Community guidelines
Be kind and respectful, give credit to the original source of content, and search for duplicates before posting. Learn more
community guidelines
Community Expert ,
Mar 20, 2023 Mar 20, 2023

Copy link to clipboard

Copied

LATEST

Rightly said by @iLLMonkey SnippetRunnerUI is a CEP extension and needs to go to the extensions folder. The path for it is

Windows:
C:\Program Files\Common Files\Adobe\CEP\extensions\

MAC
/Library/Application Support/Adobe/CEP/extensions/

After you copy the folder SnippetRunnerUI to the location mentioned above and relaunch Illustrator, you shall see the plugin menu under Window>Extensions.

If the extension does not load. You might also have to switch on the debug flag on your machine to load the extension as the folder shipped with SDK seems to be unsigned. For more details see the following article

https://github.com/Adobe-CEP/CEP-Resources/blob/master/CEP_10.x/Documentation/CEP%2010.0%20HTML%20Ex...

-Manan
