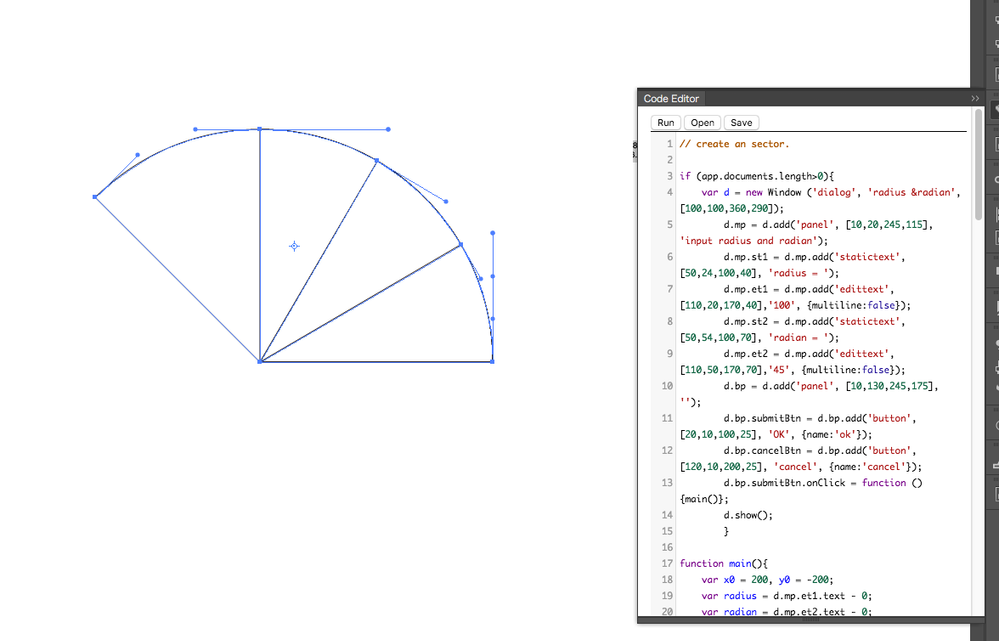

Drawing a circle segment by script.

ExtendScript is not supported on mac anymore, but the script should run. Is he getting any error messages?

Hey all!

my coworker wanted to follow along with my script. Two fiunny things: The script, thats working fine on my machine is not doing anything on his mac. Second: We wanted to install extendscript toolkit on his mac. We can't find the software neither in the CC-app nor on adobe.com. Any hints?

So guys... Thank you so much. You saved my A double S with "app.executeMenuCommand". Unbelievable I could live without this before. Here's the JSON to pie chart tool I came up with:

Go get the json.js and a .json-file with something like:

{
    "party": [
        {
            "name": "XXX",
            "colorvalue": "e3000f",
            "result": "28.52"
        },
        {
            "name": "YYY",
            "colorvalue": "000000",
            "result": "27.64"
        },
        {
            "name": "ZZZ",
            "colorvalue": "707070",
            "result": "13.93"
        },
        {
            "name": "AAA",
            "colorvalue": "46962b",
            "result": "10.69"
        },
        {
            "name": "BBB",
            "colorvalue": "d8d8d8",
            "result": "6.38"
        },
        {
            "name": "FFF",
            "colorvalue": "c8c8c8",
            "result": "5.89"
        },
        {
            "name": "DDD",
            "colorvalue": "c8c8c8",
            "result": "5.57"
        },
        {
            "name": "LLL",
            "colorvalue": "808080",
            "result": "1.38"
        }
    ]
}

 And then use this:

#include "json2.js";
// global vars
var file = new File;
var sourceFolder = new Folder;
var destFolder = new Folder;
var fldr = "";
var check = 0;
var check2 = 0;
var JSONfiles = new Array();
var elements = new Array();
var mm2pt = 2.834645;
var www = 82 * mm2pt;
var hhh = 55 * mm2pt;
var rrr = 50 * mm2pt;
var ttt = 25 * mm2pt;
var thisDoc;
/////////////////testfile
testFile = new File("/Users/Ulrich.Einweg/Documents/uliProjects/PNP_Wahlgrafiken/02_txt/data.json");
testData = readJSON(testFile);
setLayout(testData);
/////////////////
function readJSON(fil) {
    fil.open("r");
    var jsonString = fil.read();
    fil.close();
    try{
        var myJSON = JSON.parse(jsonString);
    } catch(e){
        alert("ERROR: " + fil.name + "\n" + e);
    }
    return myJSON;
}

function setLayout(myData){
    //_____________get graph parameters
    var oParties = myData.party;
	//_____________new Document and set width and height:
	thisDoc = app.documents.add(DocumentColorSpace.CMYK, www, hhh);
    //_____________new grey default color
    thisDoc.defaultFilled = true;
    thisDoc.defaultStroked = false;
    var newRGBColor = new RGBColor();
    newRGBColor.red = 200;
    newRGBColor.green = 240;
    newRGBColor.blue = 240;
    thisDoc.defaultFillColor = newRGBColor;
    //_____________draw background:
    var bg = thisDoc.pathItems.rectangle(hhh, 0, www, hhh);

	drawPieChart(oParties);

    redraw();
}

function drawPieChart(parties){

    var barCount = parties.length;
    var currentAngle = 0;

    for (i = 0; i<barCount; i += 1){
        var currentParty = parties[i];

        var col = hexToRgb ("#" + parties[i].colorvalue);
    	var newRGBColor = new RGBColor();
    	newRGBColor.red = col.r;
    	newRGBColor.green = col.g;
    	newRGBColor.blue = col.b;
    	thisDoc.defaultFilled = true;
    	thisDoc.defaultFillColor = newRGBColor;
    	thisDoc.defaultStroked = false;
    	var outerCircle = thisDoc.pathItems.ellipse((hhh + rrr)/2, www/2 - (rrr)/2, (rrr), (rrr));

    	var col = hexToRgb ("#aabbcc");
    	var newRGBColor = new RGBColor();
    	newRGBColor.red = col.r;
    	newRGBColor.green = col.g;
    	newRGBColor.blue = col.b;
    	thisDoc.defaultFilled = true;
    	thisDoc.defaultFillColor = newRGBColor;
    	thisDoc.defaultStroked = false;
    	var innerCircle = thisDoc.pathItems.ellipse((hhh + (rrr-ttt))/2, www/2 - (rrr-ttt)/2, (rrr-ttt), (rrr-ttt));

    	innerCircle.selected = true;
    	outerCircle.selected = true;

    	app.executeMenuCommand("group");
    	app.executeMenuCommand("Live Pathfinder Subtract");
    	app.executeMenuCommand("expandStyle");

    	var ring = thisDoc.selection[0];
        thisDoc.selection = null;

        var shape = thisDoc.pathItems.add();
        var pathPoints = new Array();
        pathPoints.push([www/2, hhh/2]);
        pathPoints.push(calculatePointOnSquare(rrr/2, currentAngle, www/2, hhh/2));
        var newAngle = currentAngle + Number(currentParty.result)/100*360;
        if(newAngle > 360){
            newAngle = 360;
        }
        if(currentAngle < 45 && newAngle > 45){
            pathPoints.push(calculatePointOnSquare(rrr/2, 45, www/2, hhh/2));
        }
        if(currentAngle < 135 && newAngle > 135){
            pathPoints.push(calculatePointOnSquare(rrr/2, 135, www/2, hhh/2));
        }
        if(currentAngle < 225 && newAngle > 225){
            pathPoints.push(calculatePointOnSquare(rrr/2, 225, www/2, hhh/2));
        }
        if(currentAngle < 315 && newAngle > 315){
            pathPoints.push(calculatePointOnSquare(rrr/2, 315, www/2, hhh/2));
        }

        currentAngle = newAngle;
        pathPoints.push(calculatePointOnSquare(rrr/2, currentAngle, www/2, hhh/2));
        shape.setEntirePath(pathPoints);
        shape.closed = true;
        shape.filled = true;
        shape.stroked = false;
        var col = hexToRgb ("#" + parties[i].colorvalue);
    	var newRGBColor = new RGBColor();
    	newRGBColor.red = col.r;
    	newRGBColor.green = col.g;
    	newRGBColor.blue = col.b;
    	shape.fillColor = newRGBColor;

    	shape.selected = true;
    	ring.selected = true;

     	app.executeMenuCommand("makeMask");
    	app.executeMenuCommand("Live Pathfinder Crop");
    	app.executeMenuCommand("expandStyle");
    	app.executeMenuCommand("ungroup");

    	var element = thisDoc.selection[0];
    	elements.push(element);

    	thisDoc.selection = null;
    }

	redraw();

	var strokeRGBColor = new RGBColor();
	strokeRGBColor.red = 255;
	strokeRGBColor.green = 255;
	strokeRGBColor.blue = 255;

	for (i = 0; i<elements.length; i += 1){
	    element = elements[i];
	    element.selected = true;
        element.stroked = true;
        element.strokeColor = strokeRGBColor;
        element.strokeWidth = 1;
    }

    app.executeMenuCommand("group");

    var chartGroup = thisDoc.selection[0];
    if(chartGroup){
        m  = app.getScaleMatrix(100,-100);
        chartGroup.transform(m);
        chartGroup.rotate(180);
    }
    var aaa = -90;
     for (i = 0; i<barCount; i += 1){
        var currentParty = parties[i];

    	var dotRGBColor = new RGBColor();
    	dotRGBColor.red = 0;
    	dotRGBColor.green = 0;
    	dotRGBColor.blue = 0;

        aaa += Number(currentParty.result)/200*360;
        var point = calculatePointOnCircle((rrr - ttt/2)/2, aaa, www/2, hhh/2);
        aaa += Number(currentParty.result)/200*360;
        var dot;
        if(point[0] < www/2-5){
            dot = thisDoc.pathItems.rectangle(point[1] , 2*mm2pt, point[0] - 2*mm2pt, 0.2);
        } else {
            dot = thisDoc.pathItems.rectangle(point[1] , point[0], www - point[0] - 2*mm2pt, 0.2);
        }
        dot.stroked = false;
        dot.filled = true;
        dot.fillColor = dotRGBColor;
     }

	redraw();

}

function calculatePointOnCircle(r, angleInDegrees, startX, startY){
    var xxx = 0.0;
    var yyy = 0.0;
    var angle = (angleInDegrees % 360) * Math.PI /180;
    xxx = r * Math.sin(angle);
    yyy = r * Math.cos(angle);

    return [xxx+startX, yyy+startY];
}

function calculatePointOnSquare(r, angleInDegrees, startX, startY){
    var xxx = 0.0;
    var yyy = 0.0;

    var angle = (angleInDegrees % 360) * Math.PI /180;

    angleModPiOverTwo = angle % (Math.PI/4);

    if (angle >= 0 && angle < Math.PI / 4){
        xxx = r;
        yyy = r * Math.tan(angle);
    } else if (angle >= Math.PI / 4 && angle < Math.PI / 2) {
        xxx = r * Math.tan(Math.PI/2 - angle);
        yyy = r;
    } else if (angle >= Math.PI / 2 && angle < 3*Math.PI/4) {
        xxx = -1 * r * Math.tan(angle % (Math.PI/4));
        yyy = r;
    } else if (angle >= 3*Math.PI/4 && angle < Math.PI) {
        xxx = -1 * r;
        yyy = r * Math.tan(Math.PI - angle);
    }  else if (angle >= Math.PI && angle < 5*Math.PI/4) {
        xxx = -1 * r;
        yyy = -1 * r * Math.tan(angle % (Math.PI/4));
    } else if (angle >= 5*Math.PI/4 && angle < 3*Math.PI/2) {
        xxx = -1 * r * Math.tan(3*Math.PI/2 - angle);
        yyy = -1 * r;
    } else if (angle >= 3*Math.PI/2 && angle < 7*Math.PI/4) {
        xxx = r * Math.tan(angle % (Math.PI/4));
        yyy = -1 * r;
    } else {
        xxx = r;
        yyy = -1 * r * Math.tan(2 * Math.PI - angle);
    }
    return [xxx+startX, yyy+startY];
}

function hexToRgb(hex) {
  var result = /^#?([a-f\d]{2})([a-f\d]{2})([a-f\d]{2})$/i.exec(hex);
  return result ? {
    r: parseInt(result[1], 16),
    g: parseInt(result[2], 16),
    b: parseInt(result[3], 16)
  } : null;
}

function HSVtoRGB(h, s, v) {
    var r, g, b, i, f, p, q, t;
    if (arguments.length === 1) {
        s = h.s, v = h.v, h = h.h;
    }
    i = Math.floor(h * 6);
    f = h * 6 - i;
    p = v * (1 - s);
    q = v * (1 - f * s);
    t = v * (1 - (1 - f) * s);
    switch (i % 6) {
        case 0: r = v, g = t, b = p; break;
        case 1: r = q, g = v, b = p; break;
        case 2: r = p, g = v, b = t; break;
        case 3: r = p, g = q, b = v; break;
        case 4: r = t, g = p, b = v; break;
        case 5: r = v, g = p, b = q; break;
    }
    return {
        red: Math.round(r * 255),
        green: Math.round(g * 255),
        blue: Math.round(b * 255)
    };
}

Now I just have to do the text. And then I'll make it loop through a selectable folder and ouput everything to PDF.

So thx again,

Uli

why can't you recolor the pie slices? you have done everything perfectly so far. Great Job!!

Hey all,

I tried your approach and at first it looked very promising.

https://drive.google.com/open?id=1St5glLK2msPsuQFewJJ-wMaSxPhads1W

(You probably have to set the path to data.json to an absolute value)

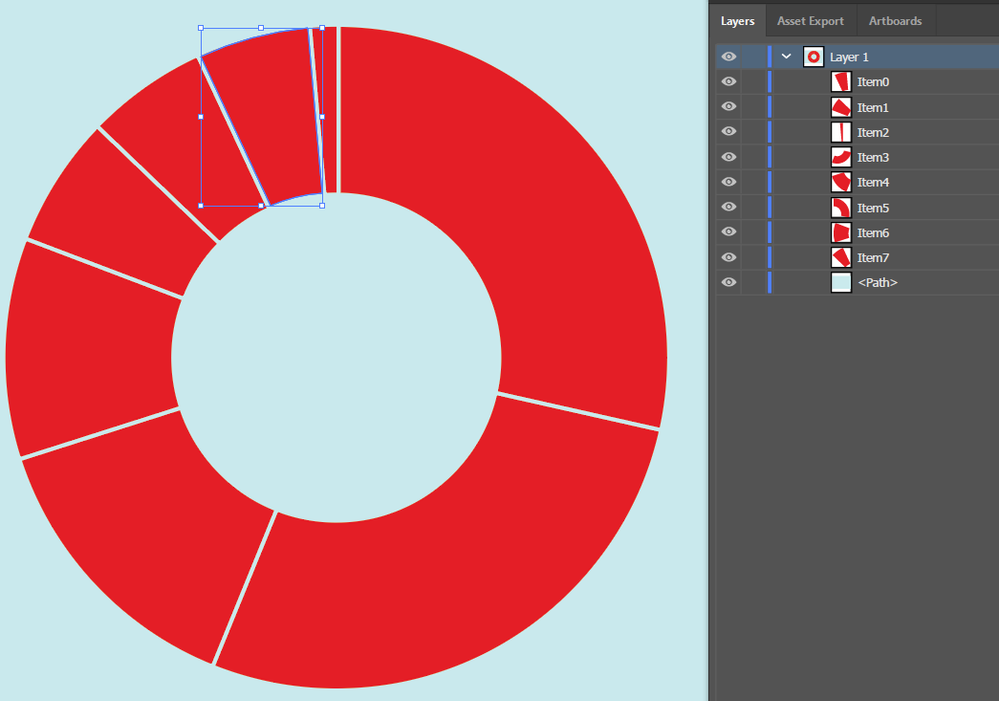

The only problem I have is, that I can't reference the single slices (for coloring):

function drawPieChart(parties){

    var barCount = parties.length;

	var col = hexToRgb ("#" + parties[0].colorvalue);
	var newRGBColor = new RGBColor();
	newRGBColor.red = col.r;
	newRGBColor.green = col.g;
	newRGBColor.blue = col.b;
	thisDoc.defaultFilled = true;
	thisDoc.defaultFillColor = newRGBColor;
	thisDoc.defaultStroked = false;
	var outerCircle = thisDoc.pathItems.ellipse((hhh + rrr)/2, www/2 - (rrr)/2, (rrr), (rrr));

	var col = hexToRgb ("#aabbcc");
	var newRGBColor = new RGBColor();
	newRGBColor.red = col.r;
	newRGBColor.green = col.g;
	newRGBColor.blue = col.b;
	thisDoc.defaultFilled = true;
	thisDoc.defaultFillColor = newRGBColor;
	thisDoc.defaultStroked = false;
	var innerCircle = thisDoc.pathItems.ellipse((hhh + (rrr-ttt))/2, www/2 - (rrr-ttt)/2, (rrr-ttt), (rrr-ttt));

	var col = hexToRgb ("#116633");
	var newRGBColor = new RGBColor();
	newRGBColor.red = col.r;
	newRGBColor.green = col.g;
	newRGBColor.blue = col.b;
	thisDoc.defaultFilled = true;
	thisDoc.defaultFillColor = newRGBColor;
	thisDoc.defaultStroked = false;
	var cutters = new Array();
	var currentAngle = 0;

	 for (i = 0; i<barCount; i += 1){
    		var currentParty = parties[i];
    		currentAngle += Number(currentParty.result)/100*360;
			var cutter = thisDoc.pathItems.rectangle(hhh/2 + rrr, www/2, 1, rrr);
			cutter.rotate(-currentAngle, true, true, true, true, Transformation.BOTTOM);
			cutters.push(cutter);
    }

	redraw();

	for (i = 0; i<barCount; i += 1){
    		cutters[i].selected = true;
    }
	innerCircle.selected = true;

	app.executeMenuCommand("group");
	app.executeMenuCommand("Live Pathfinder Add");
	app.executeMenuCommand("expandStyle");

	var cutOut = thisDoc.selection[0];
	outerCircle.selected = true;

	app.executeMenuCommand("group");
	app.executeMenuCommand("Live Pathfinder Subtract");
	app.executeMenuCommand("expandStyle");
	app.executeMenuCommand("ungroup");

	var chartGroup = thisDoc.selection;
	for (i = 0; i<chartGroup.length; i++){
		chartGroup[i].name = "Item"+i;
	}
}

Then I tried something completely different: Wanted to do this with an stroke gradient:

function drawPieChartGradient(parties){
	var pieRadius = rrr - ttt/2;
	var allBars = "";
    var barCount = parties.length;
     //_____________get max value
    var maxValue = 0;
    for( i = 0; i < parties.length; i++){
           maxValue = Math.max(maxValue, parties[i].result);
    }

    var myPie = thisDoc.pathItems.ellipse(hhh/2 + pieRadius/2, www/2 - pieRadius/2, pieRadius, pieRadius);

     var newGradient = app.activeDocument.gradients.add();
	newGradient.name = "NewGradient";
	newGradient.type = GradientType.LINEAR;
  	var pieStops = newGradient.gradientStops;
  	var currentRampPoint = 0;
  	while (pieStops.length <= barCount*2){
  		pieStops.add();
  	}
	 for (i = 0; i<barCount*2; i += 2){
    		var currentParty = parties[i/2];
    		var currentStop = pieStops[i];
    		currentRampPoint = (currentRampPoint > 100)?100:currentRampPoint;
            currentStop.rampPoint = currentRampPoint;
            currentRampPoint += Number(currentParty.result);
            var col = hexToRgb ("#" + currentParty.colorvalue);
            var newRGBColor = new RGBColor();
            newRGBColor.red = col.r;
            newRGBColor.green = col.g;
            newRGBColor.blue = col.b;
            currentStop.color = newRGBColor;
            if(parties[i/2+0]){
            	var currentParty = parties[i/2+1];
    			var currentStop = pieStops[i+1];
    			currentRampPoint = (currentRampPoint > 100)?100:currentRampPoint;
            	currentStop.rampPoint = currentRampPoint;
            	currentRampPoint += 0.01;
            	currentStop.color = newRGBColor;
            }
    }


  // construct an Illustrator.GradientColor object referring to the newly created gradient
  var colorOfGradient = new GradientColor();
  colorOfGradient.gradient = newGradient;

  myPie.stroked = true;
  myPie.strokeWidth = ttt/2;
  myPie.strokeColor = colorOfGradient;
  myPie.rotate(-90);
}

But I cant set the gradient "along stroke" via script.

Anyway, I have one other idea. If that doesn't work, I'll go full "processing". Get back to you later...

Thanks so far!!

@rcraighead,

here are all the findings of the last years (app.executeMenuCommand("String")

https://community.adobe.com/t5/illustrator/js-cs6-executemenucommand/m-p/5904747?page=1

(luckily the link is back in forum - was lost since the new forum software started)

Have fun

😉

you can draw a pie chart via Variable Data, but it's probably more fun to build the pies from scratch.

draw a Circle, a Rectangle on top of the bottom half, then draw skinny Rectangles for pie dividers

then, Select All and apply Minus Front PathFinder

Polar Grid is under the line segment tool. You can create the grid according to your own parameters, and then merge or delete sections as needed to obtain the chart you want.

For this, I would use polar grid. Set segments to create the smallest one, then merge sections.
