How to separate strokes from overlapping shapes

Explorer ,
Apr 16, 2025 Apr 16, 2025

Hello, what is the quickest way to REMOVE the blue strokes/outlines leaving ONLY the green, exactly as shown in the attached file, in Illustrator?
My file is vector. Shapes are overlapping.
So far, I have tried converting the blue strokes to outlines then making a compound shape, but when I do this the outlines come to the front covering some of the green.

Is there a simple way to accomplish this?

TOPICS
How-to
276
Translate
Report
Community guidelines
Be kind and respectful, give credit to the original source of content, and search for duplicates before posting. Learn more
community guidelines
Adobe
Community Expert ,
Apr 16, 2025 Apr 16, 2025

A knockout group can do this.

Select all Blue strokes.

In the Appearance panel change the opacity to 0%.

Select All and Group.

Select in the Opacity options > Knockout Group.




Translate
Report
Community guidelines
Be kind and respectful, give credit to the original source of content, and search for duplicates before posting. Learn more
community guidelines
Community Expert ,
Apr 16, 2025 Apr 16, 2025
LATEST

Not all applications like Knockout Groups.

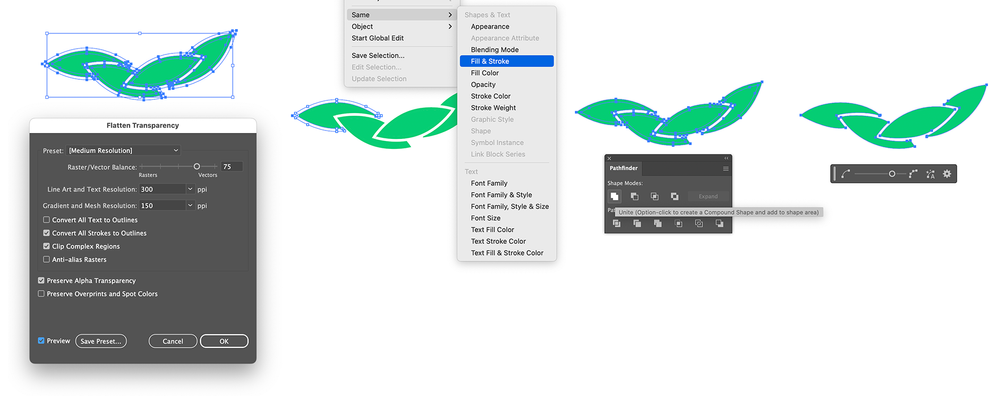

You may want to use Object > Flatten Transparency...

Direct Select the resulting outer paths and use Select > Same > Fill and Stroke and delete the selection.

Pathfinder Unite and Simplify path can clean it up some more.
