Illustrator wont let me allign my strokes to the inside the align stroke bok to the inside is greyed

[sloberdobhelp]

Illustrator wont let me allign my strokes to the inside the align stroke bok to the inside is greyed out, can any one advise me

[Cozmicone]

You can change the stroke alignment for everything except text which is what I'm guessing is the type of object you have that you want to change the stroke for. The only way to get an inside stroke on text is to convert the text to outlines first.

If you wanted to just add a stroke that appears outside the text you can do it with these steps.

1) Open the Appearance pannel, select the top right menu button, and select add new stroke.

2) Click and drag the new Stroke layer so it's under the Characters layer.

3) Click on the strokes layer and then open the strokes panel to modify the stroke as desired.

Granted this isn't going to get you strokes on the inside of the text but it will at least keep the stroke from choking the text.

[sloberdobhelp]

Hi

Here is a screen shot.

The orange is my image. I am drawing a cut line in Illustrator at the moment the black line is 1mm thick .

The green line is the bleed guide overlay only which I have placed on my image so I can get an accurate 3mm bleed.

I would like to align the blue stroke at the base of my black  cut guide so that I can have a more accurate cut guide.

I am on an apple mac.

I really apreciate your help

[Cozmicone]

Not seeing the image.

[sloberdobhelp]

Hi

Here is a screen shot.

The orange is my image. I am drawing a cut line in Illustrator at the moment the black line is 1mm thick .

The green line is the bleed guide overlay only which I have placed on my image so I can get an accurate 3mm bleed.

I would like to align the blue stroke at the base of my black cut guide so that I can have a more accurate cut guide.

I am on an apple mac.

I really appreciate your help

[Cozmicone]

Still no image.

[sloberdobhelp]

[Cozmicone]

Since it's a line you've drawn I can't think of a reason why you're not able to change the stroke alignment. Is the green line stroke aligned to the outside or center?

[sloberdobhelp]

The green and orange is a  flattened image.

So that I can draw a cut guide around the out side edge of the orange image.

Should I save the green and orange as a template would it then work?

[Laubender]

This is how the feature in Illustrator is working. Nothing unusual here.

In the moment you have closed an area you can set the alignment of the stroke to "Inner Stroke".

Uwe

[Laubender]

That said, in InDesign you could set the alignment of a simple, not closed object path to "Inner Stroke"…

Uwe

[sloberdobhelp]

It wont let me do it it is greyed out and set to centre align

[Laubender]

So you have no closed path in Illustrator. As I already said, this is a feature of InDesign, not of Illustrator.

Screenshot of Illustrator path

1. Open Illustrator path:

Closed Illustrator path:

Screenshot of open InDesign path:

Uwe

[Ickissfish]

Whoa - this was super helpful. Couldn`t figure out how to get an outside stroke on text.

[Roy281091762r0f]

It will not work on an 'open' path.  Select object, making sure it's not in a group or compound, right click and select join to make it a 'closed' path and you will be able to align stroke again.  😉

[Jaydude-wb]

The OP asked for strokes aligned INSIDE, rather than outside.

I need it too. I understand that a nice stroke inside is challenging, but Ai should leave the responsibility to the user.

[Doug A Roberts]

What kind of object are you trying to apply an inside stroke to?

[Jaydude-wb]

Sorry, came to this post with a Text object in mind, but further inspection shows that this thread is not about Text.

Still, for my project I need (editable) Text to have an inside Stroke. None of the Adobe CC apps can do it, for obvious reasons - it can turn out ugly and maybe will hang the apps, due to intersecting values. But I can think of an algorithm that can handle this.

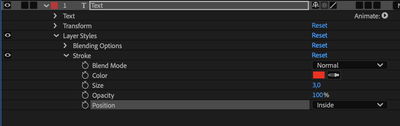

For now I found a workaround with After Effects Layer Styles, but it is not the most convenient way:

[cebarrington]

The type of brush stroke you use can make a difference. I haven't competely tested this yet, but I had the same problem when the stroke that was being used was a 5pt oval. When I switched to a basic brush the panel options were no longer grayed out.

[Mike_Gondek]

Your explanation is lacking what you are trying to achieve in the end, so hard to advise. Maybe you should use a fill instead. Or you can stack in appearance like this if you want one object.
