Is there a way to add Dropshadow and/or rounded corners to a created shape?

[samrb93]

Hi,

I am trying to create a script which puts a rectangle behind a piece of selected text. I have done this part, but is there a way to style this box from within the script?

I would like for it to have some dropshadow and round it's corners but I cannot find any information regarding doing this.

Many thanks

[Vinicius Baptista · Accepted solution]

Hi,

You can create a rounded rectangle natively with this code:

app.activeDocument.pathItems.roundedRectangle (0, 0, 40, 8, 4, 4);
//app.activeDocument.pathItems.roundedRectangle (top [x coordinate], left [y coordinate], rectangle width, rectangle height, horizontal Radius, vertical Radius)

To "Drop shadow", you can use a graphicStyles:

var style = doc.graphicStyles[1];
style.applyTo(app.activeDocument.selection[0]);

Sample code:

var doc = app.activeDocument;
var style = doc.graphicStyles[1];
var rndRect = doc.pathItems.roundedRectangle (0, 0, 40, 8, 4, 4);
//Apply Graphic Style to rectangle
style.applyTo(rndRect);

[samrb93]

Amazing stuff, this is so helpful!

Is there reference for the roundedRectangle anywhere? I just couldn't find any so either I'm blind, stupid or possibly both?

Also, in regards to the Drop Shadow, is there a way to change the attributes? i.e. opacity, blur, offset.

Cheers!!

[pixxxelschubser]

… maybe only blind.

Sorry, that was only a joke.

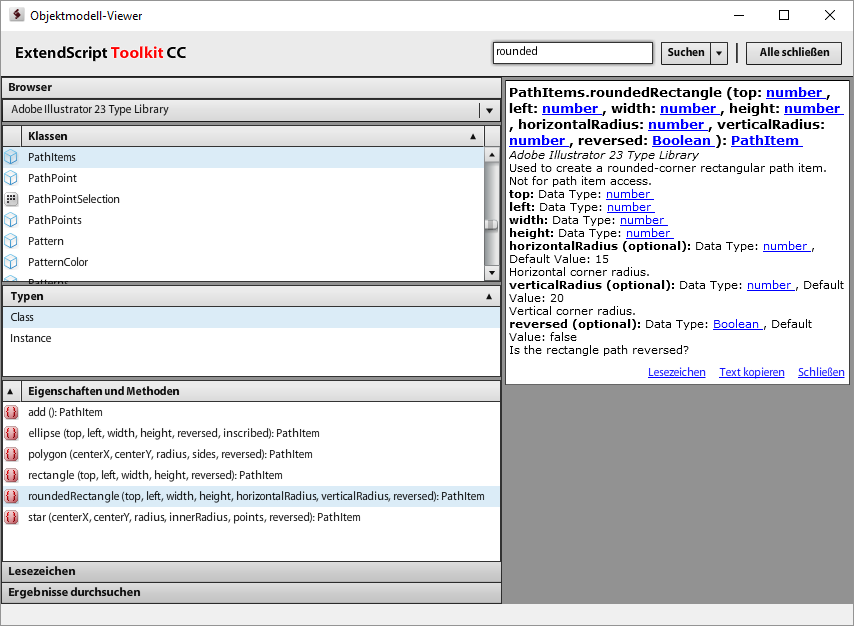

One place on your computer is the OMV in ESTK (if you already use ExtendScript Toolkit)

[samrb93]

Unfortunately, I have not been able to use the ESTK as the IT systems I am using at work doesn't allow me to use it (Ridiculous, I know) so I have been writing it all in Visual Studio Code.

Would've been a lot less hassle with that information though!

[pixxxelschubser]

There are good online libraries (but mostly for [JS] - normaly you can adapt the commands)

Here is a good one by Gregor Fellenz:

https://www.indesignjs.de/extendscriptAPI/illustrator-latest/#about.html
