Joining 2 Arcs

[King1ove]

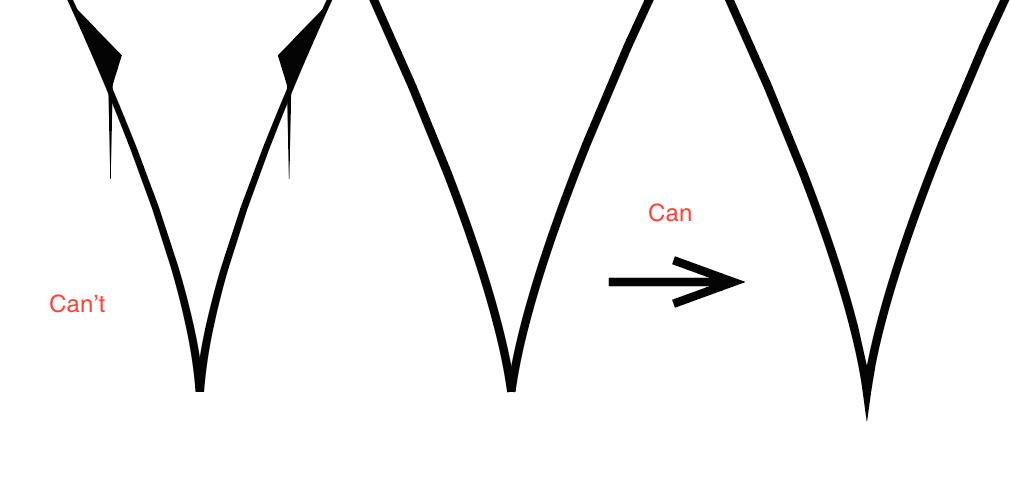

I couldn't figure out why did this happen?

消息编辑者为：翔 迟

[King1ove]

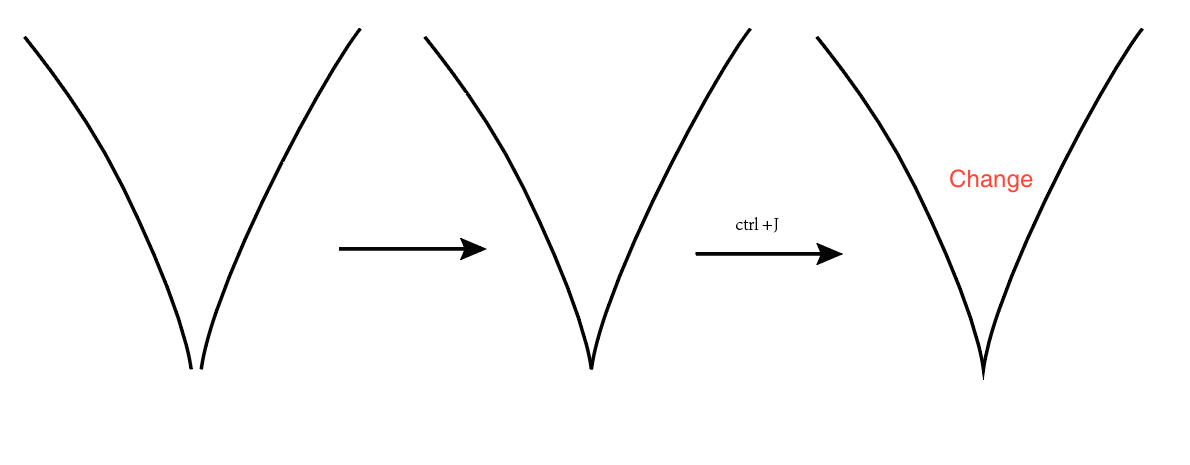

The first picture can't be  the second one after ctrl+ J.

[Srishti Bali]

Hi there,

As per your query, you are trying to join 2 arcs and you get image 1 as result but you want the one shown in image 2. Please check out these tutorials:

Drawing Arcs in Illustrator - YouTube

How to Create Straight & Curved Lines | Adobe Illustrator - YouTube

Hope it helps!

Regards,

Srishti

[King1ove]

srishtib8795206

She got that. I am trying to join 2arcs and I wanna get image 1 to image 2 shown. But it can't. These two arcs can't join by ctrl + j in image 1.@Kurt Gold

[tromboniator]

Join the two curves with ctrl J, set stroke weight.

With the Width Tool, double-click point A and set the width to 0

With the Width Tool double-click one of the points at B and set the width to desired stroke weight.

Peter

[Jacob Bugge]

Hi Peter,

No white in sight there either (dealer or no dealer)?

[tromboniator]

Hi, Jacob,

Only across the water and up high, although we did have friction amplifiers on our feet last night when we took the dog around the harbor.

I can deal with it, but I don't deal in it, it being a variable.

Peter

[King1ove]

Thanks man. It's great way.

[Jacob Bugge · Accepted solution]

King1ove,

As I (still mis)understand it, you wish to have the join of the two segments (after joining the paths) appear like a common Butt Cap (horizontal at the bottom) rather than as a spike. The spike or sharp corner is there to create a single outer corner with its sides parallel to each of the segment ends and work that way unless the sharpness of the angle is too large for the Miter Limit, in which case it changes into the double corner like the Butt Cap, so to force a sharp corner at sharp angles you can increase the Miter Limit.

And in your case you can force the double Butt Cap like corner by decreasing the Miter Limit, hence my suggesting your setting the Miter Limit to 1 in the Stroke palette.

Did you try it?

[King1ove]

Year man, sorry for late. I got the reason. You are right.

[Jacob Bugge]

For my part you are welcome, King1ove, and thank for for sharing.

[Kurt Gold]

Can you clarify a bit?

I'm not quite sure about what issue you are talking.

[jane-e]

https://forums.adobe.com/people/Kurt+Gold  wrote

Can you clarify a bit? I'm not quite sure about what issue you are talking.

I agree with Jacob. If you can move the anchor point with the Direct Selection tool, and if there is now one anchor point, then the paths are joined. If you still have two separate paths, then we are wrong and you need to join them again.

If you want that sharpness, you need to change the miter limit. You’ll find it in the Stroke panel.

[King1ove]

Year man, thanks for you guys. It is very helpful. I found a new “Am Cont”.

[Jacob Bugge]

King1ove,

As I (mis)understand it, set Stroke>Miter Limit to 1.

Hi Kurt. Anything white in sight?

[Kurt Gold]

No, Jacob. I do not sell and have never sold drugs. No white in sight.

[meganchi]

Why not take the left of the V shape copy and reflect it?
