Outline Object Bug

Participant ,
Dec 28, 2021 Dec 28, 2021

Copy link to clipboard

Copied

I discovered this feature not too long ago, and basically I used it on text so that I can force Illustrator to measure precisely to the text instead of measuring to the bounding box which is always very different than the text.  So this was a great thing, except it cause a at least 3 problems.



1. Use Outline Object on live Text. Then, place text in Mesh envelope.  Then, move the text and it disappears!  The way to get it back is to enter the envelope and nudge it slightly with the arrow tool.  The text reappears.  But it will continue to have this issue.  The only way to resolve it is to expand the envelope, or remove the Outline Object effect from the appearance panel.



2. Text with Outline Object applied will not scale properly if you simply type a size in the dialog box.  So I make some text, outline object, then type 5 inches in dialog box and the result is 4.9341 in.  I type 5 again and the result is 4.9548 in, and again and again.



3. I tend to have an object like text that has already been created to outlines, with strokes applied in the appearance panel, and maybe a warp effect applied as well. The problem happens when I scale this object, then press undo. The undo doesn't work. What I get is something that looks like the warp shape will undo, but the text does not. So there's the warp's lines or bounding box which responded to the undo command, but the text visibly does not respond.  If I go into the Appearance panel and remove Outline Object, it resolves itself immediately.



All of these problems are 100% repeatable and constantly happen.



TOPICS
Bug

Views

115

Likes

Translate

Translate

Report

Report
Community guidelines
Be kind and respectful, give credit to the original source of content, and search for duplicates before posting. Learn more
community guidelines
Adobe Community Professional ,
Dec 28, 2021 Dec 28, 2021

Copy link to clipboard

Copied

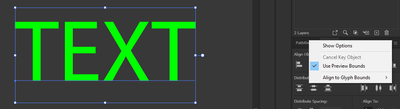

Align Palette flyout >> Use Preview Bounds. This eliminates the ascender/descender spacing above and below built into the font and uses the preview instead.
