Pathfinder HELP - Simple Ibm like logo

Community Beginner ,
Sep 22, 2017 Sep 22, 2017

I'm Trying to do some different practice logos. Well I'm completely baffled after googling, and practicing but I am unable to create striped text much like see in IBM Logo.

Any Help would be greatly appreciated.

Steps:

Created text

Created bars (also tried with line tool to no avail).

I then selected both (all)

pathfinder - subtract.


Here is what looked like once select everything


This is my result from pathfinder / subtract.

I've tried creating text as outlines which after reading found out will not work. As mentioned tried pen tool, thich and thin weight lines.This seems like simple task and for whatever reason I cannot get it to work no matter what. PLZ help feel foolish can't do simple pathfinder step lol

Thanks

1.2K
Translate
Report
Community guidelines
Be kind and respectful, give credit to the original source of content, and search for duplicates before posting. Learn more
community guidelines

correct answers 1 Correct answer

Community Expert , Sep 22, 2017 Sep 22, 2017

Alt (Option) click on the Minus front icon.

Translate
Adobe
Community Expert ,
Sep 22, 2017 Sep 22, 2017

Booda,

What happens if you

A) Create the live Type, then create the bars to knock out as black fill/nostroke rectangles (long enough), then select everything and in the Appearance palette flyout click Make Opacity Mask with both Clip and Invert Mask ticked?

B) Create the live Type, then create outlines, then create the bars to knock out as rectangles (long enough), then select everything and Pathfinder>Minus front?

Translate
Report
Community guidelines
Be kind and respectful, give credit to the original source of content, and search for duplicates before posting. Learn more
community guidelines
Community Expert ,
Sep 22, 2017 Sep 22, 2017

If you want to do this using the Pathfinder it's a matter of using expanded lines and compound paths. See screen shot:

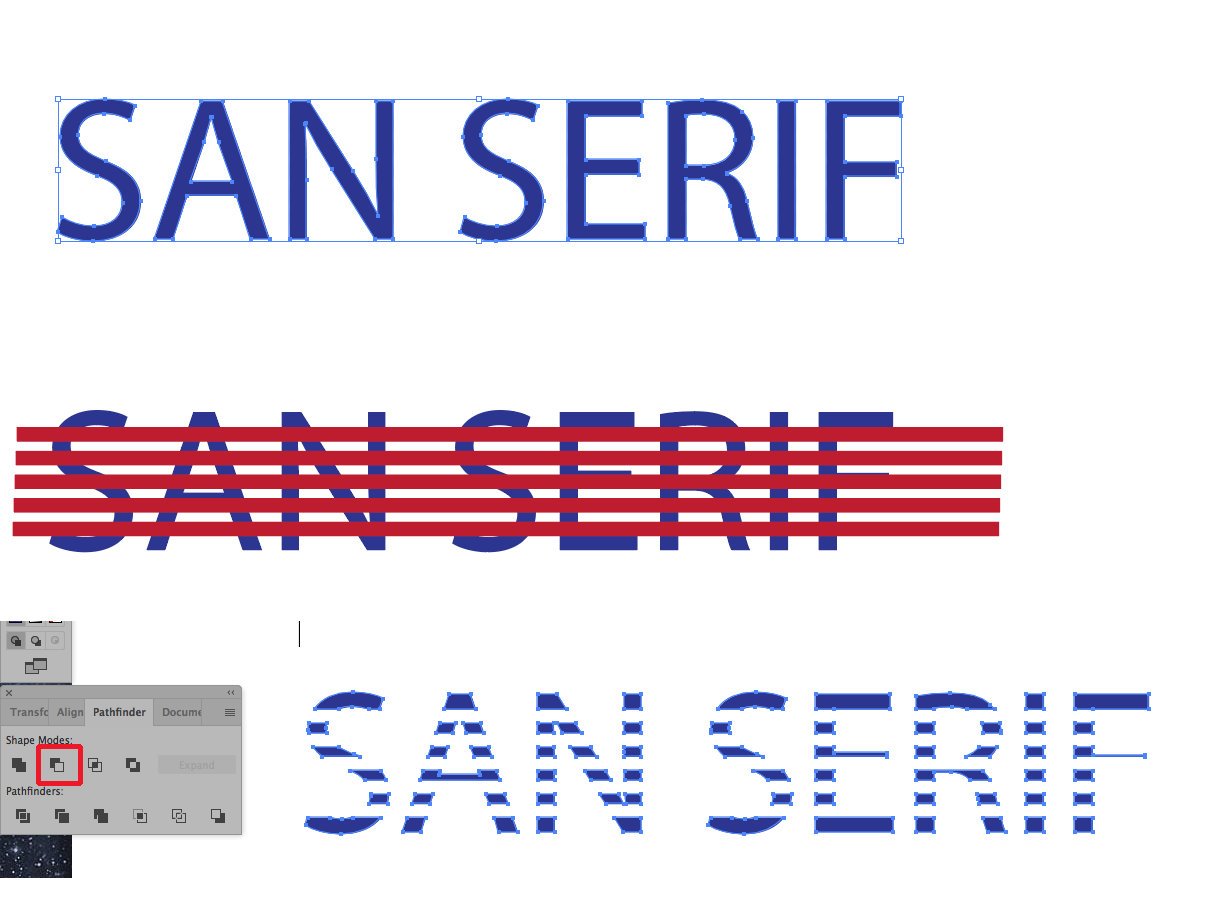

Screen Shot 2017-09-22 at 3.02.09 PM.png

In the first picture I made the text into outlines and also made it into a compound path (Command-8 on Mac Control-8 on PC). In the second picture I created and placed lines that I then expanded into paths (strokes will not work, they must be paths) and made all of those into a single compound path (they are colored red just to make it more clear) which I sent to the front. Then I selected all of this and used the Minus Front Pathfinder option (highlighted) and got the result shown.

Translate
Report
Community guidelines
Be kind and respectful, give credit to the original source of content, and search for duplicates before posting. Learn more
community guidelines
Community Beginner ,
Sep 22, 2017 Sep 22, 2017

Bill,

I had some success but as before whenever created outlines I'm getting same effect. Only the first letter. Maybe I'm missing step.

Create text

converted to outlines

created line (stroke =2) solid fill / also tried outline

object / expand (lines)

placed over my text.

WORKED - kind of.... only does one letter rest is missing. So strange


Translate
Report
Community guidelines
Be kind and respectful, give credit to the original source of content, and search for duplicates before posting. Learn more
community guidelines
Community Expert ,
Sep 22, 2017 Sep 22, 2017

The step you're missing is making the text a compound path.

Translate
Report
Community guidelines
Be kind and respectful, give credit to the original source of content, and search for duplicates before posting. Learn more
community guidelines
Community Beginner ,
Sep 22, 2017 Sep 22, 2017

Bill,

Your right, I did forget the compound path on text.

I needed to walk away, start fresh and sure enough I got exactly result I needed (as well as method from Ton).

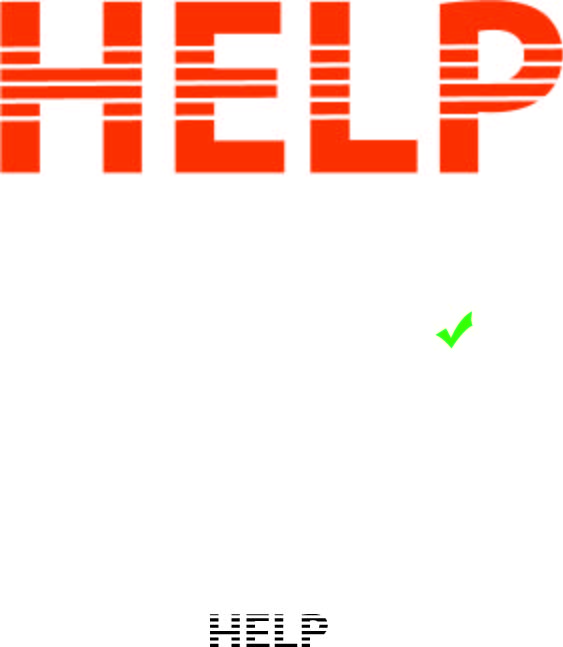

Bills method - create text to compound path

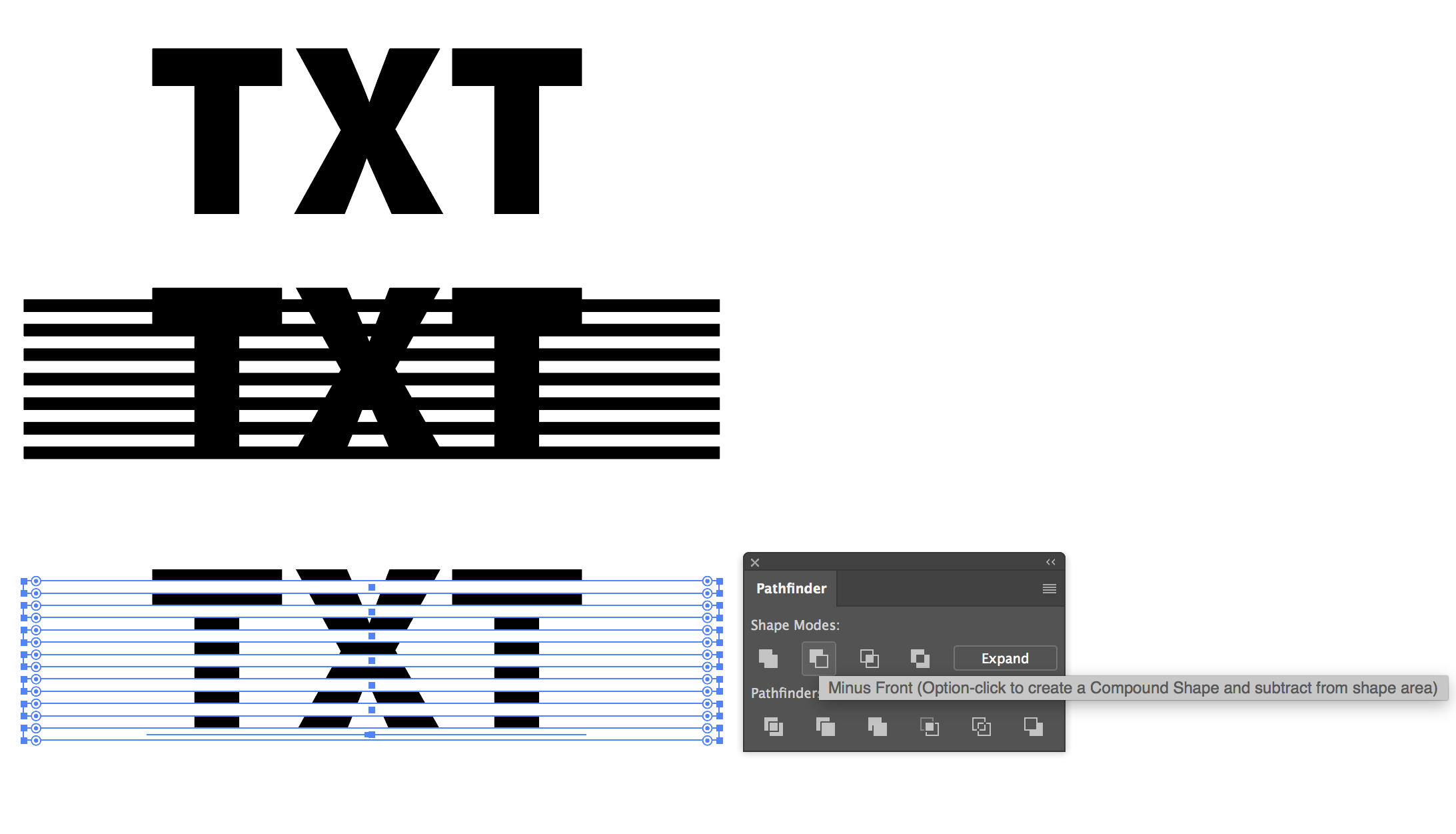

Bottom - Tons method basic text+bars --- alt+minus front

Translate
Report
Community guidelines
Be kind and respectful, give credit to the original source of content, and search for duplicates before posting. Learn more
community guidelines
Community Expert ,
Sep 22, 2017 Sep 22, 2017

You can still keep the type editable if you group the lines, than add the type to election & click make mask

Screen Shot 2017-09-22 at 2.52.30 PM.png

Then flip  checkmark settings until you get what you need

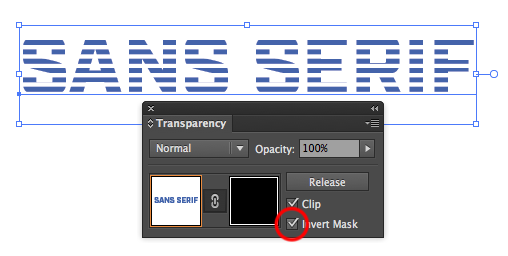

Screen Shot 2017-09-22 at 2.52.54 PM.png

There are a few hurdles you might encounter if you make  type outlines and pathfinder, which the explanation would get lengthy.

Translate
Report
Community guidelines
Be kind and respectful, give credit to the original source of content, and search for duplicates before posting. Learn more
community guidelines
Community Beginner ,
Sep 22, 2017 Sep 22, 2017

Mike

Definitely on right track. I thought this was simple as place txt, place bars, then minus front.


However I did get to work with some letters chopped off.


I'm going to reboot computer, Walk away and practice some more later. Lol.

Thank you, and everyone else for the help.  Try later tonight and start fresh :}

Translate
Report
Community guidelines
Be kind and respectful, give credit to the original source of content, and search for duplicates before posting. Learn more
community guidelines
Community Expert ,
Sep 22, 2017 Sep 22, 2017

For my part you are welcome, glad you got this working.

Translate
Report
Community guidelines
Be kind and respectful, give credit to the original source of content, and search for duplicates before posting. Learn more
community guidelines
Community Expert ,
Sep 22, 2017 Sep 22, 2017

You don't need to create outlines for your text.

Create your text.

Create the stripes from rectangles on top of the text.

Select all

Alt-Click the Minus Front icon in the Pathfinder panel to creat a compound shape.

Text and stripes will be editable.


Translate
Report
Community guidelines
Be kind and respectful, give credit to the original source of content, and search for duplicates before posting. Learn more
community guidelines
Community Beginner ,
Sep 22, 2017 Sep 22, 2017

Ton,

That's what I thought, I was doing exactly that (leaving text as is) and not converting to outlines.

created text

created bars

pathfinder minus front (even changed layer order)

result....


Translate
Report
Community guidelines
Be kind and respectful, give credit to the original source of content, and search for duplicates before posting. Learn more
community guidelines
Community Expert ,
Sep 22, 2017 Sep 22, 2017

Alt (Option) click on the Minus front icon.

Translate
Report
Community guidelines
Be kind and respectful, give credit to the original source of content, and search for duplicates before posting. Learn more
community guidelines
Community Beginner ,
Sep 22, 2017 Sep 22, 2017

Ton,

Thank you VERRRRRY much. All I had to do was to Alt+minus front on pathfinder and it worked.

created text

created bars

put bars at top of layers panel (not sure if mattered)

select all

alt+minus front and that did exactly what was trying to do. Geez couldn't wrap head around why seemed easy and couldn't figure out how to get to work.

Translate
Report
Community guidelines
Be kind and respectful, give credit to the original source of content, and search for duplicates before posting. Learn more
community guidelines
Community Expert ,
Sep 22, 2017 Sep 22, 2017

Glad you got it solved.

Translate
Report
Community guidelines
Be kind and respectful, give credit to the original source of content, and search for duplicates before posting. Learn more
community guidelines
Community Expert ,
Sep 22, 2017 Sep 22, 2017
LATEST

Happy to help.
