good morning,
I am working for several days now on an issue that I am not able to solve. even by following multiple posts, videos and having disucssions with a lot of people.
so today I hope to find some help here as this community helped me already a couple of times with great solutions - thanks to all of you!
I am having an ashlar consisting of several ashlars. and each of the ashlars should have a text on it, meaning that from the 3 sides of each ashlar that are visible, I would like to place a perspective text. normal text would be great, in a next step I would love to emboss or raise the text on or in the ashlar, but having a text first is my first hurdle.
I tried to do it in Illustrator and made a perspective grid and put the text on it, but it never is exactly in perspective as the grid follows a vanishing point.
I also tried shear text in InDesign (put the graphic in, placed a text field above and sheared it) - but it looks horrible...
So is there a chance to get my font in the right perspective on each side of the ashlar?
Unfortunately I cannot attacht the *.ai File?
thank yo very much for any help!

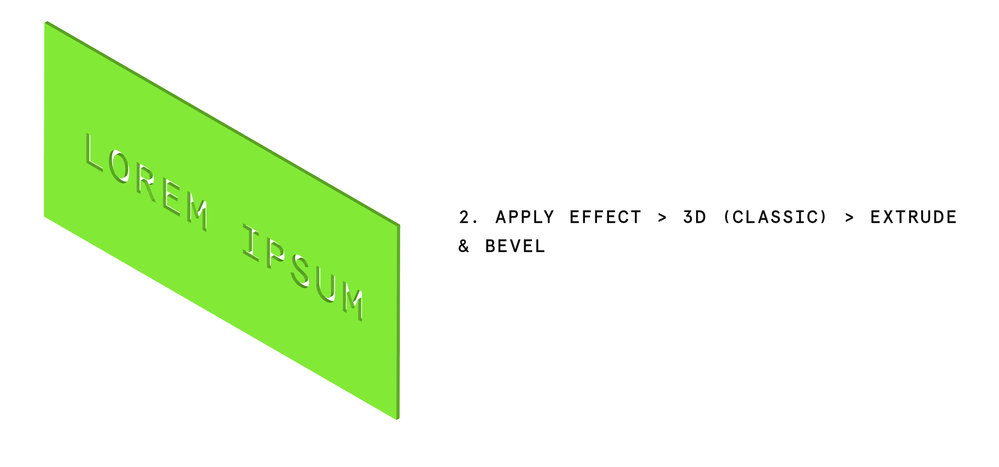

You could make the text into a symbol and use Effect > 3D and Materials > 3D (Classic) > Extrude & Bevel (Classic) to extrude a rectangle and map the symbol text to a side.
Choose one of the isometric presets instead.
Copy link to clipboard
Copied
You could make the text into a symbol and use Effect > 3D and Materials > 3D (Classic) > Extrude & Bevel (Classic) to extrude a rectangle and map the symbol text to a side.
Copy link to clipboard
Copied
that is an interesting idea, thank you ver much for the fast reply.
but I think I did something wrong because I can move the text, but it is not in perspective?
and if I extrude it (either solid or hollow) it only moves the text and not the pinkt ashlar (hollowing the pink ashlar with the text?)
I guess I am missing something?
Copy link to clipboard
Copied
Choose one of the isometric presets instead.
Copy link to clipboard
Copied
oh dear, ha! that did the trick. marvelous! thank you!
and may I ask you, are you maybe also aware of a way how to "cut out"/extrude the text from the respective side on which the text is? the symbol mus now somehow be combined with the side, right?
Copy link to clipboard
Copied

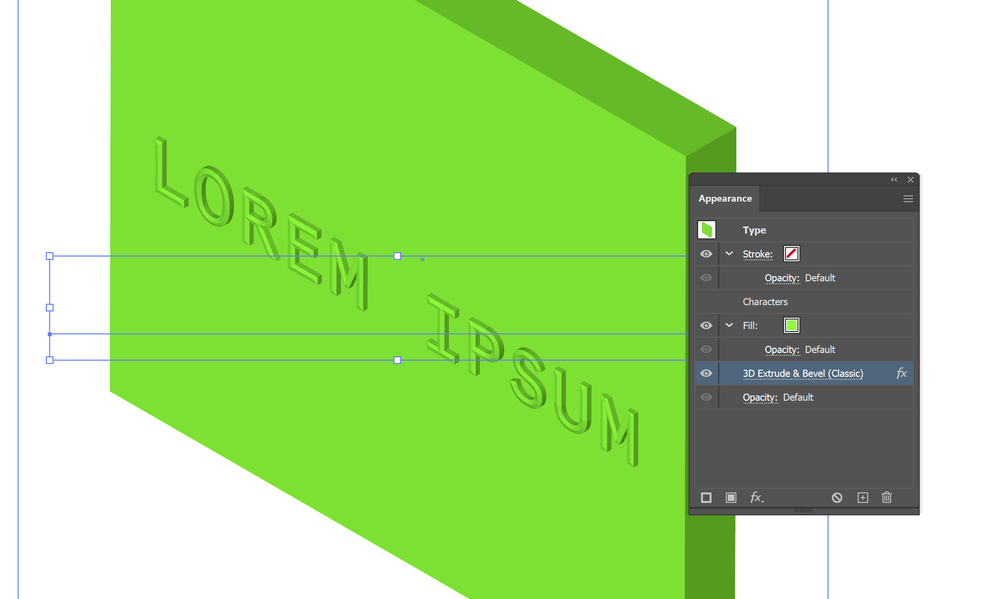

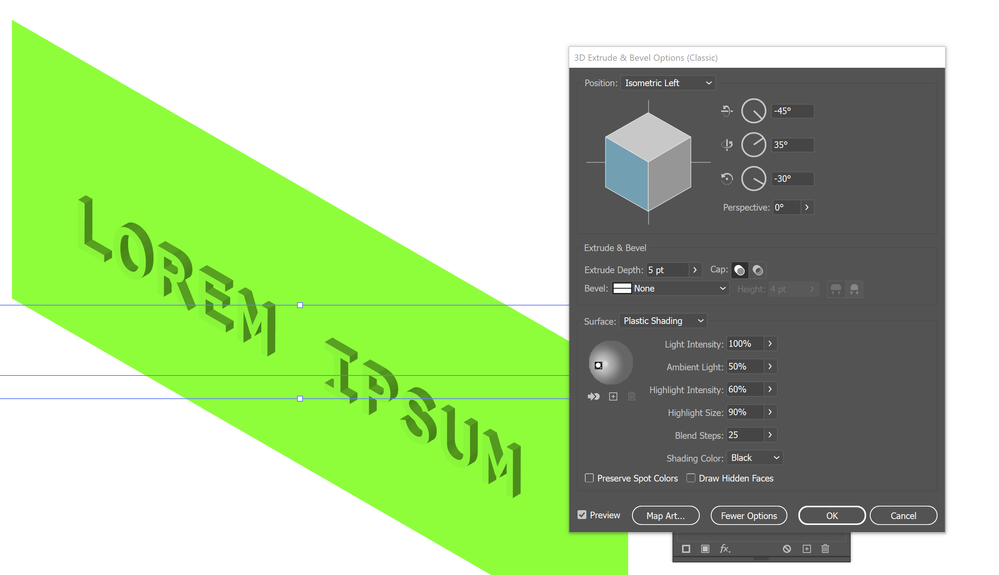

Instead of using symbol mapping, use the same 3D options on the text itself:
Copy link to clipboard
Copied
Copy link to clipboard
Copied
It doesn't matter how the block is made, the 3D text is just an object sitting in front of it.
Copy link to clipboard
Copied
ok, this I get, but how would I cut it out from the ashlar? like a negative of sitting in front of it? hollow in the ashlar?
Copy link to clipboard
Copied
Like this perhaps?
Copy link to clipboard
Copied
yap, exactly like this... thank you very very much, but I am not abel to do this.
great help, thank you!
Copy link to clipboard
Copied
Where are you getting stuck?
Copy link to clipboard
Copied
thank you for asking 😉

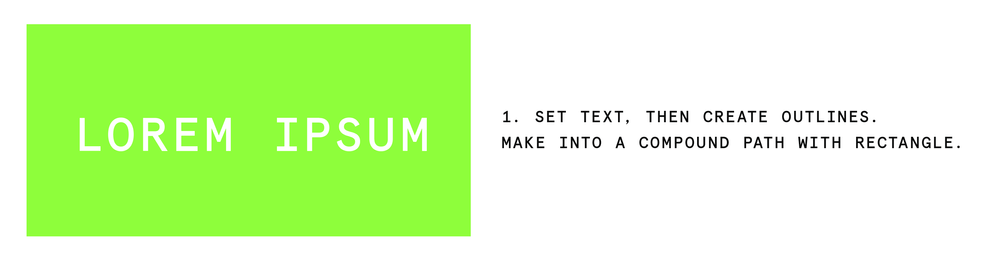

make into compound path with rectangle

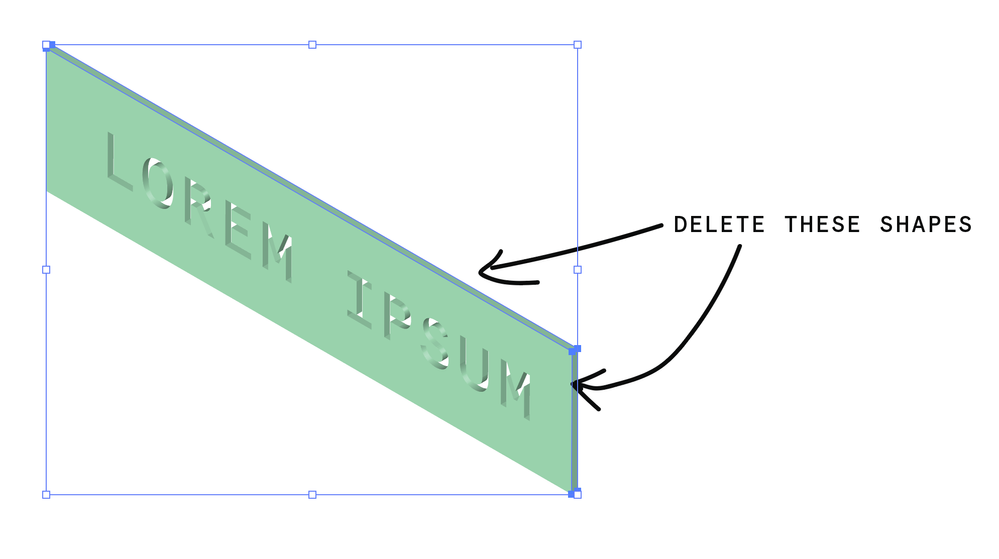

delete the sides

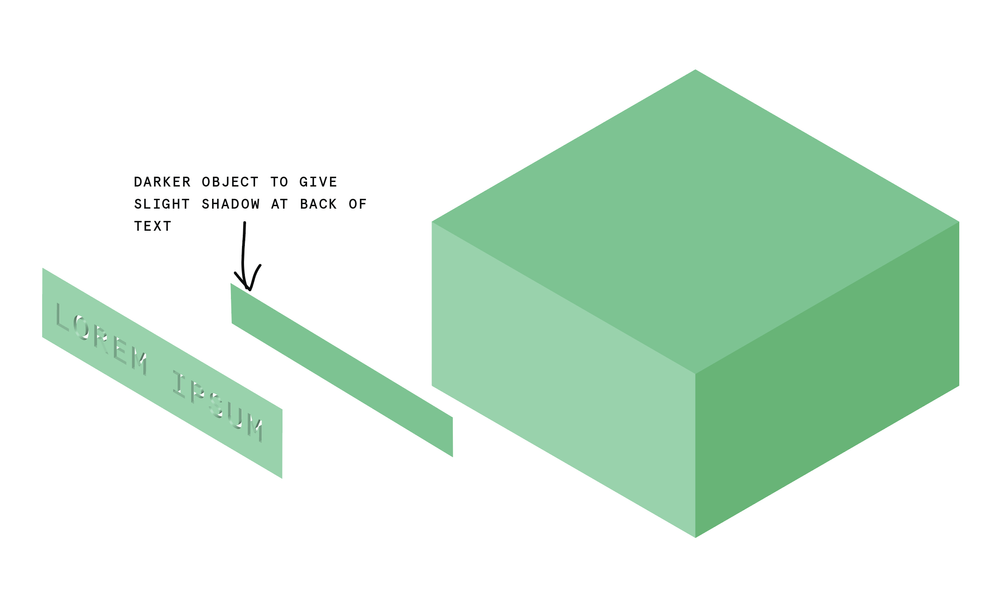

place green object beind
these things are all new to me and I cannot translate this steps into my existing ashlar. I guess I have to know the text as I cannot edit it after being outlines, right? So I need the word I am going to use, the font and the size fixed. after that transforming it into outlines might work, but what is a compund path - I have to look this up.
and I need another rectangle? on top of my ashlars side? and then I delete sides and place an object? that would then be the ashlar again?
that is very confusing to me but I will try to look all theses things up and do not want to waste your time as I guess what you are describing should be findable in other online resources!
Copy link to clipboard
Copied

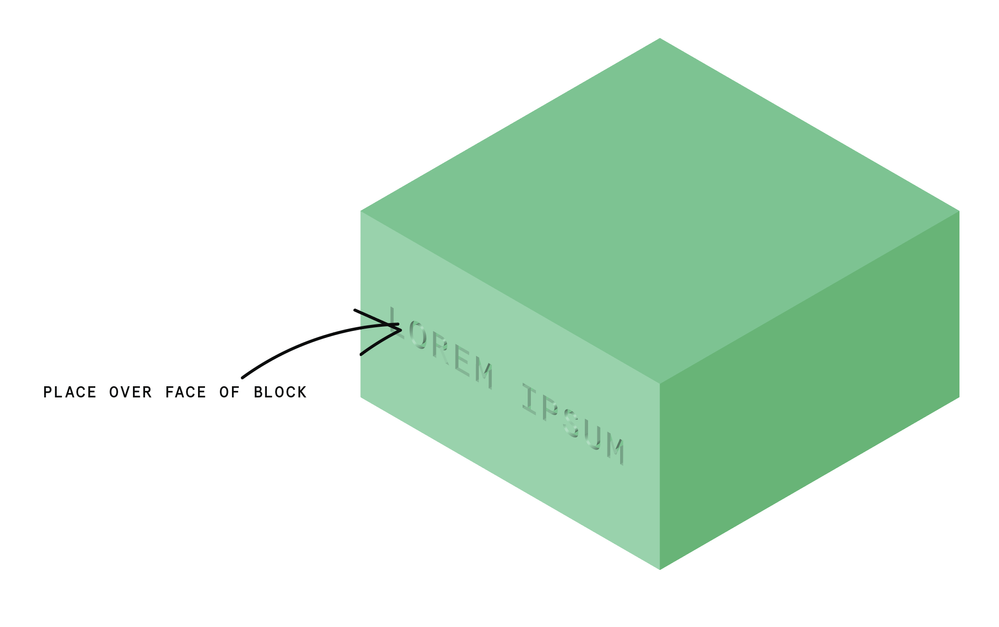

Just make the face of it the same colour and place it over your existing block.
A compound path is multiple paths that have a single appearance and perform a boolean operation where they overlap -- to either exclude or add. So the text is cut out from the rectangle.
The text would not be editable after creating a compound path. I can't think of a method that retains editable text.
Some more details:
