After the odd pages become even pages, the full background will be misaligned

  • February 7, 2020
  • 3 replies
  • 1354 views

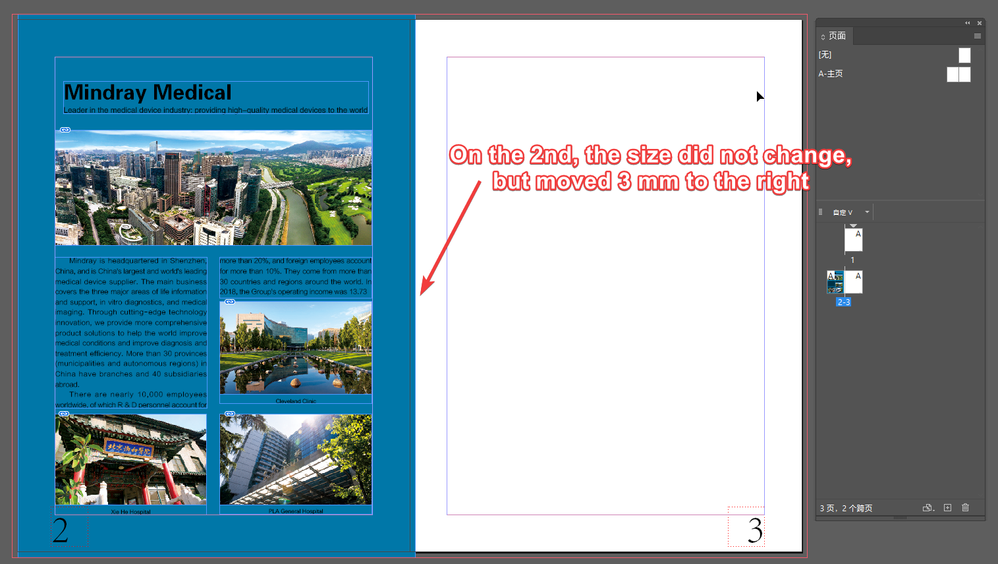

A page with a full background, when it is on an odd page, such as page 3, just fits the page. When the third page becomes the second page (such as deleting the second page), the full background will be misaligned and moved 3 mm to the right. If I have hundreds of pages of documents, it will be very troublesome to operate. How to solve it? Thank you ~



You can create a file and try it yourself.

Therefore, I will not upload files.

This topic has been closed for replies.
Correct answer rob day

That’s normal behavior. When the page is on the right the X position of the left edge of the blue frame is 0". When you move the page to the left of the spine the X position remains as 0", but the X position of the frame would have to be at -.125" in order to be included in the bleed.



Here I have my rulers set to per page:

3 replies

L
Community Expert
LaubenderCommunity Expert
Community Expert
February 10, 2020

My screenshots are too small? Hm. That's the new forum software.

Try to right-click a screenshot and show it in its own tab with your browser.



If that does not help check my InDesign 2020 document:

https://www.dropbox.com/s/2kl9pbabq9l9s8k/AnchoredFrame-FacingPagesDoc-2020.indd?dl=0



If you see an easier way to automate the position away from spine in a facing pages document I'm all ears.



Regards,
Uwe Laubender

( ACP )

L
Community Expert
LaubenderCommunity Expert
Community Expert
February 10, 2020

Hi 喜狼_edny,

there are several strategies to work around this issue.

I think, the best one is to use anchored frames where the anchor position is related to the spine.



1. Yellow rectangle anchored to text frame on the page:



2. Anchor position relative to spine ( away from spine ) and the edge of the page:



3. One page added after page 1:



( All screenshots from my German InDesign 2020 on Windows 10 )



Regards,
Uwe Laubender

( ACP )

dublove
dubloveAuthor
Legend
February 10, 2020

thank you

Laubender

It doesn't mean that, you are complicated. And your picture is too small.

rob day
Community Expert
rob dayCommunity ExpertCorrect answer
Community Expert
February 7, 2020

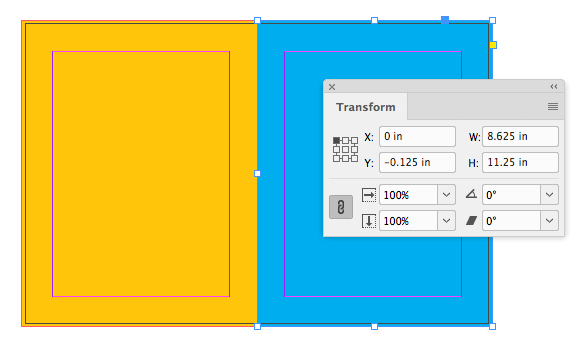

That’s normal behavior. When the page is on the right the X position of the left edge of the blue frame is 0". When you move the page to the left of the spine the X position remains as 0", but the X position of the frame would have to be at -.125" in order to be included in the bleed.



Here I have my rulers set to per page:

    dublove
    dubloveAuthor
    Legend
    February 9, 2020

    Hello, I still don't fully understand what you mean.
    I want to ask, is there a place to set up, and then delete the page, can ensure that the full page background page is always inside the page, whether on odd or even pages will not be misplaced.

    Is there an animated demo, or a more concise screenshot.



    Refers to hundreds of pages, you don't need to manually move each page


    thank you very much.
