God of all gods, come up with an good idea together.
Hi m1b.
I am sorry, I still couldn't help myself. Confusion is torture.
When there is only one row in the header, it can be directly converted to a header.
like this:
var doc = app.activeDocument,
selectedRows = getRows(doc.selection[0]);
var headerRows = convertToRowType(selectedRows, RowTypes.HEADER_ROW);

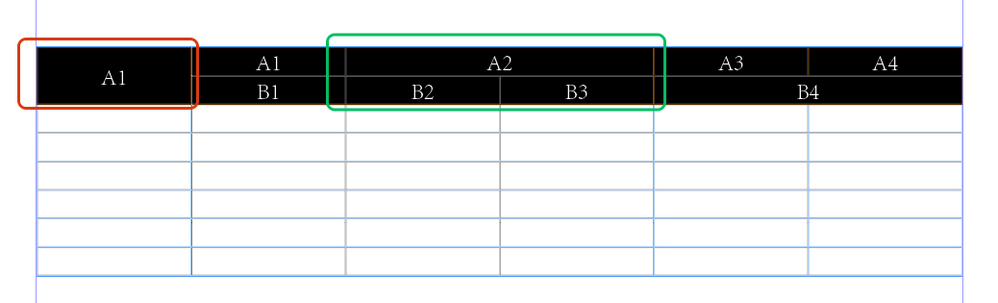

But when there are cross row columns, conversion is not allowed.

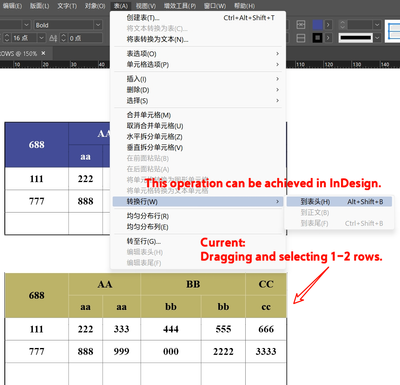

Sometimes it needs to be converted to BODY_ROWS, and sometimes it needs to be converted to HEADER_ROWS.
1 Correct answer
Hi @dublove ,
please do comments on my code here in this thread and not in a different one.
You said in this other thread:
"The code doesn't make sense, my goal is to identify the selected row (and then I'll do the table header conversion).
But it seems to return the selected table?"
In this very thread you said:
"My true purpose is add:
Step 2: Convert the selec
32
Replies
You misunderstood me.
You want to convert the currently selected rows to HEADER_ROWS.
What you discussed before was just a simple rows.
This is almost impossible for span rows(spread rows).
Ah, m1b understands me best.
Hi @dublove , It sounds like you are expecting row 1 to have 9 cells, but it only has 5:
//selected frame’s first table’s first row
var c = app.activeDocument.selection[0].tables[0].rows[0].cells
$.writeln(c.length)
//returns 5
for (var i = 0; i < c.length; i++){
c[i].fillColor = "Black"
c[i].fillTint = 20
};
Not sure what you are trying to do, but if it’s convert the first 2 rows of your example to headers, that throws an error

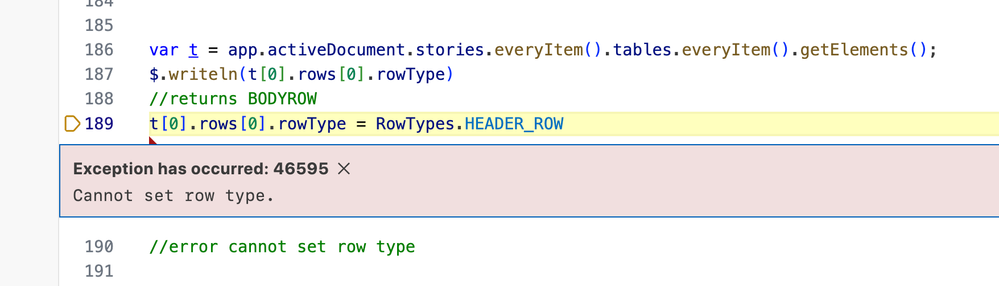

var t = app.activeDocument.stories.everyItem().tables.everyItem().getElements();
$.writeln(t[0].rows[0].rowType)
//returns BODYROW
t[0].rows[0].rowType = RowTypes.HEADER_ROW
//error cannot set row type

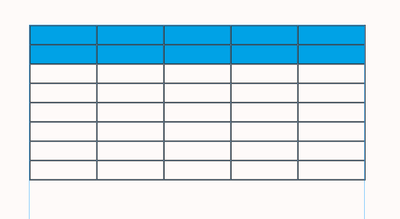

Looks like the error is happening because you have split the rows. If I run this in a table that has not been split:
var c = app.activeDocument.stories.everyItem().tables.everyItem().rows.everyItem().getElements()
try {
c[0].rowType = RowTypes.HEADER_ROW
c[1].rowType = RowTypes.HEADER_ROW
alert("Rows 1 & 2 have been converted to headers" )
}catch(e) {
alert(e)
}

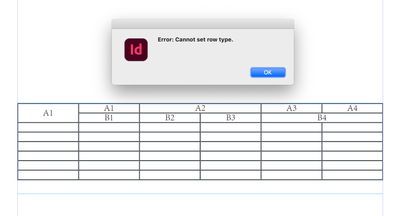

Run on your table with split rows:
You would have to create the headers before you merge the cells
//get the rows of table 1 of story 1
var r = app.activeDocument.stories[0].tables[0].rows.everyItem().getElements()//
try {
//set the first 2 rows to headers
r[0].rowType = RowTypes.HEADER_ROW
r[1].rowType = RowTypes.HEADER_ROW
//merge cell 1 of row 1 with cell 1 of row2
r[0].cells[0].merge(r[1].cells[0])
alert("Rows 1 & 2 have been converted to headers" )
}catch(e) {
alert(e)
}
What I mean is,
I plan to select the first two rows. Convert their row type to HEADER_ROWS.
Note that I selected them by dragging. But that's not critical to solving this bug. The key is whether the conversion to HEADER_ROWS can be performed during the decomposition process.
If there are no cross-rows, the conversion is fine.
Check out m1b's original post; he set up a function called getRows();
I can get the length of the selected rows, so I can operate on any row.

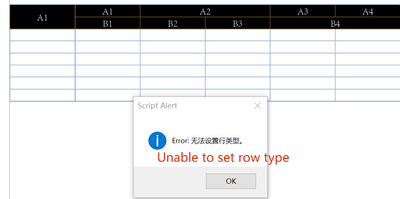

If there are merged cells, it will prompt that the row type cannot be set.
In m1b's solution, A. first unmerge the cells, C. then merge the cells again.
I think if we can (i.e., after A unmerges the cells), B. immediately convert to HEADER_ROWS, C. then merge the cells again.
That would solve the problem, but A and C seem to be inseparable.
These two pieces of code don't work either.

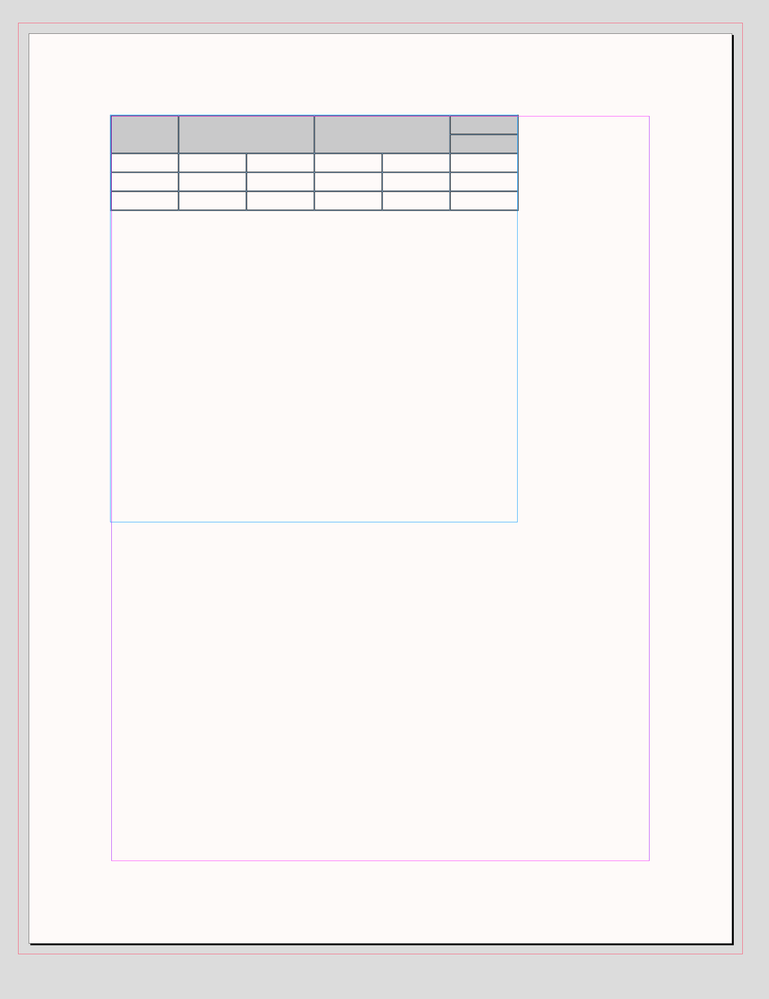

You would have to start with a new table or construct the table via scripting. This makes a new table on page1:
//using millimeters
app.scriptPreferences.measurementUnit = MeasurementUnits.MILLIMETERS;//
var d = app.activeDocument
//add a text frame on page 1 of active document
var f = d.textFrames.add ({ geometricBounds: [25,25,150,150]})
//add a 6 column table to the text frame with 2 header rows
var t = f.tables.add ({columnCount:6, bodyRowCount:3, headerRowCount:2, width:125})
//get the rows
var r = t.rows
//merge header cells
r[0].cells[0].merge(r[1].cells[0])
r[0].cells[1].merge(r[1].cells[1])
r[0].cells[2].merge(r[1].cells[1])
//header color
r[0].properties = ({fillColor:"Black", fillTint:20})
r[1].properties = ({fillColor:"Black", fillTint:20})
app.scriptPreferences.measurementUnit = AutoEnum.AUTO_VALUE;
