group object figure caption text frame size change

[sreekarthik_k]

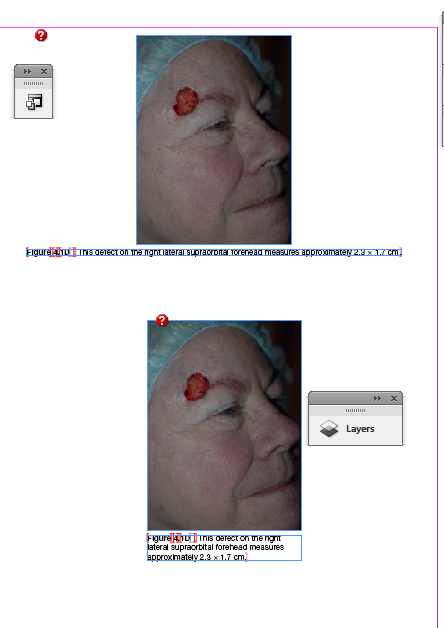

I need to change the figure caption text frame size based on the figure width in a grouped objects

How to do this please advice.

[Kai Rübsamen]

Where is your visual example and your code tryout?

[sreekarthik_k]

    var myDoc = app.activeDocument;

    var myGroup =  myDoc.groups

    for (var i =0;i<myGroup.length;i++)

        {

            var myname = myGroup.name;

                        for (var j= 0;j<myGroup.pageItems.length;j++)

                        {

                                    var Bound = myGroup.pageItems.geometricBounds;

                                    var height = Bound[2] - Bound[0];

                                    var width = Bound[3] - Bound[1];

                                  //  $.writeln (width )

                                change_width = 240;

                                 if (myGroup.pageItems == "[object TextFrame]")

                                    {

                          app.select(myGroup.pageItems)

                         myStoreBounds = myGroup.pageItems.geometricBounds

                        app.selection[0].geometricBounds = [myStoreBounds[0], myStoreBounds[1], myStoreBounds[2], myStoreBounds[1]+width ]

                        app.selection[0].fit(FitOptions.frameToContent);

                        app.select(myGroup.allPageItems);

                        myDoc.align (app.selection, AlignOptions.HORIZONTAL_CENTERS)

[Kai Rübsamen · Accepted solution]

Your informations and the code are not accurate! > Some parentheses are missing, expand the textframe 240 or to the width of the corresponding image?

However: While fit to content works in the UI, it expands the caption frame in my test to the right. So I decide to write a own function for the fitting.

main();
function main() {
var curDoc = app.activeDocument;
var allGroups =  curDoc.groups;
for (var i = 0; i < allGroups.length; i++) {
  var curGroup = allGroups;
  var pItems = curGroup.pageItems;
  if (pItems.length != 2) { continue; }
  for (var j = 0; j < pItems.length; j++) {
    var curItem = pItems.getElements()[0];
    var constrName = curItem.constructor.name;
    if (constrName == "Rectangle") {
      var rect = curItem;
    }
    else if (constrName == "TextFrame") {
      var tf = curItem;
    }
  }
  var rectGB = rect.geometricBounds;
  var tfGB = tf.geometricBounds;
  tfGB[1] = rectGB[1];
  tfGB[3] = rectGB[3];
  tfGB[2] = tfGB[2] + 20;
  tf.geometricBounds = tfGB;
  fitFrame(tf);
}
function fitFrame(aFrame) {
  var lastBaseLine = aFrame.lines[-1].baseline;
  var b = aFrame.geometricBounds;
  aFrame.geometricBounds = [b[0], b[1], lastBaseLine, b[3]];
}
}

Note: The script will check, if there are two page items in the group. It will not check, if those two items are textframe and rectangle, it assumes that it is correct.

Kai

[sreekarthik_k]

Thank you so much. You are the lifesaver

[sreekarthik_k]

I need to move the caption image right side of the image like below

How to do this

[Kai Rübsamen]

Feel free, to make a suggestion 😉

How would you do it in the UI? Note the steps and try to script it!
