InDesign's numbering feature seems to only support paragraph styles in connected text boxes by default.

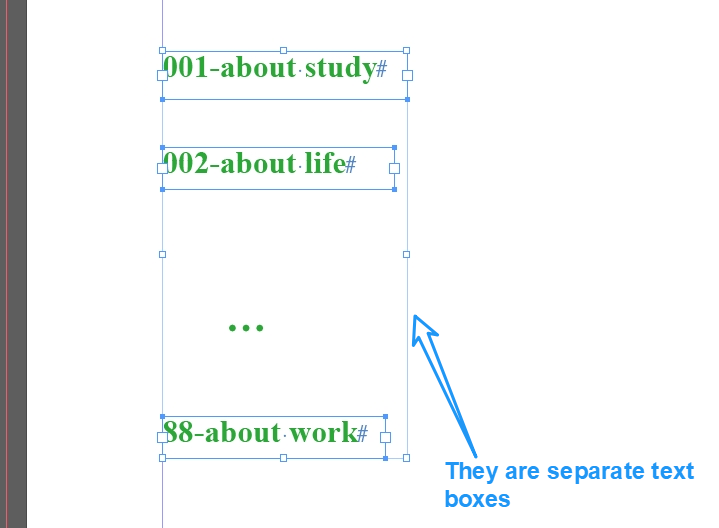

In fact, sometimes we have to set automatic numbering for paragraphs in separate text boxes.
How to solve this problem?
Thank you.
TOPICS
Bug
,
Feature request
,
How to
,
Performance
,
Scripting
2 Correct answers
Community Expert
,
Sep 14, 2024
Follow the nonobvious but essential InDesign rule —"Never use [default] anything!"
If you create a numbered style and allow it to remain at the [Default] numbering list, it will want to restart in each box. If you create a specific numbering list, it will number across the text boxes. (Only the master Jedi ID developers know why, but this kind of quirk is why you don't use any default style or setting.)
But there's still a catch: you have to get the text boxes in the correct order, as th
...
Community Expert
,
Sep 16, 2024
Haha, so sorry it was a bit complicated! The point was to show a range of examples.
But you do make a good point that it would really help to have a UI. I've added one to the version below.
I did it fast, so hopefully no bugs! Note: it only does one numbering scheme at a time, but that will be fine for most people. To use it without the UI, just configure `numberings` and set `settings.showUI: false`.
- Mark
/**
* @File Apply Numbering.js
*
* Searches document for "numberings" which ar
7
Replies
7
7
Replies
Community Expert
,
Follow the nonobvious but essential InDesign rule —"Never use [default] anything!"
If you create a numbered style and allow it to remain at the [Default] numbering list, it will want to restart in each box. If you create a specific numbering list, it will number across the text boxes. (Only the master Jedi ID developers know why, but this kind of quirk is why you don't use any default style or setting.)
But there's still a catch: you have to get the text boxes in the correct order, as the numbering seems to be bound to order of creation.
Community Expert
,

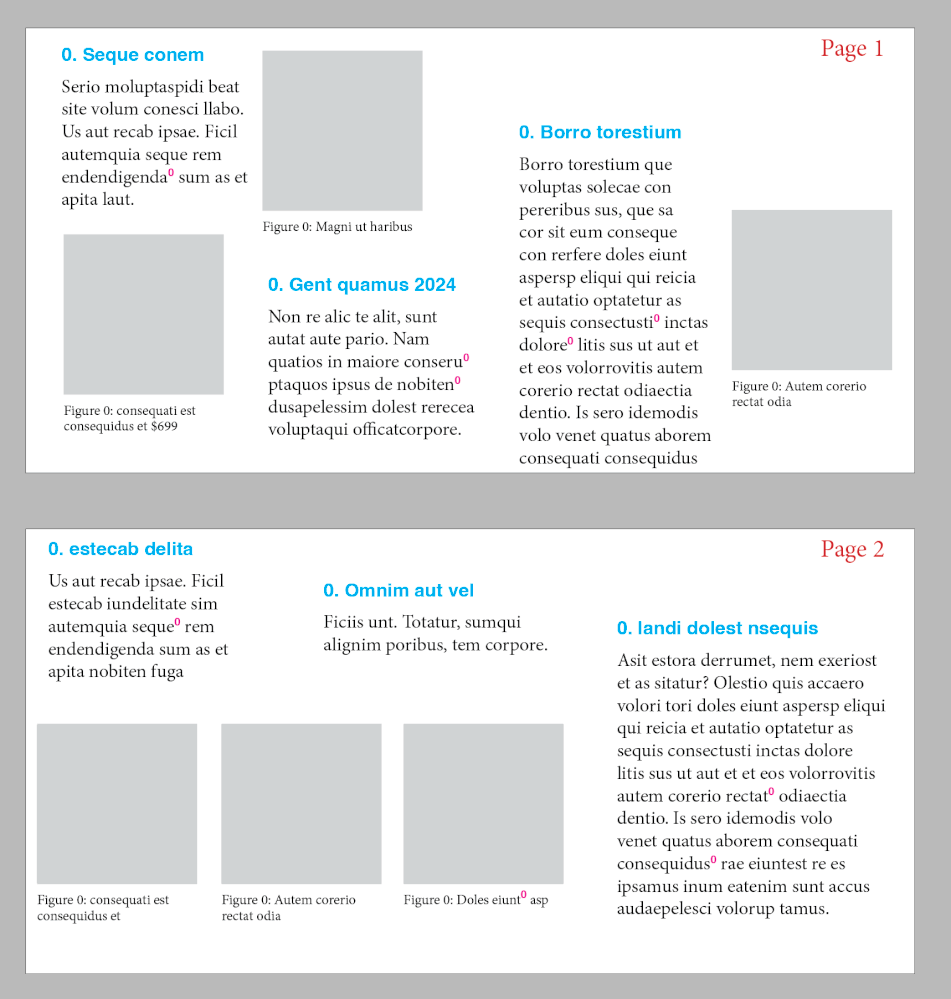

Hi @dublove, I have made an alternative approach that may be useful sometimes if the built-in numbering is too much trouble.
This script applies numbering based on the configured criteria, such as applied Paragraph Style or Character Style. As an example I have configured three different numberings—a Heading numberer, a Figure numberer and a "Footnote-like" symbol numberer (the magenta superscript numbers). See the attached demo.indd.
It is a very lightweight approach, and if anything is reordered in your document, you must run the script again to update the numbering. To use it, you must configure the script according to your document, such as entering your heading paragraph style(s) and whether you want the script to prefer horizontal sorting over vertical sorting (the demo uses horizontal, but your example above would need vertical).
- Mark
/**
* @file Apply Numbering.js
*
* Searches document for "numberings" which are configured
* in the script, then sorts the results and applies numbering.
*
* To use, first configure your numberings array to match your document.
*
* Notes:
*
* - `preferHorizontal` means wether to prefer horizontal sorting
* over vertical sorting.
*
* - `padWithZeros` is the count of how many digits you want, for example
* the number 24 with padWithZeros of 4 gives '0024'.
*
* - `stopAfterFirstNumberInParagraph` means whether to apply numbering
* to subsequent numbers found in the same paragraph. For example,
* if your heading was "12. The 2024 Economy", we would want it to
* leave "2024" untouched, so stopAfterFirstNumberInParagraph = true,
* which is the default.
*
* @author m1b
* @version 2024-09-15
* @discussion https://community.adobe.com/t5/indesign-discussions/how-do-i-automatically-set-numbering-for-paragraph-styles-in-multiple-unconnected-text-boxes/m-p/14860638
*/
function main() {
// EDIT YOUR CONFIGURATION BELOW
/* ------------------------ *
* Example numberings *
* ------------------------ */
var numberings = [
{
findGrepPreferences: {
findWhat: '\\b\\d+\\b',
appliedParagraphStyle: 'Numbered Heading',
},
padWithZeros: 3,
preferHorizontal: true,
},
{
findGrepPreferences: {
findWhat: '\\b\\d+\\b',
appliedParagraphStyle: 'Numbered Figure',
},
preferHorizontal: true,
},
{
// here we want to number every instance
// even if it's in the same paragraph
stopAfterFirstNumberInParagraph: false,
findGrepPreferences: {
findWhat: '\\d+\\b',
appliedCharacterStyle: 'Numbered Symbol',
},
preferHorizontal: true,
},
];
var settings = {
// text frames that are within 3 pt are considered aligned
defaultTolerance: 5,
// whether horizontal sorting should win against vertical sorting
defaultPreferHorizontal: false,
// default find grep options
defaultFindGrepOptions: {
includeLockedLayersForFind: false,
includeLockedStoriesForFind: false,
includeHiddenLayers: false,
includeFootnotes: true,
includeMasterPages: false,
searchBackwards: false,
},
};
// END OF CONFIGURATION
if (0 === app.documents)
return alert('Please open a document and try again.');
app.scriptPreferences.measurementUnit = MeasurementUnits.POINTS;
var doc = app.activeDocument;
// perform each numbering
for (var i = 0, numbering, numberables, numberables; i < numberings.length; i++) {
numbering = numberings[i];
if (!numbering.findGrepPreferences)
continue;
app.findGrepPreferences = NothingEnum.NOTHING;
app.findGrepPreferences.properties = numbering.findGrepPreferences;
app.findChangeGrepOptions.properties = numbering.findChangeGrepOptions || settings.defaultFindGrepOptions;
// find the numbers
numberables = doc.findGrep();
// remove illegal numbers
if (false !== numbering.stopAfterFirstNumberInParagraph)
numberables = getFirstFoundInParagraph(numberables);
// sort
numberables.sort(getSorter({
tolerance: numbering.tolerance || settings.defaultTolerance,
preferHorizontal: numbering.preferHorizontal || settings.defaultPreferHorizontal,
}));
// apply numbering
for (var len = numberables.length, j = len - 1, n = len; j >= 0; j--, n--) {
numberables[j].contents = numbering.padWithZeros
? ('00000000' + n).slice(-numbering.padWithZeros)
: String(n);
}
}
};
app.doScript(main, ScriptLanguage.JAVASCRIPT, undefined, UndoModes.ENTIRE_SCRIPT, 'Apply Numbering');
/**
* Returns a sorting function suitable
* for sorting numberable text.
*
* Numberables with x or y values that are
* within `tolerance` pts are considered aligned.
*
* @author m1b
* @version 2024-09-15
* @param {Number} tolerance - the x or y distance in pts.
* @returns {Function}
*/
function getSorter(options) {
options = options || {};
return (function (tolerance, preferHorizontal) {
return function sortTextByFramePosition(a, b) {
// compare same story index
if (a.parentStory.id === b.parentStory.id)
return a.index - b.index;
// compare page index
if (a.parentTextFrames[0].parentPage.documentOffset !== b.parentTextFrames[0].parentPage.documentOffset)
return a.parentTextFrames[0].parentPage.documentOffset - b.parentTextFrames[0].parentPage.documentOffset;
// compare top left of text frame
var ab = a.parentTextFrames[0].geometricBounds,
bb = b.parentTextFrames[0].geometricBounds,
dx = Math.abs(ab[1] - bb[1]),
dy = Math.abs(ab[0] - bb[0]),
result;
if (!preferHorizontal) {
if (dy > tolerance)
result = ab[0] - bb[0];
if (!result && dx > tolerance)
result = ab[1] - bb[1]
}
else {
if (dx > tolerance)
result = ab[1] - bb[1];
if (!result && dy > tolerance)
result = ab[0] - bb[0]
}
return result || 0;
};
})(options.tolerance || 0, true === options.preferHorizontal);
};
/**
* Returns an array of only the first text
* instance of `found` in each paragraph.
* Note: assumes that `found` is in the
* usual findGrep order.
* @author m1b
* @version 2024-09-15
* @param {Array<Text>} found - the text to filter.
* @returns {Array<Text>}
*/
function getFirstFoundInParagraph(found) {
var firstOnly = [];
for (var j = 0, para = undefined; j < found.length; j++) {
if (found[j].paragraphs[0] !== para)
firstOnly.push(found[j])
para = found[j].paragraphs[0];
}
return firstOnly;
};
Community Expert
,
Haha, so sorry it was a bit complicated! The point was to show a range of examples.
But you do make a good point that it would really help to have a UI. I've added one to the version below.
I did it fast, so hopefully no bugs! Note: it only does one numbering scheme at a time, but that will be fine for most people. To use it without the UI, just configure `numberings` and set `settings.showUI: false`.
- Mark
/**
* @File Apply Numbering.js
*
* Searches document for "numberings" which are configured
* in the script, then sorts the results and applies numbering.
*
* To use, either configure script to show UI for figuring ONE
* numbering scheme, or set `settings.showUI` to false if you
* want to configure multiple numberings at once.
*
* Notes:
*
* - `preferHorizontal` means wether to prefer horizontal sorting
* over vertical sorting.
*
* - `padWithZeros` is the count of how many digits you want, for example
* the number 24 with padWithZeros of 4 gives '0024'.
*
* - `onlyFirstNumberInParagraph` means whether to stop after applying
* numbering to the first found number in a paragraph. For example,
* if your heading was "12. The 2024 Economy", we would want it to
* leave "2024" untouched, so onlyFirstNumberInParagraph = true,
* which is the default. However, for footnote-type numbering, you
* would set it to false because a paragraph could have several.
*
* - change the values in `settings.defaultFindGrepOptions` to configure
* the find grep options.
*
* @author m1b
* @version 2024-09-17
* @discussion https://community.adobe.com/t5/indesign-discussions/how-do-i-automatically-set-numbering-for-paragraph-styles-in-multiple-unconnected-text-boxes/m-p/14860638
*/
function main() {
// EDIT YOUR CONFIGURATION BELOW
var settings = {
// text frames that are within 3 pt are considered aligned
defaultTolerance: 5,
// whether horizontal sorting should win against vertical sorting
defaultPreferHorizontal: false,
// default find grep options
defaultFindGrepOptions: {
includeLockedLayersForFind: false,
includeLockedStoriesForFind: false,
includeHiddenLayers: false,
includeFootnotes: true,
includeMasterPages: false,
searchBackwards: false,
},
// whether to show the UI, but if so,
// only the first numbering will execute
showUI: true,
};
/* --------------------------------- *
* Example numberings *
* --------------------------------- *
* Note: if using the UI, then only *
* the first example will be active. *
* --------------------------------- */
var numberings = [
{
findGrepPreferences: {
findWhat: '\\b\\d+\\b',
appliedParagraphStyle: 'Numbered Heading',
},
padWithZeros: 3,
preferHorizontal: true,
},
{
findGrepPreferences: {
findWhat: '\\b\\d+\\b',
appliedParagraphStyle: 'Numbered Figure',
},
preferHorizontal: true,
},
{
// this numbering example is for "footnote" style
// numbering, where we want to number every instance
// even if it's in the same paragraph
findGrepPreferences: {
findWhat: '\\d+\\b',
appliedCharacterStyle: 'Numbered Symbol',
},
onlyFirstNumberInParagraph: false,
preferHorizontal: true,
},
];
// END OF CONFIGURATION
if (0 === app.documents)
return alert('Please open a document and try again.');
var doc = settings.doc = app.activeDocument;
settings.numberings = numberings;
app.scriptPreferences.measurementUnit = MeasurementUnits.POINTS;
if (settings.showUI) {
var result = ui(settings);
if (2 === result)
// user cancelled
return;
if (undefined != settings.cleanup) {
settings.cleanup();
delete settings.cleanup;
}
}
// perform each numbering
for (var i = 0, numbering, found, found; i < settings.numberings.length; i++) {
numbering = settings.numberings[i];
if (!numbering.findGrepPreferences)
continue;
app.findGrepPreferences = NothingEnum.NOTHING;
app.findGrepPreferences.properties = numbering.findGrepPreferences;
app.findChangeGrepOptions.properties = numbering.findChangeGrepOptions || settings.defaultFindGrepOptions;
// find the numbers
found = doc.findGrep();
// remove illegal numbers
if (false !== numbering.onlyFirstNumberInParagraph)
found = getFirstFoundInParagraph(found);
// sort
found.sort(getSorter({
tolerance: numbering.tolerance || settings.defaultTolerance,
preferHorizontal: numbering.preferHorizontal || settings.defaultPreferHorizontal,
}));
// apply numbering
for (var len = found.length, j = len - 1, n = len; j >= 0; j--, n--) {
found[j].contents = numbering.padWithZeros
? ('00000000' + n).slice(-numbering.padWithZeros)
: String(n);
}
}
};
app.doScript(main, ScriptLanguage.JAVASCRIPT, undefined, UndoModes.ENTIRE_SCRIPT, 'Apply Numbering');
/**
* Returns a sorting function suitable
* for sorting numberable text.
*
* Numberables with x or y values that are
* within `tolerance` pts are considered aligned.
*
* @author m1b
* @version 2024-09-15
* @Param {Number} tolerance - the x or y distance in pts.
* @Returns {Function}
*/
function getSorter(options) {
options = options || {};
return (function (tolerance, preferHorizontal) {
return function sortTextByFramePosition(a, b) {
// compare same story index
if (a.parentStory.id === b.parentStory.id)
return a.index - b.index;
// compare page index
if (a.parentTextFrames[0].parentPage.documentOffset !== b.parentTextFrames[0].parentPage.documentOffset)
return a.parentTextFrames[0].parentPage.documentOffset - b.parentTextFrames[0].parentPage.documentOffset;
// compare top left of text frame
var ab = a.parentTextFrames[0].geometricBounds,
bb = b.parentTextFrames[0].geometricBounds,
dx = Math.abs(ab[1] - bb[1]),
dy = Math.abs(ab[0] - bb[0]),
result;
if (!preferHorizontal) {
if (dy > tolerance)
result = ab[0] - bb[0];
if (!result && dx > tolerance)
result = ab[1] - bb[1]
}
else {
if (dx > tolerance)
result = ab[1] - bb[1];
if (!result && dy > tolerance)
result = ab[0] - bb[0]
}
return result || 0;
};
})(options.tolerance || 0, true === options.preferHorizontal);
};
/**
* Returns an array of only the first text
* instance of `found` in each paragraph.
* Note: assumes that `found` is in the
* usual findGrep order.
* @author m1b
* @version 2024-09-15
* @Param {Array<Text>} found - the text to filter.
* @Returns {Array<Text>}
*/
function getFirstFoundInParagraph(found) {
var firstOnly = [];
for (var j = 0, para = undefined; j < found.length; j++) {
if (found[j].paragraphs[0] !== para)
firstOnly.push(found[j])
para = found[j].paragraphs[0];
}
return firstOnly;
};
/**
* Shows UI for Apply Numbering script,
* allowing for only one numbering scheme.
* @Param {Object} settings - the settings to adjust.
* @Returns {1|2} - result code
*/
function ui(settings) {
// the UI only handles one numbering scheme
if (settings.numberings.length > 1)
settings.numberings.splice(1, settings.numberings.length - 1)
// try to load numbering from document
var key = 'm1b_applyNumbering',
savedValues = settings.doc.extractLabel(key);
if (savedValues && savedValues.length > 0)
settings.numberings[0] = reviveNumbering(savedValues);
var w = new Window("dialog", 'Apply Numbering', undefined, { closeButton: false }),
// numberings
numberingsGroup = w.add("group {orientation:'column', alignment:['fill','top'], margins: [0,0,0,0] }"),
numberingUI = numberingUI(numberingsGroup, 0, settings.numberings[0]),
bottomUI = w.add("group {orientation:'row', alignment:['fill','top'], margins: [0,0,0,0] }"),
extraControls = bottomUI.add("group {orientation:'row', alignChildren: ['left','center'] alignment:['fill','center'] }"),
saveInDocCheckBox = extraControls.add("CheckBox { text: 'Save these settings in document', alignment:['left','bottom'] }"),
buttons = bottomUI.add("group {orientation:'row', alignment:['right','top'], alignChildren:'right' }"),
cancelButton = buttons.add('button', undefined, 'Cancel', { name: 'cancel' }),
applyButton = buttons.add('button', undefined, 'Apply', { name: 'ok' });
// event handling
applyButton.onClick = apply;
w.center();
return w.show();
/**
* Executes the numbering by closing
* dialog with return code 1.
*/
function apply() {
// update numbering
settings.numberings = [numberingUI.getNumbering()];
if (saveInDocCheckBox.value) {
settings.cleanup = function () {
// save values in document
settings.doc.insertLabel(key, serializeNumbering(settings.numberings[0]));
};
}
// finished with dialog
w.close(1);
};
/**
* Returns a default numbering.
* @Returns {Object}
*/
function defaultNumbering() {
return {
findGrepPreferences: { findWhat: '\\b\\d+\\b', appliedParagraphStyle: 'X' },
preferHorizontal: false,
padWithZeros: 0,
onlyFirstNumberInParagraph: true,
};
};
/**
* Creates the UI for a numbering.
* @Param {SUI Group|SUI Window} container - the location of the new numbering group.
* @Param {Number} numIndex - the index to the numberings array.
* @Param {Object} numbering - the numbering object.
* @Returns {SUI Group?}
*/
function numberingUI(container, numIndex, numbering) {
var styleMenu,
targets = ['Character Style', 'Paragraph Style'],
suppressTriggers = false;
var group = container.add("group {orientation:'column', margins:[5,5,5,0] }"),
panel = group.add("panel {orientation:'row', alignChildren: ['left','center'], alignment:['fill','top'], margins: [5,5,5,0] }"),
column1 = panel.add("group {orientation:'column', alignment:['fill','top'], margins: [20,20,20,20] }"),
row1 = column1.add("group {orientation:'row', alignChildren: ['left','center'] alignment:['fill','top'] }"),
row2 = column1.add("group {orientation:'row', alignChildren: ['left','center'] alignment:['fill','top'] }"),
findWhatLabel = row1.add('statictext', undefined, 'Find Numbers Grep:'),
findWhatField = row1.add('edittext'),
inLabel = row1.add('statictext { text:" in ", alignment:["left","center"], preferredSize:[25,-1] }'),
targetMenu = row1.add('dropDownList { preferredSize:[120,-1] }'),
styleMenu = row1.add("Dropdownlist {alignment:['left','center']}"),
// checkboxes
onlyFirstNumberCheckbox = row2.add("CheckBox { text: 'Only First Number In Paragraph' }"),
// radio button
sortPreferenceGroup = row2.add('group {orientation:"row", alignment:["fill","center"], alignChildren:["left","center"], margins:[25,2,0,0] }'),
marginGroup = sortPreferenceGroup.add('group {orientation:"row", alignment:["center","center"], margins:[0,0,0,5]}'),
sortPreferenceLabel = marginGroup.add('statictext { text:"Sorting Preference", alignment:["left","center"] }'),
preferHorizontalRadio = sortPreferenceGroup.add('radiobutton {text:"Horizontal"}'),
preferVerticalRadio = sortPreferenceGroup.add('radiobutton {text:"Vertical"}'),
padWithZerosGroup = row2.add("group {orientation:'row', alignChildren: ['right','center'] alignment:['fill','center'], margins:[0,0,0,4] }"),
padWithZerosLabel = padWithZerosGroup.add('statictext', undefined, 'Pad With Zeros:'),
padWithZerosField = padWithZerosGroup.add('edittext {preferredSize: [30,-1]}');
group.index = numIndex;
// add targets
for (var i = 0; i < targets.length; i++)
targetMenu.add('item', targets[i]);
// set sizes
var labelWidth = 120,
fieldWidth = 200;
findWhatLabel.preferredSize.width = labelWidth;
findWhatField.preferredSize.width = fieldWidth;
targetMenu.preferredSize.width = labelWidth;
styleMenu.preferredSize.width = fieldWidth;
targetMenu.onChange = function (ev) { updateTarget(this.selection.index) };
group.update = updateNumberingUI;
group.getNumbering = getNumbering;
/**
* Returns a numbering object derived from the UI.
* @Returns {Object}
*/
function getNumbering() {
var numbering = {
findGrepPreferences: {
findWhat: findWhatField.text,
},
padWithZeros: Number(padWithZerosField.text),
preferHorizontal: true === preferHorizontalRadio.value,
onlyFirstNumberInParagraph: true == onlyFirstNumberCheckbox.value,
};
if (isNaN(numbering.padWithZeros))
numbering.padWithZeros = 0;
// add the applied style name
var findGrepKey = ['appliedCharacterStyle', 'appliedParagraphStyle'][targetMenu.selection.index];
numbering.findGrepPreferences[findGrepKey] = styleMenu.selection.text;
return numbering;
};
/**
* Update UI from `numbering` object.
*/
function updateNumberingUI() {
findWhatField.text = numbering.findGrepPreferences.findWhat;
preferHorizontalRadio.value = true === numbering.preferHorizontal;
preferVerticalRadio.value = true !== numbering.preferHorizontal;
padWithZerosField.text = String(numbering.padWithZeros || 0);
onlyFirstNumberCheckbox.value = false !== numbering.onlyFirstNumberInParagraph;
};
if (numbering.findGrepPreferences.appliedCharacterStyle)
updateTarget(0);
else
updateTarget(1);
/**
* Populates the target menu.
* @Param {0|1} targetType - character styles or paragraph styles.
*/
function updateTarget(targetType) {
if (suppressTriggers)
return;
else
suppressTriggers = true;
var things,
targetProp;
if (0 === targetType) {
// target: character styles
things = settings.doc.allCharacterStyles
targetProp = 'appliedCharacterStyle';
}
else {
// target: paragraph styles
things = settings.doc.allParagraphStyles
targetProp = 'appliedParagraphStyle';
}
var list = getThingsWithGetter(things, excludeBracketItems);
if (0 === list.length)
throw new Error('Could not find ' + targetProp + '.');
var value = numbering.findGrepPreferences[targetProp] || list[0];
// clear the existing menu
styleMenu.removeAll();
for (var i = 0; i < list.length; i++)
styleMenu.add('item', list[i]);
targetMenu.selection = targetType;
// set menu index
var menuIndex;
for (var i = 0; i < list.length; i++) if (value === list[i]) { menuIndex = i; break; };
styleMenu.selection = menuIndex || 0;
suppressTriggers = false;
};
// updateTarget();
group.update();
return group;
};
};
/**
* Returns source string from a stringified RegExp.
* eg, '/^Z.*$/gi' -> '^Z.*$'
* @Param {String/RegExp} obj - the object to parse.
* @Returns {?String}
*/
function regexSource(obj) {
var parts = String(obj).match(/^\/(.*)\/([gimsuy]*)$/) || {};
if (parts[1])
return parts[1];
}
/**
* Returns an array of things by applying `getter` function.
*
* Example getter:
* function (thing, index) {
* if (/^[/.test(thing.name))
* return thing;
* }
*
* @author m1b
* @version 2024-09-16
* @Param {Array|Collection} things - the things to look through.
* @Param {Function} getter - a function that returns a thing to get.
* @Returns {Array<*>} - the things found.
*/
function getThingsWithGetter(things, getter) {
var found = [];
for (var i = 0, thing; i < things.length; i++) {
thing = getter(things[i], i);
if (thing)
found.push(thing);
}
return found;
};
/**
* Filter to exclude item's whose name
* starts with square bracket, eg. '[None]'.
* @Param {*} thing - a thing with a `name`.
* @Returns {*?}
*/
function excludeBracketItems(thing) {
if (!/^\[/.test(thing.name))
return thing.name;
};
function serializeNumbering(numbering) {
var targetProperty = numbering.findGrepPreferences.appliedCharacterStyle ? 'appliedCharacterStyle' : 'appliedParagraphStyle',
targetType = numbering.findGrepPreferences.appliedCharacterStyle ? 0 : 1,
styleName = numbering.findGrepPreferences[targetProperty],
findWhat = numbering.findGrepPreferences.findWhat,
preferHorizontal = true === numbering.preferHorizontal ? 1 : 0,
padWithZeros = numbering.padWithZeros || 0,
onlyFirstNumber = true === numbering.onlyFirstNumberInParagraph ? 1 : 0;
return [
targetType,
styleName,
findWhat,
padWithZeros,
preferHorizontal,
onlyFirstNumber,
].join('###');
};
function reviveNumbering(serialized) {
var values = serialized.split('###'),
numbering = {
findGrepPreferences: {
findWhat: values[2],
},
padWithZeros: Number(values[3]),
preferHorizontal: '1' === values[4],
onlyFirstNumberInParagraph: '1' === values[5],
};
if (isNaN(numbering.padWithZeros))
numbering.padWithZeros = 0;
// add the applied style name
var findGrepKey = ['appliedCharacterStyle', 'appliedParagraphStyle'][Number(values[0])];
numbering.findGrepPreferences[findGrepKey] = values[1];
return numbering;
};
Resources
Learn and Support
Resources
Crash and Slow Performance
AdChoices
