How to toggle Printing/Non Printing for graphic objects

Participant ,
Nov 10, 2022 Nov 10, 2022

I need to toggle Rectangle Frames to non printing to send to a client so that their editor can review the text & flow. The project is too far along to transfer all of the images to another layer and then just turn off the layer.



I know I can do it individually for each item, however that can take hours everytime I need to send a copy to the client.



I've looked but have not found a script or utility that would "en mass" change the status of all Rectangle Frames   in a particular layer to non printing.



Looking forward to your suggestions.

TOPICS
EPUB , How to , Import and export , Performance , Print , Publish online , Scripting
1.3K
Translate
Report
Community guidelines
Be kind and respectful, give credit to the original source of content, and search for duplicates before posting. Learn more
community guidelines
Community Expert ,
Nov 10, 2022 Nov 10, 2022

Here you go. Setting nonprinting is as much/little effort as moving the rectangles to a particular layer.



 in a particular layer



In the script's text, replace xyz with the name of your layer.

r = app.documents[0].rectangles.everyItem().getElements();
for (i = r.length-1; i >= 0; i--) {
  if (r[i].itemLayer.name === 'xyz') {
    r[i].nonprinting = true;
  }
}





Translate
Report
Community guidelines
Be kind and respectful, give credit to the original source of content, and search for duplicates before posting. Learn more
community guidelines
Community Expert ,
Nov 10, 2022 Nov 10, 2022

Beat me to the punch, @Peter Kahrel! But perhaps some are anchored. allGraphics.parent might be more efficient than allPageItems though in my example (and accounts for graphics not in rectangles)

Translate
Report
Community guidelines
Be kind and respectful, give credit to the original source of content, and search for duplicates before posting. Learn more
community guidelines
Community Expert ,
Nov 10, 2022 Nov 10, 2022

But perhaps some are anchored

True. Hadn't thought of that.

Translate
Report
Community guidelines
Be kind and respectful, give credit to the original source of content, and search for duplicates before posting. Learn more
community guidelines
Community Expert ,
Nov 10, 2022 Nov 10, 2022





var layerName = "Layer X";
var apis = app.activeDocument.allPageItems;
var i = apis.length;
while(i--) {
    if (apis[i] instanceof Rectangle && apis[i].itemLayer.name == layerName) {
        apis[i].nonprinting = true; //change true to false to undo
    }
}





EDIT: Here's a refined version that would nonprint all graphic containers, not just rectangles.



var layerName = "Layer X";
var apis = app.activeDocument.allGraphics;
var i = apis.length;
var p;
while(i--) {
    p= apis[i].parent;
    if (p.itemLayer.name == layerName) {
        p.nonprinting = true; //change true to false to undo
    }
}





Translate
Report
Community guidelines
Be kind and respectful, give credit to the original source of content, and search for duplicates before posting. Learn more
community guidelines
Community Expert ,
Nov 10, 2022 Nov 10, 2022

There's a script here that can move all images to a new layer - not sure if it works for your needs

https://creativepro.com/topic/script-to-move-all-imagesgraphics-to-a-new-layer/

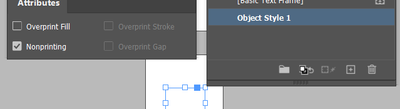

If it would be worth your while to create an Object Style

And select one of the images you want to set to non printing

And create a style for it

In the Attributes set it to non-printing and redefine the style




then you just have to turn off the non printing for 1 image and redefine the style to toggle it



Perhaps it can be scripted.

Translate
Report
Community guidelines
Be kind and respectful, give credit to the original source of content, and search for duplicates before posting. Learn more
community guidelines
Community Expert ,
Nov 10, 2022 Nov 10, 2022

Well, I went to take up the dinner and two scripts written while I was away .. ha ha great stuff.

Translate
Report
Community guidelines
Be kind and respectful, give credit to the original source of content, and search for duplicates before posting. Learn more
community guidelines
Community Expert ,
Nov 10, 2022 Nov 10, 2022

Aha -- Brian beat me to it. Two different approaches for you.



P.

Translate
Report
Community guidelines
Be kind and respectful, give credit to the original source of content, and search for duplicates before posting. Learn more
community guidelines
Participant ,
Nov 11, 2022 Nov 11, 2022
LATEST

Gentlemen, I thank you for the solutions and the effort. Your work really drives home the fact that I need to start my journey in the JavaScript world.
