InDesign Table Grid Lines Disappear when Exported to PDF

  • October 23, 2020
  • 3 replies
  • 3203 views

Hi,



I am currently using InDesign to create a document, and I have created a certain table in this document. This table has several rows and columns, and in some cells there are text and in other cells there are images directly inserted into the cell. My problem is that for no apparent reason some of the grid lines between the cells completely disappear or become invisible when I export to PDF. Furthermore, these specific lines become thinner when I zoom out in InDesign, but other lines do not. Does anyone have a solution to this?

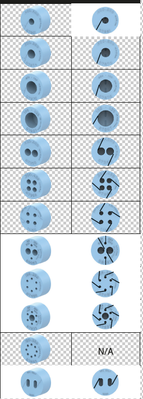

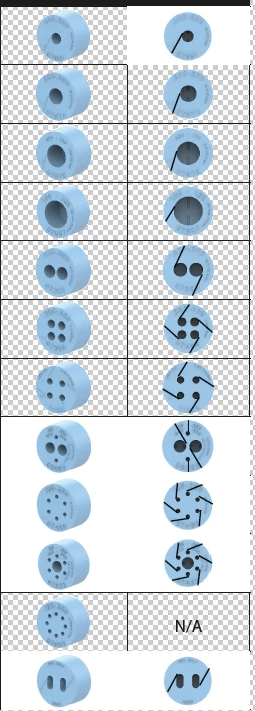

InDesign:

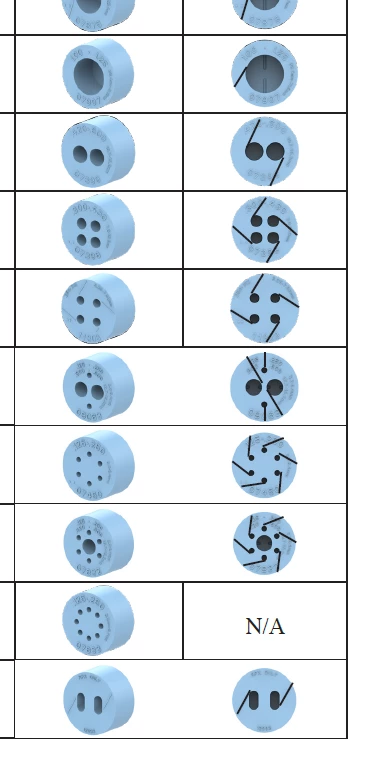

PDF:

Thanks.

This topic has been closed for replies.
Correct answer Eugene Tyson

Eugene, I sent you the link in a private message. I only included the relevant page of the document.


Thank you - and I take it that you don't want those files shared publicly so I will respect that and not share the file unless you specify this.



Just to note - there's nothing wrong with what you have done - it's an  onscreen viewing issue, when I zoom in and out on both InDesign and PDF the row strokes are intact, but clearly there's a viewing issue with the strokes.



On inspection - you can see the areas interacting with the stroke edges as these images do not have a transparent background, and interfere with the visibility of the stroke width of the table.










I'd be on the side of filing this as a BUG!

https://indesign.uservoice.com/forums/601180-adobe-indesign-bugs
