Spot - Pantone Color

  • February 19, 2018
  • 1 reply
  • 3617 views

Hi,

     I need to get spot pantone colors.  How can i get the pantone colors with that name and how to differenciate the below 2 ??

    Both are spot colors.  I need to get that PANTONE value (ie., 187). How can i differenciate and get those values with swatch names??



     Any specification is there to identify PANTONE colors??



This topic has been closed for replies.

1 reply

L
Community Expert
LaubenderCommunity Expert
Community Expert
February 19, 2018

You could hunt for the name "PANTONE".

There is nothing special in a spot color if one is done by the user or used from a repository.

Perhaps two things can be different, but this is outside of the scripting DOM and is only visible with IDML or IDMS:

User defined spot for PANTONE Yellow:

AlternateSpace="NoAlternateColor"

AlternateColorValue=""

PANTONE color from repository for PANTONE Yellow C:

AlternateSpace="LAB"

AlternateColorValue="89.01960784313725 -1 111"

So you could fill a rectangle with a color, export to IDMS and see if properties AlternateSpace and AlternateColorValue have a value other than "NoAlternateColor" or an empty string.

Regards,
Uwe

    S
    Sudha_KAuthor
    Inspiring
    February 19, 2018

    Hi,

         Thank you for your reply...

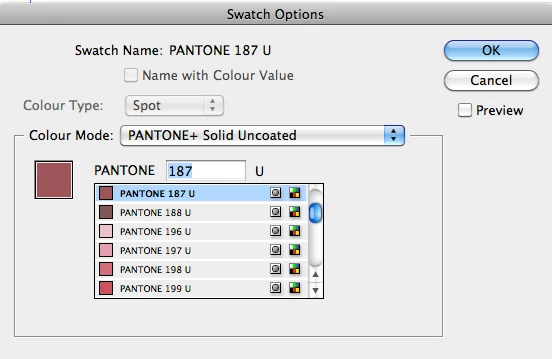

         I need to check indise application file.  How can i differenctiate pantone colors with others (sample my screenshots). Not using swatch name. Bcoz user can use pantone in name as a text.

    Also  I want to check built in blace (ie., [Black]). How to check [Black] built in swatch??

    L
    Community Expert
    LaubenderCommunity Expert
    Community Expert
    February 19, 2018

    Why do you think, that you are looking for text in the document?
    I thought you like to look after (perhaps) the name of a color?

    var colorArray = app.documents[0].colors.everyItem().getElements();
    // loop and perhaps check for name:
    for(var n=0;n<colorArray.length;n++)
    {
    $.writeln( colorArray.name );
    };

    See for other properties of colors here:

    Adobe InDesign CS6 (8.0) Object Model JS: Color

    Regards,
    Uwe
