Transparency without Flattening

  • October 24, 2017
  • 8 replies
  • 7582 views

Sorry for external reference links!!!!!

As mentioned in the below Adobe help page, When we choose the Adobe PDF 1.4 (Acrobat 5.0) or later version transparency will be retained in the PDF.

Flatten transparent artwork in Adobe InDesign

But now with I am in same situation as in below thread,

High resolution PDF still generates low resolution drop shadows?

My original question is,

My export preset looks like below, and the transparency flattener is disabled. But indesign produced the flattened transparency output with PDF version 1.7.

Can some one help me to understand whether it is a bug in Indesign cc 2017 or do I need to enable/disable anything else in preset/preferences to get the PDF without flattened transparency ?

    This topic has been closed for replies.

    8 replies

    manal shanableh
    manal shanableh
    Legend
    November 16, 2017

    Edit>Transparency Flattener Preset to open the transparency Flattener‭ Panel‭.‬

    Click New

    Specify the Options as the photo and Name it.

    When exporting to Adobe PDF‭ (‬Print‭)‬

    transparency flattener preset is disabled in the Advanced section‭, ‬to enable it choose from compatibility‭: ‬Acrobat 4‭ (‬PDF 1.3‭) ‬

    Now the preset is enabled‭, ‬choose the preset you defined and then you can change the compatibility again to Acrobat 8/9‭ (‬PDF 1.7‭) ‬.

    Make sure that you use Adobe PDF Preset PDF/X1a (2001 and 2003)  that flattens transparency using the High Resolution setting.

    rob day
    Community Expert
    rob dayCommunity Expert
    Community Expert
    November 16, 2017

    Make sure that you use Adobe PDF Preset PDF/X1a (2001 and 2003)  that flattens transparency using the High Resolution setting.

    The OP doesn't want to flatten. The issue is the resolution of Effects like drop shadows with or without flattening triggering Preflight rules

    T
    Test Screen Name
    Legend
    October 26, 2017

    An SMask is not something to ignore in any workflow, it's a translucent mask applied to another object or objects.

    T
    Test Screen Name
    Legend
    October 26, 2017

    That's interesting. I wonder if it's a bug.

    G
    G. Singelmann
    Inspiring
    October 26, 2017

    The thing I don't know: Does it have any relevance in an Adobe Printengine workflow?

    Probably not.

    But on older RIPs you may get bitten.

    rob day
    Community Expert
    rob dayCommunity Expert
    Community Expert
    October 27, 2017

    Gerald, something similar came up a while back and I thought the problem was limited to flattened exports, but it's actually worse with live transparency. In this case the resolution is changing, but not relative to the grayed out flattener preset.

    Re: drop shadow with low resolution

    T
    Test Screen Name
    Legend
    October 26, 2017

    Still, if the PDF is demonstrably still transparent and demonstrably still high quality, what other suggestion do you have? Or can you show it has poor quality? This is not about taking sides, it's about looking at the reality of the PDF.

    G
    G. Singelmann
    Inspiring
    October 26, 2017

    "demonstrably still high quality, what other suggestion do you have?"

    My suggestion is that Acrobat does not show the full picture.

    Try an experiment if you will...

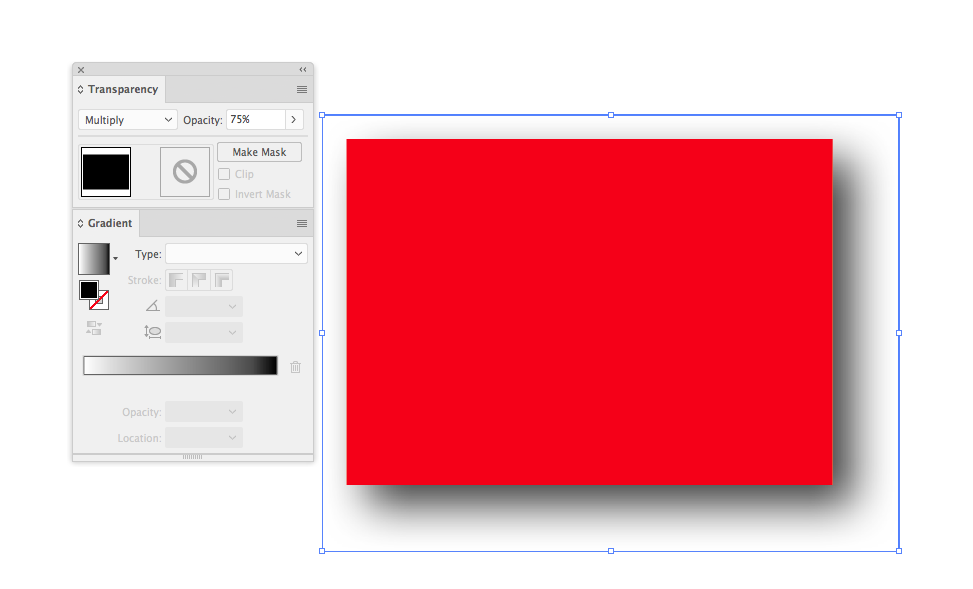

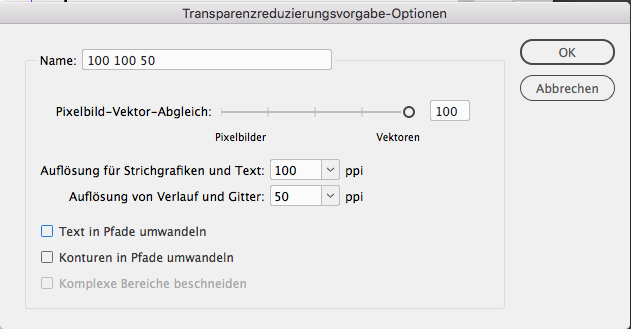

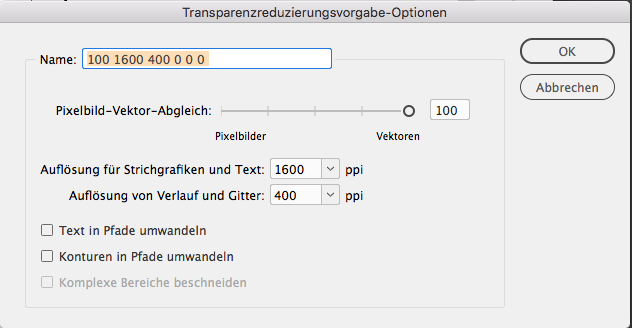

    create two flattener settings:

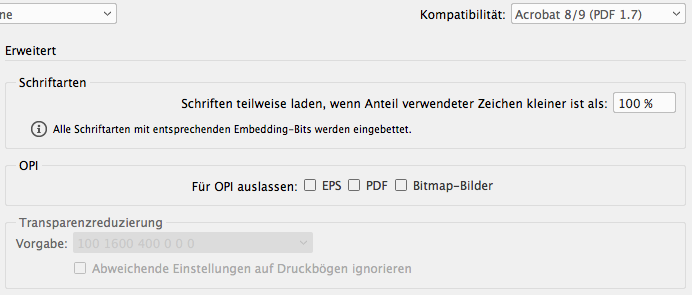

    Export the same document once with each setting greyed out:

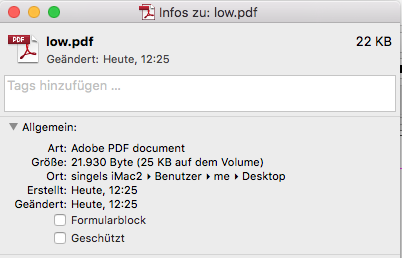

    Compare the file sizes of the resulting PDFs:

    Take a tool like pdfToolbox to look into the structure of the PDF:

    In other words: The PDF contains an image that defines the transparent areas of the rectangle that Acrobat shows.

    I do not know if the PDF contains additional data that a PDF-Engine can use, bypassing the image-smask.

    But at least some print-systems use the smask-image and some preflight systems check on the resolution of the smask-image.

    And the resolution of that smask-image is determined by the greyed-out flattener setting.

    rob day
    Community Expert
    rob dayCommunity Expert
    Community Expert
    October 26, 2017
    Try an experiment if you will...

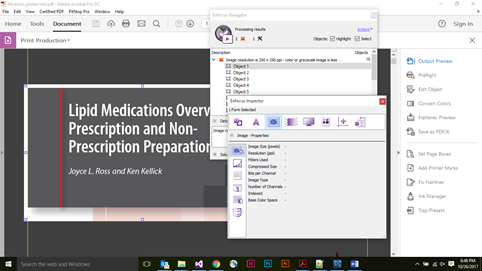

    To get your results you had to set Compatibility to Acrobat 4. The OP used Acrobat 8—see Document properties for the posted PDF

    T
    Test Screen Name
    Legend
    October 25, 2017

    Yes, I'm sure there is a real problem, and googling can often lead one the wrong way with false conclusions. If we can step back to the details of the problem, rather than the assumed cause, we may be better able to help the original poster,

    rob day
    Community Expert
    rob dayCommunity Expert
    Community Expert
    October 25, 2017

    If we can step back to the details of the problem, rather than the assumed cause,

    Just download the PDF linked in #2 and look at it in AcrobatPro.

      Jongware
      Community Expert
      JongwareCommunity Expert
      Community Expert
      October 26, 2017

      In other words, the PDF is correct. It's that particular printer which flattens the result. You cannot blame it for that either and/or "enable/disable" it, because there is no 'transparent toner'.

      J
      Community Expert
      Jeffrey_SmithCommunity Expert
      Community Expert
      October 25, 2017

      I suspect the OP may believe the drop shadows are flattened due to print results. The sample does involve spot colors and transparency, which can appear on certain desktop printers with the discolored area around transparent elements, resembling stitched flattened art.

        G
        G. Singelmann
        Inspiring
        October 25, 2017

        Yes, this happens.

        I forget when, but in certain circumstances the drop-shadow is nothing but a transparent pixel-image.

        The resolution of said image is determined by the greyed out setting.

        Thus the solution: temporarily switch to PDF1.3, change to a flattener setting with high resolution and change back to PDF1.4

        HTH

        Gerald

          rob day
          Community Expert
          rob dayCommunity Expert
          Community Expert
          October 25, 2017

          but in certain circumstances the drop-shadow is nothing but a transparent pixel-image.

          The OP posted a sample PDF and the drop shadows are not showing as image objects–there's no resolution associated with the shadows:

          They are showing as constant fill paths in AcrobatPro

          G
          G. Singelmann
          Inspiring
          October 26, 2017

          @rob,

          in the thread linked by prtamil it says:

          "But still, the magazine's print-technician always replies that the shadows in my document have a low resolution."

          You cannot argue "This does not happen" just by looking at a PDF in Acrobat.

          @prtamil,

          please try my suggestion and tell us if your problem goes away.

          J
          Community Expert
          Jeffrey_SmithCommunity Expert
          Community Expert
          October 24, 2017

          How have you determined the art is flattened with the above export setting? Can you share the PDF?

          prtamil
          prtamilAuthor
          Known Participant
          October 25, 2017

          Hi Jeffrey_Smith

          Actually the dropshadow and the transparency objects are from Indesign. I have attached sample file for your references.

          Dropbox - Sample.zip

          J
          Community Expert
          Jeffrey_SmithCommunity Expert
          Community Expert
          October 25, 2017

          Unless I am missing something, your sample PDF contains live transparency, and the art is not flattened.
