What is the alignment command for "make top of X touch bottom of Y"?

[MarieMeyer]

Imagine that I have two frames. It is easy in the "Align" panel to get them to relate to each other how I want. Except that I have not been able to find an easy way to get the top of one frame to touch or intersect the bottom of another. Does such a command exist?

[Katie Houghton · Accepted solution]

Sure.

1. Choose your objects
2. Make the end one the key object (click on it again and it will be bolder)
3. Open your Align from Window> Object & Layout> Align
4. Choose the Distribute Spaces and check on Use Spacing with a 0p0 value

That should do it!

I choose Distribute Vertical Spaces using the Spacing of 0p0

[Scott Falkner]

Select both (or more) objects. Click again on one object to make it the key object, meaning the object that won’t move — other object will move to align to that object.

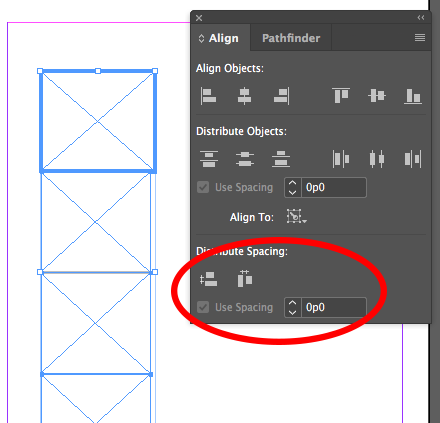

Open the Align panel (Window > Objects & Layout > Align). If necessary expand the panel so the Distribute Spacing section is visible. Enter a spacing value (default is zero) then click the Distribute Vertical Space button.

Before

After
