rtx 50 series cards and multi tasking

[Brummie_photo0037]

dear community,

i am a long time user of lightroom, since its enception and photoshop user. however i have been using a 3060ti with 0 issues for about two years, i have been able to export while applying settings to the next batch of images including ai with 0 issues, using a 14700k and nvidia studio drivers. i recently updated to a 5060 ti 16gb and there are several issues.

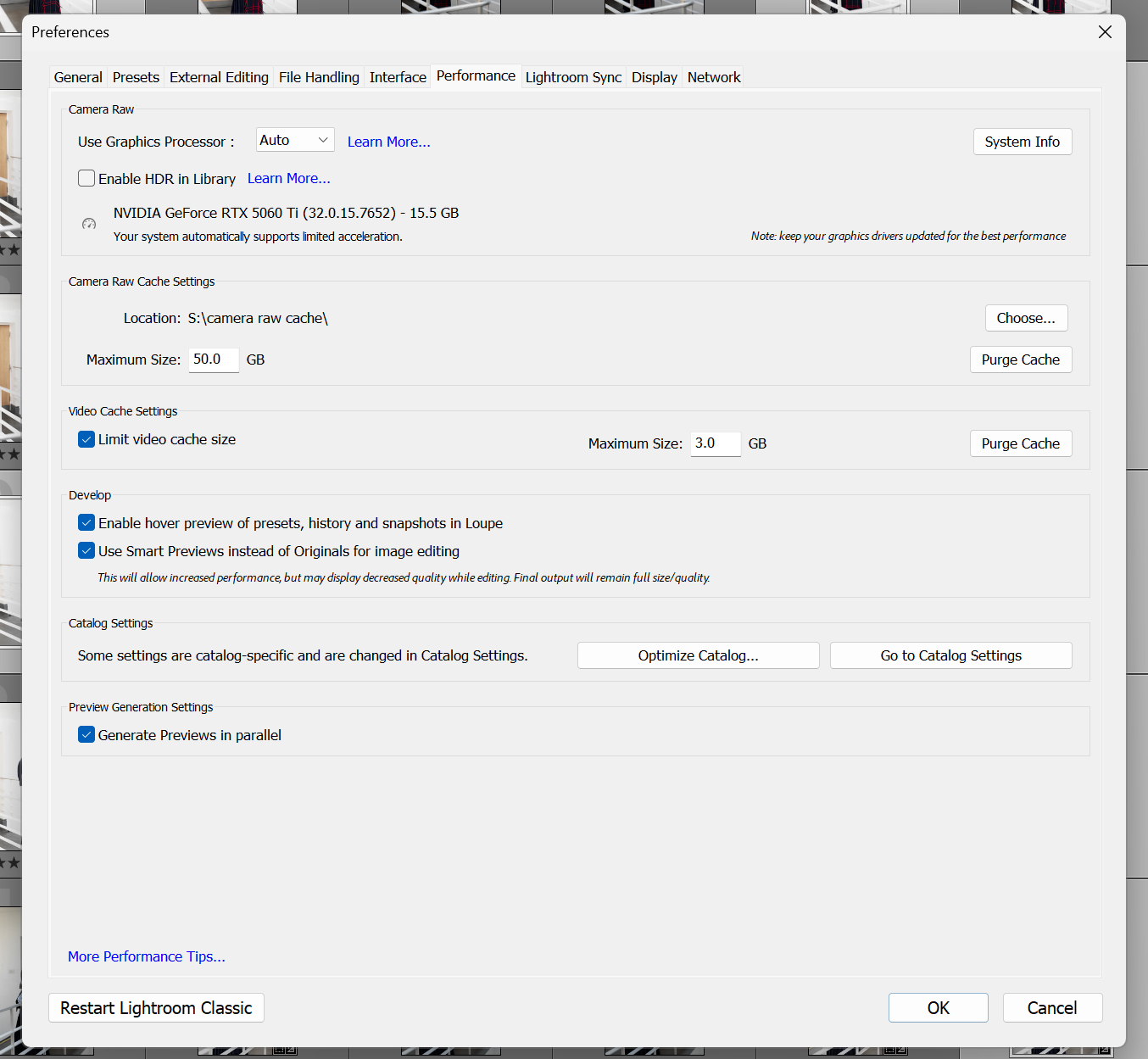

1 in prefs it says full acceleration is not recognised, i so i manually select it.

2 when exporting as above and trying to multi task, either the batch apply settings stops or and the export stops using the graphics card for exports as i have been doing previously.

ive tested the graphics card, with studio and game drivers in games and other tests zero issues but in lightroom classic, its very odd and wont do it in theory the card is 40% faster than the 3060ti but Im not getting that from use.

so question is either its an nvidia driver issue or adobe have not updated lightroom classic to fully utilise the 50 series in lightroom as yet. any ideas please hive mind as its very frustrating.

ive tried the above on an m1 max and m4 max 0 issues works as it always has 0 issues, swapping back to a 3060ti issue goes away, would a 5070 be better or not.

regards brummie

[KR Seals]

Is it possible that your computer has also enableb the GPU function of the 14700K? Lightroom Classic and Photoshop do not work well with two GPUs active

In my i7-14700K system, I'm using the Asus Dark Hero motherboard. That MB detects my RTX 3070ti and disables the on board GPU. I have seen some post in this forum that some MBs do not disable the on board video.

You can check in Windows Device manager to see if you have two GPUs running.

[johnrellis]

Building on @KR Seals suggestion, please do the LR menu command Help > System Info and copy/paste the entire contents here so we can see exactly which versions of hardware and software LR thinks you're running and important LR options that are set. (It will also show all the GPUs present on your computer.)

[Brummie_photo0037]

hi all heres my specs. i leave the igpu on generally as i do premiere edits from time to time and it uses the decoding on the 14700k for scrubbing better than the 3060ti.

Lightroom Classic version: 14.3.1 [ 202505061331-b063faef ]

License: Creative Cloud

Language setting: en

Operating system: Windows 11 - Business Edition

Version: 11.0.26100

Application architecture: x64

System architecture: x64

Logical processor count: 28

Processor speed: 3.4GHz

SqLite Version: 3.36.0

CPU Utilisation: 0.0%

Power Source: Plugged In

Built-in memory: 65244.6 MB

Dedicated GPU memory used by Lightroom: 426.6MB / 15962.0MB (2%)

Real memory available to Lightroom: 65244.6 MB

Real memory used by Lightroom: 1515.3 MB (2.3%)

Virtual memory used by Lightroom: 2307.6 MB

GDI objects count: 737

USER objects count: 2438

Process handles count: 2982

Memory cache size: 1359.2MB

Internal Camera Raw version: 17.3.1 [ 2227 ]

Maximum thread count used by Camera Raw: 5

Camera Raw SIMD optimization: SSE2,AVX,AVX2

Camera Raw virtual memory: 155MB / 32622MB (0%)

Camera Raw real memory: 159MB / 65244MB (0%)

Cache1:

NT- RAM:0.0MB, VRAM:0.0MB, Combined:0.0MB

Cache2:

m:1359.2MB, n:0.0MB

U-main: 92.0MB

System DPI setting: 144 DPI (high DPI mode)

Desktop composition enabled: Yes

Standard Preview Size: 2880 pixels

Displays: 1) 3840x2160, 2) 1920x1080

Input types: Multitouch: No, Integrated touch: No, Integrated pen: No, External touch: No, External pen: No, Keyboard: No

Graphics Processor Info:

DirectX: NVIDIA GeForce RTX 5060 Ti (32.0.15.7652)

Init State: GPU for Display supported by default with image processing and export supported in the custom mode

User Preference: GPU for Export enabled

Enable HDR in Library: OFF

Application folder: C:\Program Files\Adobe\Adobe Lightroom Classic

Library Path: O:\showcase_2025_main_week\showcase_2025_main_week.lrcat

Settings Folder: C:\Users\i_s_r\AppData\Roaming\Adobe\Lightroom

Installed Plugins:

1) AdobeStock

2) Calibrite Camera Calibration

3) Flickr

Config.lua flags:

Adapter #1: Vendor : 10de

Device : 2d04

Subsystem : 53511462

Revision : a1

Video Memory : 15962

Adapter #2: Vendor : 8086

Device : a780

Subsystem : 7e061462

Revision : 4

Video Memory : 80

Adapter #3: Vendor : 1414

Device : 8c

Subsystem : 0

Revision : 0

Video Memory : 0

AudioDeviceIOBlockSize: 1024

AudioDeviceName: System Default - Headphones (UC USB Headset)

AudioDeviceNumberOfChannels: 2

AudioDeviceSampleRate: 48000

Build: LR5x26

Direct2DEnabled: false

GL_ACCUM_ALPHA_BITS: 16

GL_ACCUM_BLUE_BITS: 16

GL_ACCUM_GREEN_BITS: 16

GL_ACCUM_RED_BITS: 16

GL_ALPHA_BITS: 0

GL_BLUE_BITS: 8

GL_DEPTH_BITS: 24

GL_GREEN_BITS: 8

GL_MAX_3D_TEXTURE_SIZE: 16384

GL_MAX_TEXTURE_SIZE: 32768

GL_MAX_TEXTURE_UNITS: 4

GL_MAX_VIEWPORT_DIMS: 32768,32768

GL_RED_BITS: 8

GL_RENDERER: NVIDIA GeForce RTX 5060 Ti/PCIe/SSE2

GL_SHADING_LANGUAGE_VERSION: 4.60 NVIDIA

GL_STENCIL_BITS: 8

GL_VENDOR: NVIDIA Corporation

GL_VERSION: 4.6.0 NVIDIA 576.52

GPUDeviceEnabled: false

OGLEnabled: true

GL_EXTENSIONS: GL_AMD_multi_draw_indirect GL_AMD_seamless_cubemap_per_texture GL_AMD_vertex_shader_viewport_index GL_AMD_vertex_shader_layer GL_ARB_arrays_of_arrays GL_ARB_base_instance GL_ARB_bindless_texture GL_ARB_blend_func_extended GL_ARB_buffer_storage GL_ARB_clear_buffer_object GL_ARB_clear_texture GL_ARB_clip_control GL_ARB_color_buffer_float GL_ARB_compatibility GL_ARB_compressed_texture_pixel_storage GL_ARB_conservative_depth GL_ARB_compute_shader GL_ARB_compute_variable_group_size GL_ARB_conditional_render_inverted GL_ARB_copy_buffer GL_ARB_copy_image GL_ARB_cull_distance GL_ARB_debug_output GL_ARB_depth_buffer_float GL_ARB_depth_clamp GL_ARB_depth_texture GL_ARB_derivative_control GL_ARB_direct_state_access GL_ARB_draw_buffers GL_ARB_draw_buffers_blend GL_ARB_draw_indirect GL_ARB_draw_elements_base_vertex GL_ARB_draw_instanced GL_ARB_enhanced_layouts GL_ARB_ES2_compatibility GL_ARB_ES3_compatibility GL_ARB_ES3_1_compatibility GL_ARB_ES3_2_compatibility GL_ARB_explicit_attrib_location GL_ARB_explicit_uniform_location GL_ARB_fragment_coord_conventions GL_ARB_fragment_layer_viewport GL_ARB_fragment_program GL_ARB_fragment_program_shadow GL_ARB_fragment_shader GL_ARB_fragment_shader_interlock GL_ARB_framebuffer_no_attachments GL_ARB_framebuffer_object GL_ARB_framebuffer_sRGB GL_ARB_geometry_shader4 GL_ARB_get_program_binary GL_ARB_get_texture_sub_image GL_ARB_gl_spirv GL_ARB_gpu_shader5 GL_ARB_gpu_shader_fp64 GL_ARB_gpu_shader_int64 GL_ARB_half_float_pixel GL_ARB_half_float_vertex GL_ARB_imaging GL_ARB_indirect_parameters GL_ARB_instanced_arrays GL_ARB_internalformat_query GL_ARB_internalformat_query2 GL_ARB_invalidate_subdata GL_ARB_map_buffer_alignment GL_ARB_map_buffer_range GL_ARB_multi_bind GL_ARB_multi_draw_indirect GL_ARB_multisample GL_ARB_multitexture GL_ARB_occlusion_query GL_ARB_occlusion_query2 GL_ARB_parallel_shader_compile GL_ARB_pipeline_statistics_query GL_ARB_pixel_buffer_object GL_ARB_point_parameters GL_ARB_point_sprite GL_ARB_polygon_offset_clamp GL_ARB_post_depth_coverage GL_ARB_program_interface_query GL_ARB_provoking_vertex GL_ARB_query_buffer_object GL_ARB_robust_buffer_access_behavior GL_ARB_robustness GL_ARB_sample_locations GL_ARB_sample_shading GL_ARB_sampler_objects GL_ARB_seamless_cube_map GL_ARB_seamless_cubemap_per_texture GL_ARB_separate_shader_objects GL_ARB_shader_atomic_counter_ops GL_ARB_shader_atomic_counters GL_ARB_shader_ballot GL_ARB_shader_bit_encoding GL_ARB_shader_clock GL_ARB_shader_draw_parameters GL_ARB_shader_group_vote GL_ARB_shader_image_load_store GL_ARB_shader_image_size GL_ARB_shader_objects GL_ARB_shader_precision GL_ARB_shader_storage_buffer_object GL_ARB_shader_subroutine GL_ARB_shader_texture_image_samples GL_ARB_shader_texture_lod GL_ARB_shading_language_100 GL_ARB_shader_viewport_layer_array GL_ARB_shading_language_420pack GL_ARB_shading_language_include GL_ARB_shading_language_packing GL_ARB_shadow GL_ARB_sparse_buffer GL_ARB_sparse_texture GL_ARB_sparse_texture2 GL_ARB_sparse_texture_clamp GL_ARB_spirv_extensions GL_ARB_stencil_texturing GL_ARB_sync GL_ARB_tessellation_shader GL_ARB_texture_barrier GL_ARB_texture_border_clamp GL_ARB_texture_buffer_object GL_ARB_texture_buffer_object_rgb32 GL_ARB_texture_buffer_range GL_ARB_texture_compression GL_ARB_texture_compression_bptc GL_ARB_texture_compression_rgtc GL_ARB_texture_cube_map GL_ARB_texture_cube_map_array GL_ARB_texture_env_add GL_ARB_texture_env_combine GL_ARB_texture_env_crossbar GL_ARB_texture_env_dot3 GL_ARB_texture_filter_anisotropic GL_ARB_texture_filter_minmax GL_ARB_texture_float GL_ARB_texture_gather GL_ARB_texture_mirror_clamp_to_edge GL_ARB_texture_mirrored_repeat GL_ARB_texture_multisample GL_ARB_texture_non_power_of_two GL_ARB_texture_query_levels GL_ARB_texture_query_lod GL_ARB_texture_rectangle GL_ARB_texture_rg GL_ARB_texture_rgb10_a2ui GL_ARB_texture_stencil8 GL_ARB_texture_storage GL_ARB_texture_storage_multisample GL_ARB_texture_swizzle GL_ARB_texture_view GL_ARB_timer_query GL_ARB_transform_feedback2 GL_ARB_transform_feedback3 GL_ARB_transform_feedback_instanced GL_ARB_transform_feedback_overflow_query GL_ARB_transpose_matrix GL_ARB_uniform_buffer_object GL_ARB_vertex_array_bgra GL_ARB_vertex_array_object GL_ARB_vertex_attrib_64bit GL_ARB_vertex_attrib_binding GL_ARB_vertex_buffer_object GL_ARB_vertex_program GL_ARB_vertex_shader GL_ARB_vertex_type_10f_11f_11f_rev GL_ARB_vertex_type_2_10_10_10_rev GL_ARB_viewport_array GL_ARB_window_pos GL_ATI_draw_buffers GL_ATI_texture_float GL_ATI_texture_mirror_once GL_S3_s3tc GL_EXT_texture_env_add GL_EXT_abgr GL_EXT_bgra GL_EXT_bindable_uniform GL_EXT_blend_color GL_EXT_blend_equation_separate GL_EXT_blend_func_separate GL_EXT_blend_minmax GL_EXT_blend_subtract GL_EXT_compiled_vertex_array GL_EXT_Cg_shader GL_EXT_depth_bounds_test GL_EXT_direct_state_access GL_EXT_draw_buffers2 GL_EXT_draw_instanced GL_EXT_draw_range_elements GL_EXT_fog_coord GL_EXT_framebuffer_blit GL_EXT_framebuffer_multisample GL_EXTX_framebuffer_mixed_formats GL_EXT_framebuffer_multisample_blit_scaled GL_EXT_framebuffer_object GL_EXT_framebuffer_sRGB GL_EXT_geometry_shader4 GL_EXT_gpu_program_parameters GL_EXT_gpu_shader4 GL_EXT_multi_draw_arrays GL_EXT_multiview_texture_multisample GL_EXT_multiview_timer_query GL_EXT_packed_depth_stencil GL_EXT_packed_float GL_EXT_packed_pixels GL_EXT_pixel_buffer_object GL_EXT_point_parameters GL_EXT_polygon_offset_clamp GL_EXT_post_depth_coverage GL_EXT_provoking_vertex GL_EXT_raster_multisample GL_EXT_rescale_normal GL_EXT_secondary_color GL_EXT_separate_shader_objects GL_EXT_separate_specular_color GL_EXT_shader_image_load_formatted GL_EXT_shader_image_load_store GL_EXT_shader_integer_mix GL_EXT_shadow_funcs GL_EXT_sparse_texture2 GL_EXT_stencil_two_side GL_EXT_stencil_wrap GL_EXT_texture3D GL_EXT_texture_array GL_EXT_texture_buffer_object GL_EXT_texture_compression_dxt1 GL_EXT_texture_compression_latc GL_EXT_texture_compression_rgtc GL_EXT_texture_compression_s3tc GL_EXT_texture_cube_map GL_EXT_texture_edge_clamp GL_EXT_texture_env_combine GL_EXT_texture_env_dot3 GL_EXT_texture_filter_anisotropic GL_EXT_texture_filter_minmax GL_EXT_texture_integer GL_EXT_texture_lod GL_EXT_texture_lod_bias GL_EXT_texture_mirror_clamp GL_EXT_texture_object GL_EXT_texture_shadow_lod GL_EXT_texture_shared_exponent GL_EXT_texture_sRGB GL_EXT_texture_sRGB_R8 GL_EXT_texture_sRGB_decode GL_EXT_texture_storage GL_EXT_texture_swizzle GL_EXT_timer_query GL_EXT_transform_feedback2 GL_EXT_vertex_array GL_EXT_vertex_array_bgra GL_EXT_vertex_attrib_64bit GL_EXT_window_rectangles GL_EXT_import_sync_object GL_IBM_rasterpos_clip GL_IBM_texture_mirrored_repeat GL_KHR_context_flush_control GL_KHR_debug GL_EXT_memory_object GL_EXT_memory_object_win32 GL_NV_memory_object_sparse GL_EXT_win32_keyed_mutex GL_KHR_parallel_shader_compile GL_KHR_no_error GL_KHR_robust_buffer_access_behavior GL_KHR_robustness GL_EXT_semaphore GL_EXT_semaphore_win32 GL_NV_timeline_semaphore GL_KHR_shader_subgroup GL_KTX_buffer_region GL_NV_alpha_to_coverage_dither_control GL_NV_bindless_multi_draw_indirect GL_NV_bindless_multi_draw_indirect_count GL_NV_bindless_texture GL_NV_blend_equation_advanced GL_NV_blend_equation_advanced_coherent GL_NVX_blend_equation_advanced_multi_draw_buffers GL_NV_blend_minmax_factor GL_NV_blend_square GL_NV_clip_space_w_scaling GL_NV_command_list GL_NV_compute_program5 GL_NV_compute_shader_derivatives GL_NV_conditional_render GL_NV_conservative_raster GL_NV_conservative_raster_dilate GL_NV_conservative_raster_pre_snap GL_NV_conservative_raster_pre_snap_triangles GL_NV_conservative_raster_underestimation GL_NV_copy_depth_to_color GL_NV_copy_image GL_NV_depth_buffer_float GL_NV_depth_clamp GL_NV_draw_texture GL_NV_draw_vulkan_image GL_NV_ES1_1_compatibility GL_NV_ES3_1_compatibility GL_NV_explicit_multisample GL_NV_feature_query GL_NV_fence GL_NV_fill_rectangle GL_NV_float_buffer GL_NV_fog_distance GL_NV_fragment_coverage_to_color GL_NV_fragment_program GL_NV_fragment_program_option GL_NV_fragment_program2 GL_NV_fragment_shader_barycentric GL_NV_fragment_shader_interlock GL_NV_framebuffer_mixed_samples GL_NV_framebuffer_multisample_coverage GL_NV_geometry_shader4 GL_NV_geometry_shader_passthrough GL_NV_gpu_program4 GL_NV_internalformat_sample_query GL_NV_gpu_program4_1 GL_NV_gpu_program5 GL_NV_gpu_program5_mem_extended GL_NV_gpu_program_fp64 GL_NV_gpu_program_multiview GL_NV_gpu_shader5 GL_NV_half_float GL_NV_light_max_exponent GL_NV_memory_attachment GL_NV_mesh_shader GL_NV_multisample_coverage GL_NV_multisample_filter_hint GL_NV_occlusion_query GL_NV_packed_depth_stencil GL_NV_parameter_buffer_object GL_NV_parameter_buffer_object2 GL_NV_path_rendering GL_NV_path_rendering_shared_edge GL_NV_pixel_data_range GL_NV_point_sprite GL_NV_primitive_restart GL_NV_primitive_shading_rate GL_NV_query_resource GL_NV_query_resource_tag GL_NV_register_combiners GL_NV_register_combiners2 GL_NV_representative_fragment_test GL_NV_sample_locations GL_NV_sample_mask_override_coverage GL_NV_scissor_exclusive GL_NV_shader_atomic_counters GL_NV_shader_atomic_float GL_NV_shader_atomic_float64 GL_NV_shader_atomic_fp16_vector GL_NV_shader_atomic_int64 GL_NV_shader_buffer_load GL_NV_shader_storage_buffer_object GL_NV_shader_subgroup_partitioned GL_NV_shader_texture_footprint GL_NV_shading_rate_image GL_NV_stereo_view_rendering GL_NV_texgen_reflection GL_NV_texture_barrier GL_NV_texture_compression_vtc GL_NV_texture_dirty_tile_map GL_NV_texture_env_combine4 GL_NV_texture_multisample GL_NV_texture_rectangle GL_NV_texture_rectangle_compressed GL_NV_texture_shader GL_NV_texture_shader2 GL_NV_texture_shader3 GL_NV_transform_feedback GL_NV_transform_feedback2 GL_NV_uniform_buffer_unified_memory GL_NV_uniform_buffer_std430_layout GL_NV_vertex_array_range GL_NV_vertex_array_range2 GL_NV_vertex_attrib_integer_64bit GL_NV_vertex_buffer_unified_memory GL_NV_vertex_program GL_NV_vertex_program1_1 GL_NV_vertex_program2 GL_NV_vertex_program2_option GL_NV_vertex_program3 GL_NV_viewport_array2 GL_NV_viewport_swizzle GL_NVX_conditional_render GL_NVX_linked_gpu_multicast GL_NV_gpu_multicast GL_NVX_gpu_multicast2 GL_NVX_progress_fence GL_NVX_gpu_memory_info GL_NVX_multigpu_info GL_NVX_nvenc_interop GL_NV_shader_thread_group GL_NV_shader_thread_shuffle GL_KHR_blend_equation_advanced GL_KHR_blend_equation_advanced_coherent GL_OVR_multiview GL_OVR_multiview2 GL_SGIS_generate_mipmap GL_SGIS_texture_lod GL_SGIX_depth_texture GL_SGIX_shadow GL_SUN_slice_accum GL_WIN_swap_hint WGL_EXT_swap_control

cheers

[johnrellis]

@Brummie_photo0037: "i leave the igpu on generally"

"Adapter #2: Vendor : 8086"

As KR_Seals alluded, Adobe recommends disabling the integrated GPU, as described in step 5:

https://helpx.adobe.com/lightroom-classic/kb/troubleshoot-gpu.html#solution-4

After disabling the integrated GPU, force LR to re-evaluate the GPU's capabilities by deleting the "Camera Raw GPU Config.txt" file, as described in steps 2-5:

https://helpx.adobe.com/lightroom-classic/kb/troubleshoot-gpu.html#solution-3

Note carefully that there different instances of the file for LR Classic and Camera Raw.

After deleting the Config.txt file, is GPU For Export now automatically enabled?

[Brummie_photo0037]

hi all ok done that, seems to make no difference, tried with gaming and studio drivers. there was never any workload going on the igpu anyway. ive tried mutli tasking again. seems to be marginally better but then gives up the ghost and only hanldes one workload at a time. very odd never used to do that wont recognise gpu for auto full acelleration either.  anyone using a 5070 with 0 issues. its all rather odd. regards brummie pics attached. you can see the gpu just seems to go to sleep. before it would still be at 65 % load plus in fact it started off that way then just goes to sleep. workload would be shared whether the igpu is on or off ive tried it both ways, doesnt seem to make any difference, never did before.

[Brummie_photo0037]

ok ive done some more testing igpu on and igpu off makes no diference it reacts the same way,  it starts the export, gpu load to about 60% when i paste settings to a bunch of other files, the export stops,  does the other job then goes back to exporting, my 3060ti never did this handled both at the same time 0 slow downs. could it be this card is doing this as its 8 lanes vs a 16 lane card, and with only 128 bit bus vs 256 bit bus on the 3060ti, or is an nvidia or and adobe bug or both. brummie

[johnrellis]

Odd indeed. I found just two other posts about LR performance issues with the RTX 5070 or 5080 -- they may or may not be relevant:

https://community.adobe.com/t5/lightroom-classic-discussions/lightroom-classic-extremely-slow-on-new...

https://community.adobe.com/t5/lightroom-classic-discussions/image-remains-blurry-when-zooming-into-...

[Brummie_photo0037]

ive given up im sending the card back it just doesnty work just keeps stalling and needs a full restart to work again then stalls again, ive done sfc scannow etc theres nothing wrong with windows etc ive tried all the above, ive gone back to my 3060ti 0 issues. but have taken on board the above and disabled my igpu, which seems a positive move. ive got 60k images to get through i havent got the time to mess around im afraid, thanks all for replying regards brummie

[Brummie_photo0037]

i sent it back and then this popped up https://nvidia.custhelp.com/app/answers/detail/a_id/5665/~/nvidia-gpu-uefi-firmware-update-tool-for-... either i am unlucky with the version i had or as i thought they brought the shrunk die out too quickly. i cant find any major similar issues with the 5070 so will see when i get my refund and decide then or stick for a while and watch and see what updates come out. regards brummie

[Brummie_photo0037]

seems there are other issues with the 5060 series as it uses 8 lanes vs 16 lanes on pci express.

came across this i did not look for it when i had the card but i suspect it could be an issue.

https://www.hwcooling.net/en/gigabyte-fixes-pcie-lanes-issue-on-boards-with-geforce-rtx-50/

https://www.hwcooling.net/en/geforce-rtx-5060-ti-pcie-lanes-problem-do-you-have-this-issue/

seems like there are cards that have a shorter pci connection that may well fix the issue as well.

https://www.youtube.com/watch?v=Frz50kYnOA8

interesting. so im avoiding until 5070 prices drop.

[Brummie_photo0037]

wow these 50 series are very bad ended up with a 5070, what can i say same issues, crashing, on exports etc, did same workflow on 3060ti 0 issues. did latest driver dropped pcie to 4, used dism, sfc scannow etc, even tried a mates amd card to check the port, 0 issues, so i dont think its a adobe issue the ball is firmly in nvidias court, dreadful, avoid.

[Brummie_photo0037 · Accepted solution]

ok so now updated to a 5070 and works fine now but had to do a clean install of windows i just kept getting 117 errors which is a gpu driver issue or power issue which is solved by new psu. however, i find that if a i have done a large ai edit with masks in and updated the ai edits, and go to export it just goes limp and doesnt send the data to gpu to export. i have to restart lightroom and it works fine, its very odd and obvioulsy either a lr and or nvidia issue. im talking like 1700 images where i have same lighting in it and apply, i then check, then add a preset with ai masks ive made for people and then check all the masks with an update it jus then does not export i need to restart lightroom before making the exports. odd,
