How can I get a checkbox checked state in an event handler?

[CedricCicada]

I am working on a script to add a frame to my photographs.  The UI can be seen here.  The checkbox to use hexadecimal values for colors is checked, but when I click the "White" button, decimal numbers are used.

Here is the code initializing the check box:

this.TextColorHex = this.TextColorGroup.add("checkbox", undefined, undefined, {name: "TextColorHex"});
    this.TextColorHex.text = "Hex";
    this.TextColorHex.checked = false;
    alert ("TextColorHex status initialized to " + this.TextColorHex.checked);

I have the dialog box containing this checkbox wrapped into a class, hence the use of "this".  I had to explicitly initialize the checked property to "false" because the alert was telling me it was undefined, which surprised me.  I expected it to be false by default.

The White button is initialized like this:

this.WhiteButton = this.group2.add("button", undefined, undefined, {name: "WhiteButton"});
    this.WhiteButton.text = "White";
    this.WhiteButton.tag = this;
    this.WhiteButton.addEventListener("click", this.OnWhiteClick)

Putting the dialog object into the button's tag property makes it available in the event handler, which looks like this:

FrameDialog.prototype.OnWhiteClick = function(e)
{
    alert ("Hex checkbox status: " + e.target.tag.TextColorHex.checked);
    if (e.target.tag.TextColorHex.checked)
    {
        e.target.tag.TextColorR.text = "ff";
        e.target.tag.TextColorG.text = "ff";
        e.target.tag.TextColorB.text = "ff";
    }
    else
    {
        e.target.tag.TextColorR.text = "255";
        e.target.tag.TextColorG.text = "255";
        e.target.tag.TextColorB.text = "255";
    }
}

But when I click the checkbox to use hex and then click the White button, the alert tells me that the checkbox's check state is False!  Why isn't this reporting the true state of the checkbox?

And I found another oddity:  when I initialized the checkbox to true, the checkbox did not show a check mark, but the alert just after creating the checkbox reports that the checked state is true!

What is going on with the checkbox?  How can I reliably use its state?

[r-bin]

Somehow you are all complex programming. Read, better, the documentation.

[CedricCicada]

Thank you.  Of course, that was the problem.

The problem with reading the documentation is that I don't have it.  I presume that that was from the ExtendScript Tool Kit documentation.  I have not been able to find where to download it.  The only download links I've found are broken.  If you can point me to where I can download it, I'd be forever grateful.

[r-bin]

And where did you get the information on how to write code for the interface in general?

Try to look here: How to download Extendscript toolkit for 2020

[JJMack]

I do not know ScriptUI  I just copy paste parts of dialog I fine in script Adobe installed with Photoshop or

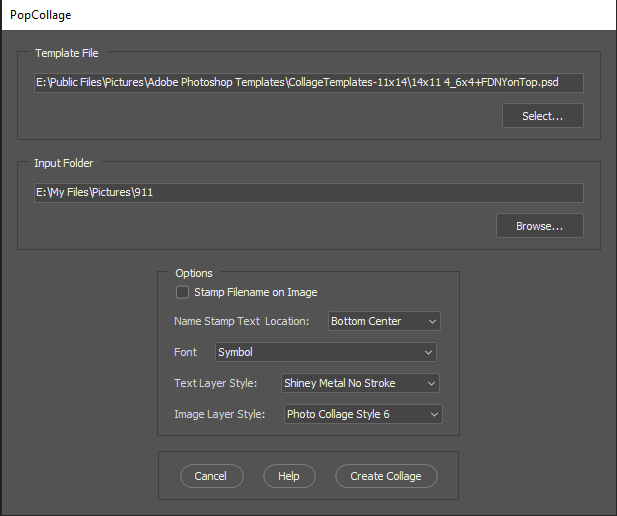

ones I have downloaded from the web many from appends made here  that work one my machine. Here is a dialogs from my collage populating script. It Has one checkbox I include the Scriptui  Dialog statement to add the checkbox and the code the uses the checkbox. I did not have to initialize the checkbox I just declared its variable .st and checked it

	dlg.msgPnl.StampImage = dlg.msgPnl.add('group');
	dlg.msgPnl.StampImage.orientation = "row";
	dlg.msgPnl.StampImage.alignment='left';
	dlg.msgPnl.StampImage.st = dlg.msgPnl.StampImage.add('checkbox', undefined, 'Stamp Filename on Image');
	dlg.msgPnl.StampImage.helpTip = "Stamp Filename on Image.";

	// Add Filename Text if called for
	if ( PopCollage.msgPnl.StampImage.st.value) {
		stampFilename(textFont,textSizeFactor,textColor,Name);

		loadAlpha("Image " + imageNumber);

		//var Position = 5;
		var Position = Number(PopCollage.msgPnl.grp5a.dd1.selection.index) + 1;
		switch (Position){
			case 1 : align('AdLf'); align('AdTp'); break;
			case 2 : align('AdCH'); align('AdTp'); break;
			case 3 : align('AdRg'); align('AdTp'); break;
			case 4 : align('AdLf'); align('AdCV'); break;
			case 5 : align('AdCH'); align('AdCV'); activeDocument.selection.deselect(); activeDocument.activeLayer.rotate(textAngle); break;
			case 6 : align('AdRg'); align('AdCV'); break;
			case 7 : align('AdLf'); align('AdBt'); break;
			case 8 : align('AdCH'); align('AdBt'); break;
			case 9 : align('AdRg'); align('AdBt'); break;
			default : break;
		}

		activeDocument.selection.deselect();
		// Add text Layer's layer style
		addStyle(textStyle);

		// could add code to do something with the image prefix info if it exists in prefixlist
		if ( prefixlist[imageNumber -1] != undefined ) {}
  	}
