Export issue: Trying to retain lossless quality while keeping same raw filesize (Is it possible?)

Forum|Forum|4 years ago
August 13, 2021
5 replies
4329 views

Hello, my name is DJ and I've ran into an issue that many people face when it comes to exporting videos. The problem at hand is attempting to retain lossless quality while not bloating my filesizes to the moon. Is that even possible? Like keeping it around the same filesize as the original file?

I've been wanting to chop up my raw video files that I've recorded to be reused in future Youtube videos, but most exports seem slightly blurry when you compare them to raw footage. It's like I lost data and a lot of sharpness. I've attempted a few different codecs like Quicktime + ProRes422/ProRes4444 and those bloated my test file towards 4-5GB's compared to the raw 359MB file.

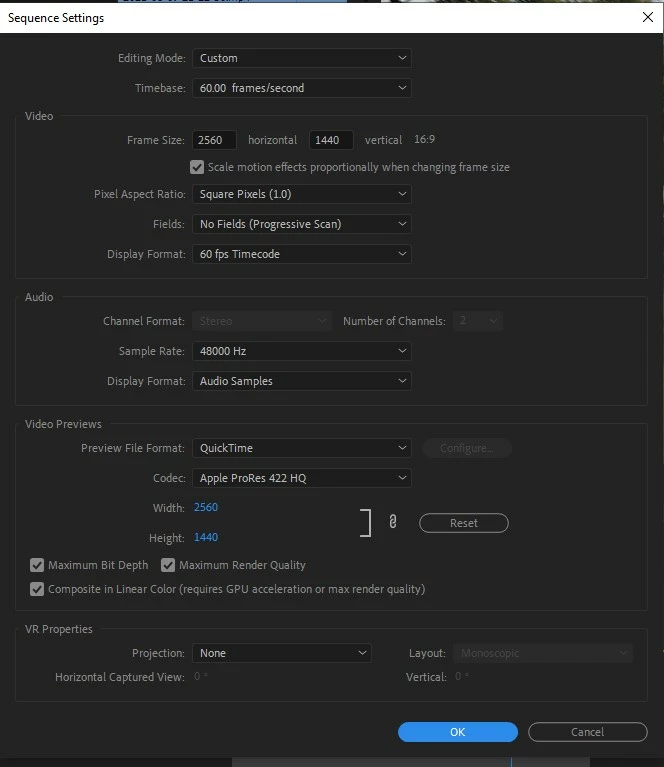

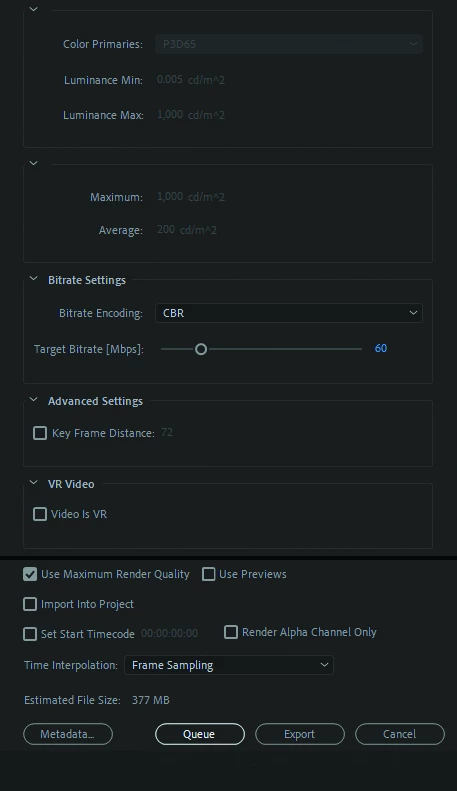

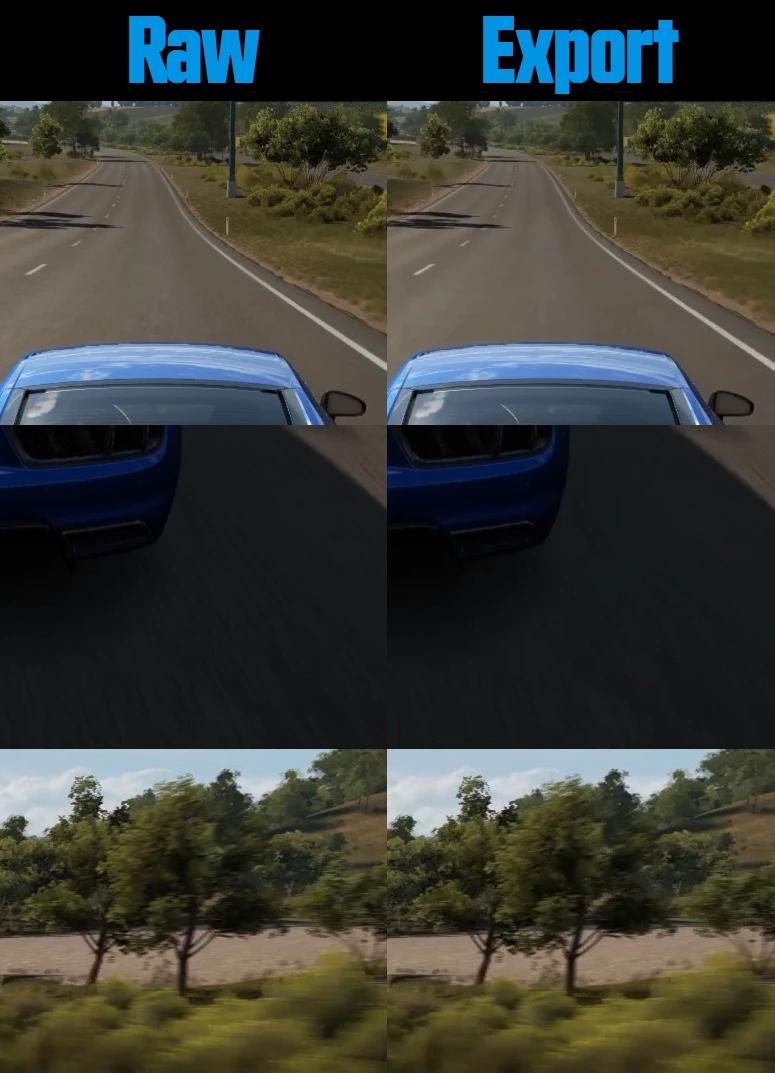

At this moment, I keep going back to H.264 because so many Youtubers use this for rendering video game footage and there's got to be a better way. I've attached the current export setup that I'm using and you'll notice certain areas was lost in the export as well. The most noticeable areas are around the pavement, either in front of the vehicle or shadows near the rear bumper. I want to keep that data on the road as much as possible please.

.

I'll add some PC specs just in case
Nvidia RTX 3090 FE
AMD Ryzen 3950X
Corsair Vengeance LPX 64GB
Windows 10 Home

.

Also adding the test footage so you can download and try for yourself until some conclusion is made. The test footage in question is 359MB for a 50 second video (mp4) recorded at 60,000kbps in 1440p.

Raw file from Google Drive:
https://drive.google.com/file/d/1bgGYybwvGUYRLetZIUoiWWA9NLl3u-sU/view?usp=sharing

.

Export

This topic has been closed for replies.

D

DJKustomsAuthor

Participant

Sorry it took so long on replying back and had a feeling someone would point out that I used the term raw instead of source.. Although, at the end of the day that still doesn't help the question at hand.

@Mike Dziennik - Shutter Encoder seems like a good alternative when it comes to cutting footage outside of Adobe, only downside I edit/export modified audio within the footage as well, it wouldn't be a straight cut from the original file in most cases.

@Averdahl - There is something I should mention. Everything I've showed in those screenshots isn't the normal settings I use to render my usual videos, most options that are checked or selected are there to see if anyone mentions anything different. I run Maximum Bit/Render quailty off, Software encode and Key Frame Distance to 30 already.

I've attempted almost everything you've mentioned inside Adobe software before making this thread like Maximum Bit Depth/Render Quailty, Hardware vs Software encoding, Key Frame Distances and every codec Adobe gives you straight out of their software. It's been a multiple year guessing game when I think about exporting full length videos or small video clips.

I was wondering when someone would mention any sort of plugin to enhance exports. I've heard of TMPG but never tried the trial version until now and notice a great improvement over normal H.264. I've heard about the original H.264 isn't great to begin with and plugins can pull better quailty in most cases.

Now the question is what settings can increase it further if I kept using the TMPG plugin? The quailty between source and TMPG export is great while keeping around same filesize.

Averdahl

Community Expert

Now the question is what settings can increase it further if I kept using the TMPG plugin? The quailty between source and TMPG export is great while keeping around same filesize.

By @DJKustoms

In the TMPGenc plug-in you have literally tons of options and by chossing the Standard (High-bitrate) preset and then clicking the Advanced button will open the gates to the rabbit hole and will give you free hands to change everything, so be prepared to read the manual and do some Googling what all the parameters can and will do.

The question i ask is: What do you want to increase further?

Averdahl

Community Expert

Just curious if there's any Advanced options you've found that helps improve your own way of exporting within the plugin. I'll be purchasing the TMPGEnc encoder after the trial is up in a few days and I want to say thank you for mentioning to try it out. Wished I've done it sooner.

Just curious if there's any Advanced options you've found that helps improve your own way of exporting within the plugin.

By @DJKustoms

I never fiddle with those settings because i am satisfied with the default settings and because there are so many settings and if one don´t know what they do the risk of making the export bad are higher. I have never learned all those parameters.

To use those settings one must know what they do and when to use them and when not to use them. There are tons of information on the internet of what all different settings do.

Averdahl

Community Expert

I would skip Maximum Bit Depth and Maximum Render Quality and switch the Hardware Encoding to Software Encoding and lastly under Advanced Settings change the Key Frame Distance from 72 to 60 or even 30.

Maximum Bit Depth and Maximum Render Quality do not create the best quality in all situations.
Hardware Encoding do always look worse than Software Encoding.
Key Frame Distance at a lower value creates more I-frames = Better quality.

ProRes 4444 is really overkill for your needs, go for ProRes LT. The file will be less large but can be uploaded directly to YouTube and that will give you great results but longer upload times. But yes, larger files and it demands a fast internet connection.

Or, get a better encoder such as TMPGEnc Movie Plug-in AVC for Premiere Pro that will give you x.264. There is a free 14-day trial with no watermarks available: TMPGEnc Movie Plug-in AVC for Premiere Pro. This plug-in will let you export directly from the timeline the way you do today.

I personally use TMPGEnc Movie Plug-in AVC for Premiere Pro for all my encodes to .mp4/Blu-ray, etc.

Ann Bens

Community Expert

Might want to read this;

The Ultimate Guide to Premiere Pro's Render Quality Settings

Averdahl

Community Expert

I have already read it but it is still an issue with those settings in some cases that has been proven many times here.

- My renders look bad - help!

- Un-check Maximum Bit Depth/Maximum Render Quality

- Yes, that solved the issue

Sometimes it does not solve the issue to uncheck Maximum Bit Depth and/or Maximum Render Quality but most of the times it does.

I have never seen a post like this been solved by checking those boxes, yet, unless the source footage was 10-bit or higher or some scaling on the output were done.

Mike Dziennik

Community Expert

And yes, as @Ann Bens says, you shouldn't use the term 'Raw' as this implies a method of storing unprocessed data coming off the image sensor of a camera. The term is widely misused to denote 'source' files - which in your case comes from a screen-recording type scenario so there is no 'raw' image data.

Ann Bens

Community Expert

RAW footage is something entirely different.

Unfortunately H.264 will never give you lossless quality.

Smart rendering in Premiere Pro

Mike Dziennik

Community Expert

H.264 is pretty much always going to give you this issue, even at high bit rates as it will be creating new keyframes in different places from the source.

You might want to take a look at Shutter Encoder and use the 'Cut without re-encoding' function. It will only let you cut on keyframes so it might not trim to exactly the frame you choose but it won't do any re-encoding so it will be fast.
