How to bake a clipping edge

  • October 8, 2023
  • 1 reply
  • 186 views

Hi!



Since I couldn't find an answer anywhere, I thought I would ask it here. I've seen it on multiple 3D models but can't make it work in Substance Painter. Is there a way to bake a clipping edge like this? :

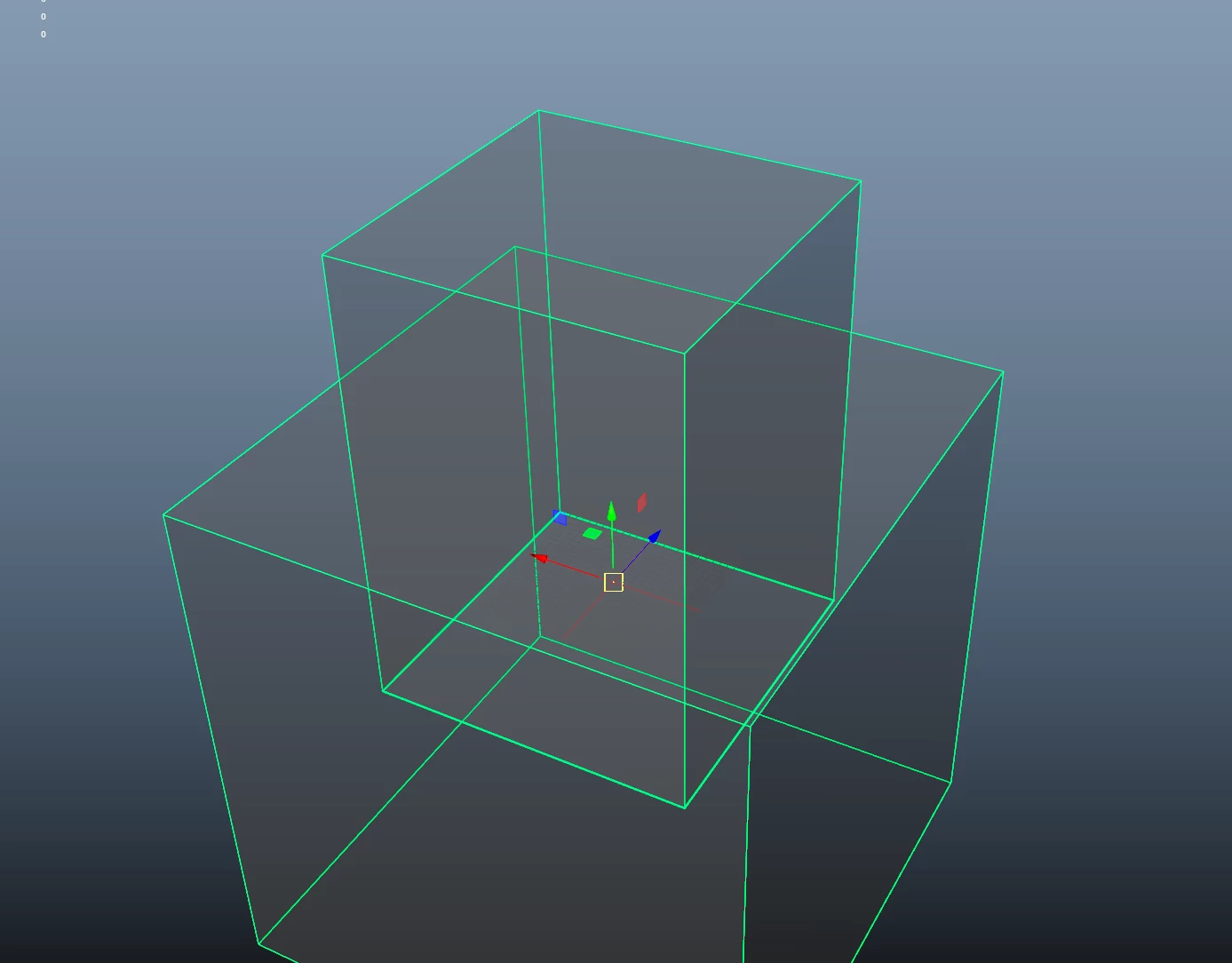

In Maya:

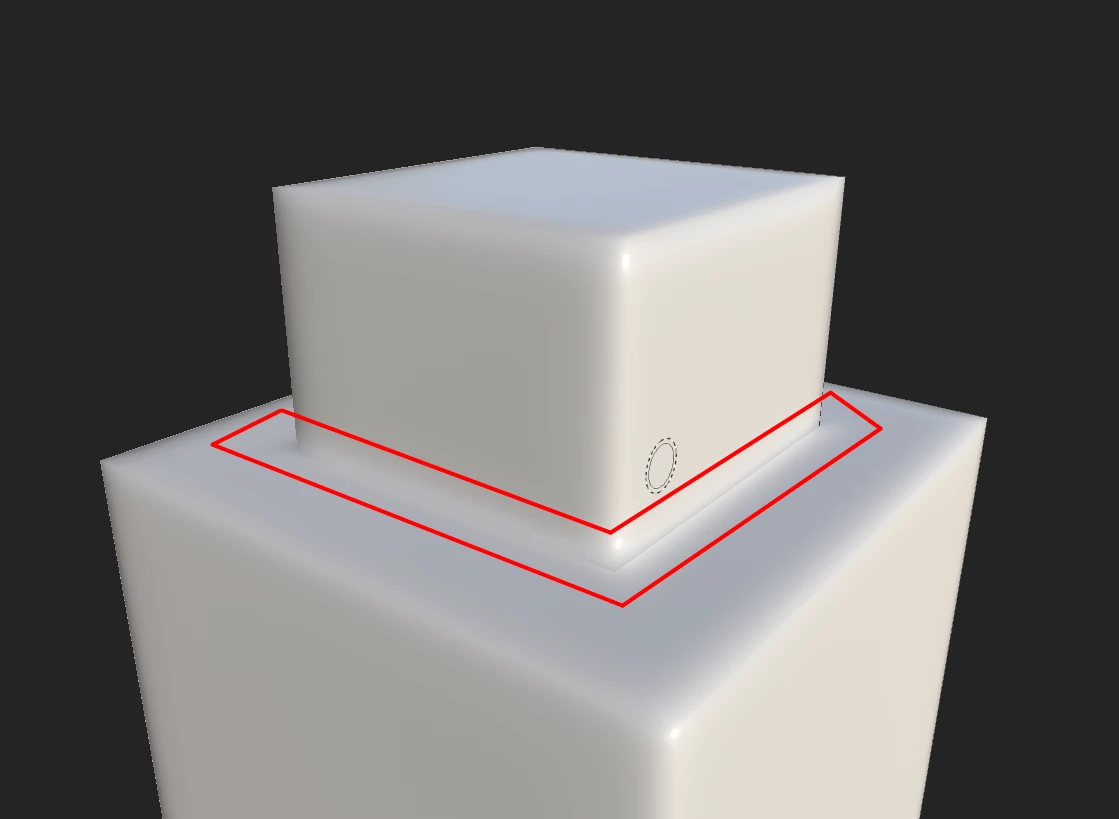

In Substance Painter:

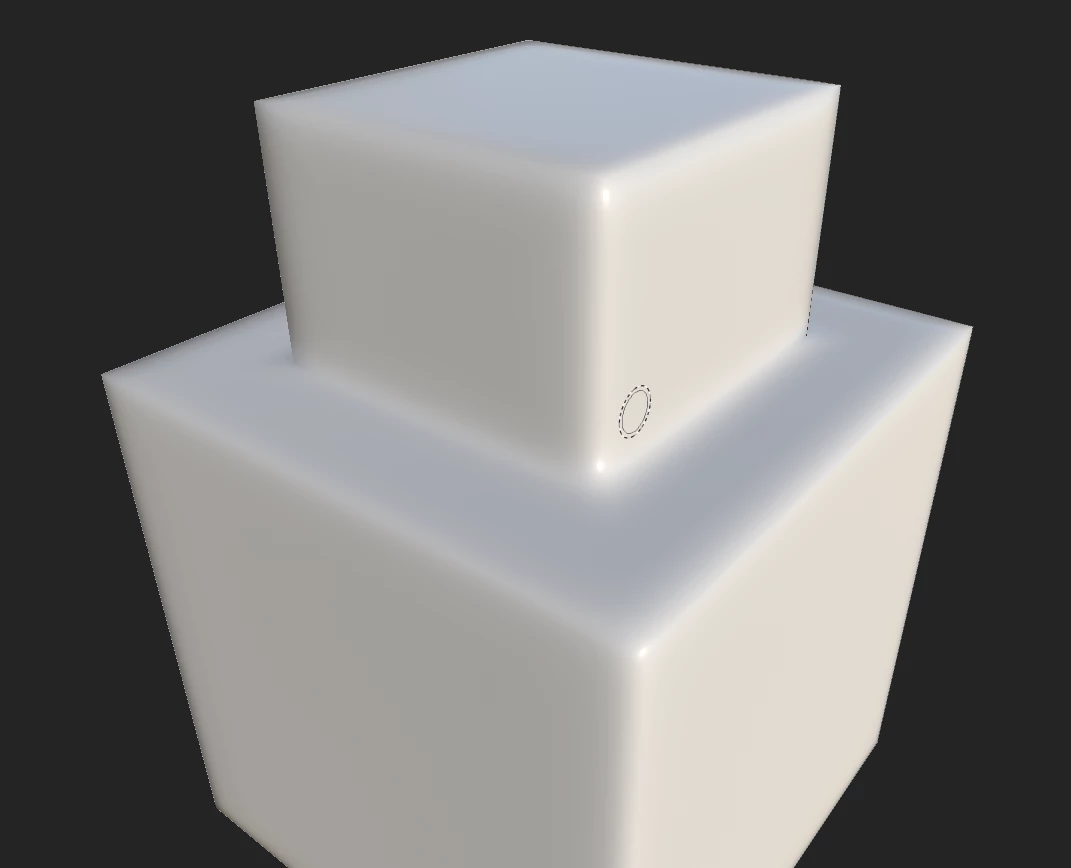

As you can see, the normal is not correct. It should look like this:

















This topic has been closed for replies.

1 reply

Cyril Dellenbach
Community Manager
Cyril DellenbachCommunity Manager
Community Manager
October 9, 2023

Hello @tvtomas,



Considering these are still two different meshes, it can be hard to totally get rid of the seam with such a normal. You can try to make a Bake matching by name, and see if this helps.



Best regards,



Cyril Dellenbach (Micro) | QA Support Artist | Adobe
T
tvtomasAuthor
Participant
October 9, 2023

Hi Cyril!



The bake was matched by name. I looked at a few other examples again and noticed something. Could it be possible that baking clipping edges only works on lower angles? In my example it's a 90° angle. I tried baking a 45° angle and it worked without any problems.
