Custom Models rendering with weird grey fog?

  • June 22, 2022
  • 3 replies
  • 1031 views

I'm mocking up some product models using some custom models provided by our third party printers, and most of the time, the files seem to have trouble. I'm applying shrink-wrap labels, which have been mapped onto the model by our print service. Sometimes, when trying to render or preview the render, the object shows fully white with my applied label barely even visible. Sometimes, throwing a standard model plane (or several) into the scene allows the file to re-load and will show the label. I don't know what that's about, but throwing in standard models so far has let me continue to work around that.

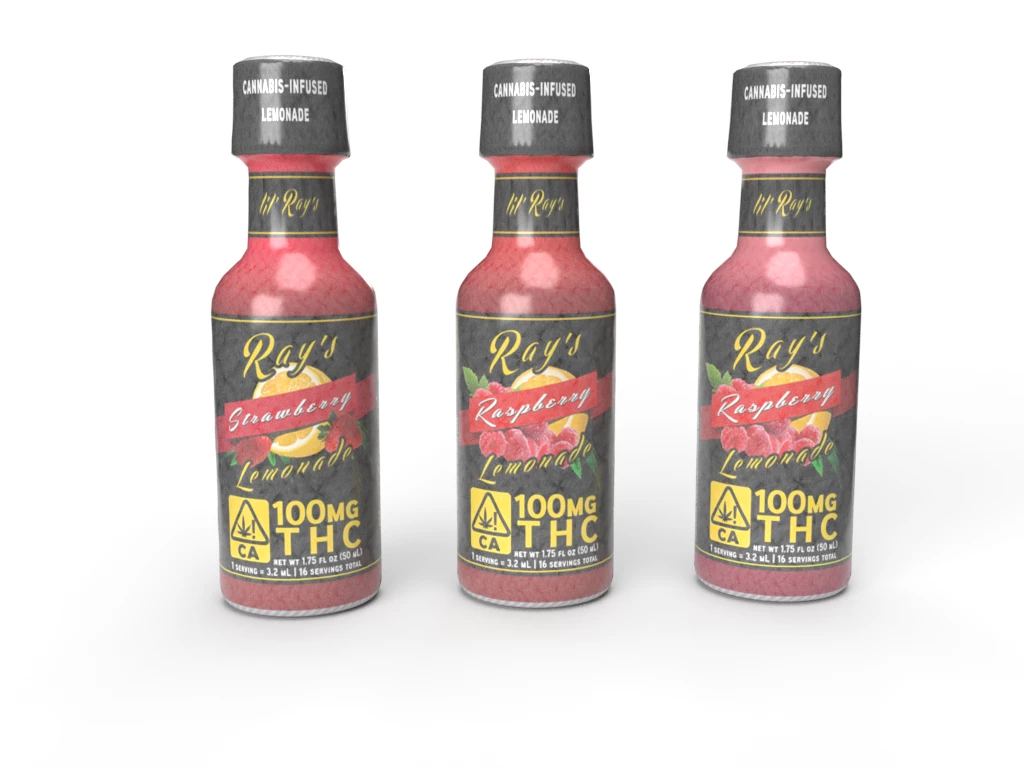

I'm also having trouble with a strange grey or pixelation coating the models. It's visible only in the render preview and the render. If I turn off render preview, the models look fine. (I only mention this because when the model turns almost fully white, that is visible whether render preview is turned on or not.) This is the issue I haven't been able to get around.



I've been able to make crisp, clear renders of these models before. What am I getting wrong? I'm not sure what could be causing it.

    This topic has been closed for replies.
    Correct answer davescm

    Hi

    Thanks for the tag Graham.

    Without seeing the models and textures we are guessing a little. Some things to check though.

    1. Is there a single surface at each location in 3D space? If a label and bottle are modelled separately and placed in the same exact location then path tracing will look strange as it will get conflicts when it hits those locations. The way to avoid that is to adjust the scale and location of the label so it is separate to the bottle.

    2. If the label is not a separate model but is just mapped onto the surface texture then :

    a. Make sure the label is mapped onto all relevant channels and not just Base Color. For example you don't want translucency in the label area.

    b. Make sure the UV islands are not overlapped in the way the bottle is unwrapped. That would result in the same path tracing errors that overlapping models create.



    If you want to PM me a link to the problem file, I'll take a look at it.



    Dave

    3 replies

    davescm
    Community Expert
    davescmCommunity ExpertCorrect answer
    Community Expert
    June 25, 2022

    Hi

    Thanks for the tag Graham.

    Without seeing the models and textures we are guessing a little. Some things to check though.

    1. Is there a single surface at each location in 3D space? If a label and bottle are modelled separately and placed in the same exact location then path tracing will look strange as it will get conflicts when it hits those locations. The way to avoid that is to adjust the scale and location of the label so it is separate to the bottle.

    2. If the label is not a separate model but is just mapped onto the surface texture then :

    a. Make sure the label is mapped onto all relevant channels and not just Base Color. For example you don't want translucency in the label area.

    b. Make sure the UV islands are not overlapped in the way the bottle is unwrapped. That would result in the same path tracing errors that overlapping models create.



    If you want to PM me a link to the problem file, I'll take a look at it.



    Dave

    M
    melissamnkAuthor
    Participant
    August 31, 2022

    Hello davescm,



    Number 1 is absolutely the issue! The model is made of several separate parts and it seems they do overlap. I adjusted the model to avoid the conflicts and the grey fog is gone! Thank you so much.

      davescm
      Community Expert
      davescmCommunity Expert
      Community Expert
      August 31, 2022

      You're welcome 🙂

      Dave

      Ussnorway7605025
      Ussnorway7605025
      Legend
      June 24, 2022

      so we have a bottle made of glass, a label + another model covering it all that set to plastic?



      the white noise will be transparence which Adobe can't rendor correct now they moved to metal drivers... you could try to counter it with different box lighting [like using a photo of a table instead of basic white] but ime Blender is the better tool for these types of product shots



      @davescmmay have more ideas

      Ussnorway7605025
      Ussnorway7605025
      Legend
      June 22, 2022

      the gray look is noise... i would try change the bottle material

      the squares are shadow from rendor of an object = normally this happens when a model is hidden but still in the scene and the fix is to remove them

        M
        melissamnkAuthor
        Participant
        June 23, 2022

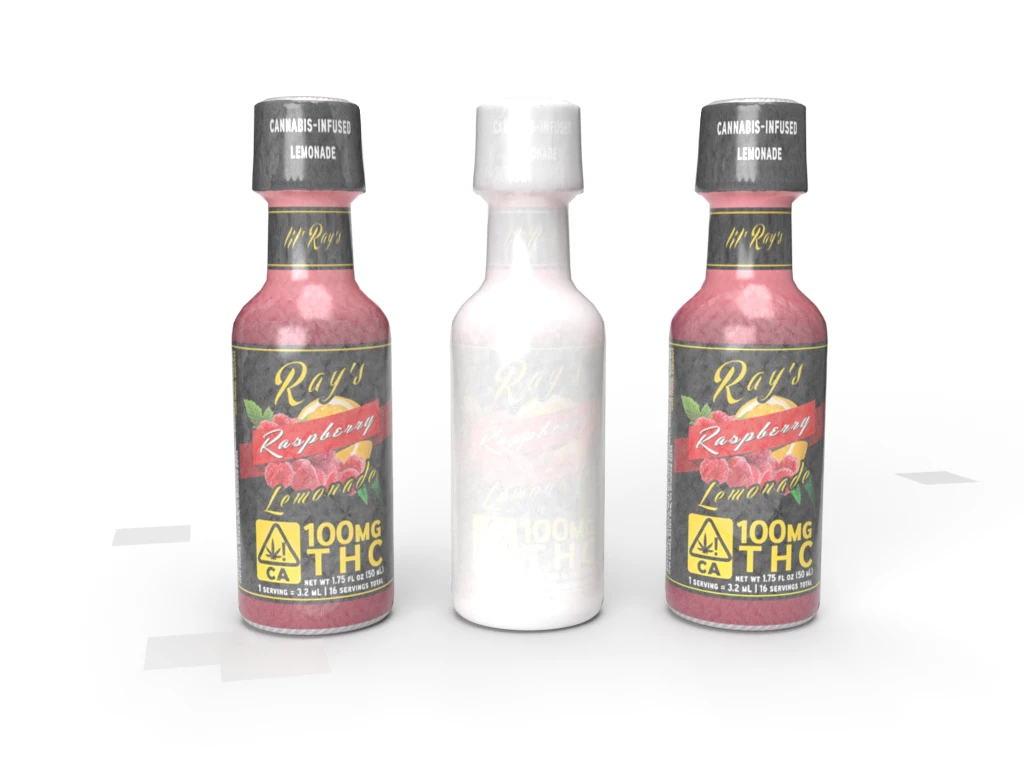

        The squares on the "floor" in the second image are actually the plane models I was throwing in there to get an example of the white bottle error. The main thing I'm showing in the second image is that the model has ghosted white over top of my label.
